| Place of Origin: | Guangdong,China |
| Brand Name: | Goodyear |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1B5-800 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber And Stainless Steel | Goodyear: | 1B5-800 |
|---|---|---|---|
| Warranty: | 12 Months | Weight: | 1.0 Kg |
| Other Name: | Air Suspension | Pressure Ability: | 2-8 M Pa |
| High Light: | convoluted air spring,air suspension parts |
||

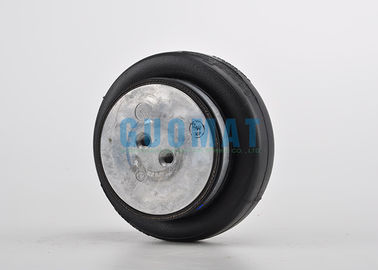

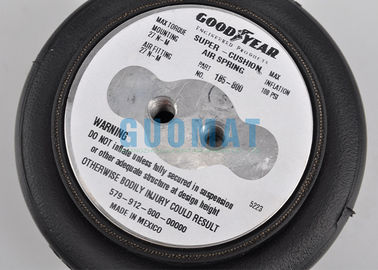

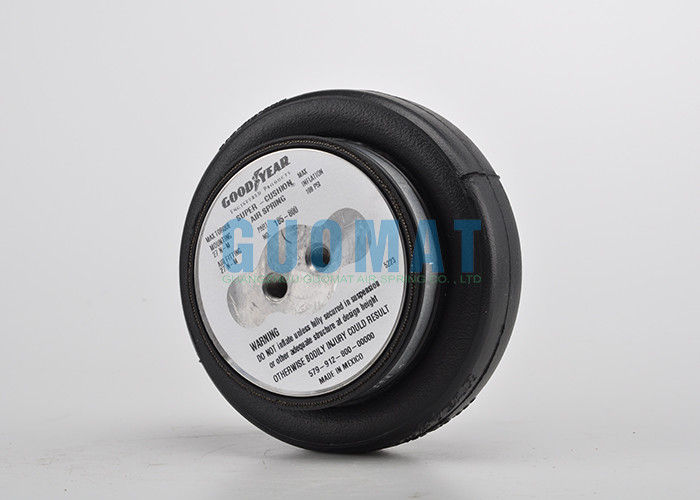

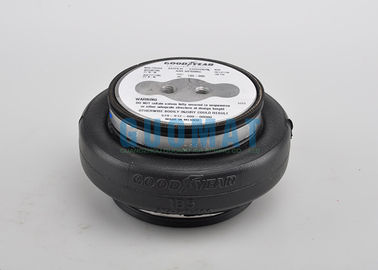

1B5-800 Made In Mexico Goodyear Original Single Air Spring For Reducing Tremor
OEM Original Manufacturer:
Goodyear Original:1B5-800
UPPER RETAINER
ASC-92-8-280
LOWER RETAINER
ASC-92-6-081
FLEXIBLE MEMBE R
579-91-3-500
50.8mm USABL E STROKE
(ACTUATOR APPLICATIONS)
69.9mm
NOMINAL DESIGN HT
( ISOLATOR APPLICAT IONS )
96.5mm MAX EXTENDED HT
45.7mm METAL-TO-METAL HT
NOTES :
1.CENTERLINES OF MOUNTING HOL E AND AIR FITTING OF UPPER RETAINER AND MOUNT ING
HOLES OF LOWER RETAINER ALIGNED WITHIN +/· 2"
2.DO NOT INFLATE UNLESS FULLY SECURED IN THE
SUSPENSION OR OTHER ADEQUATE
STRUCTUR E
AT DESIGN HEIGHT .
DO NOT INFLATE TO MORE THAN 6.9 bar WITHOUT GOODYEAR APPROVAL.
PRESSURE NOT TO EXCEED 11 bar UNDER ANY
CONDITION.
3. USABLE STROKE STARTS AT MINIMUM HEIGHT,
4. ASSEMLBY TO BE SUPPORTED TOP AND BOTTOM BY MINIMUM 95mm DIA PLATE .
5. FASTENER
TORQUE AT INSTALLATION NOT TO EXCEED 27N-m.
in 2015, America Goodyear Corporation met with the transfer of shares in the North American plant, our company was granted with sale agent for air springs in China, providing more choice for our customers.
The usual below kinds of Goodyear air spring we have
| Goodyear Original | OEM NO. | Bellows NO. |
| Goodyear | 1B5-800 | (579-91-2-800) |
| Goodyear | 1B5-800 | (579-91-2-800) |
| Goodyear | 1B6-833 | (579-91-2-833) |
| Goodyear | 1B6-833 | (579-91-2-833) |
| Goodyear | 1B8-850 | (579-91-2-850) |
| Goodyear | 1B8-850 | (579-91-2-850) |
| Goodyear | 1B12-318 | (579-91-2-318) |
| Goodyear | 1B12-318 | (579-91-2-318) |
| Goodyear | 1B5-500 | |
| Goodyear | 1B5-502 | |
| Goodyear | 1B5-503 | |
| Goodyear | 1B5-510 | |
| Goodyear | 1B5-512 | |
| Goodyear | 1B12-313 | |
| Goodyear | 1B12-301 | |
| Goodyear | 1B12-304 | |
| Goodyear | 1B12-305 | |
| Goodyear | 2B9-223 | |
| Goodyear | 2B12-343 | |
| Goodyear | 2B9-200 |
The drawing of Goodyear 1B5-800 and Parameter curve
The drawing of Goodyear agent products For GUOMAT.pdf
