| Place of Origin: | Guangdong,China |
| Brand Name: | Goodyear |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1B12-318 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber And Stainless Steel | Goodyear: | 1B12-318 |
|---|---|---|---|
| Warranty: | 12 Months | Weight: | 6.0 Kg |
| Other Name: | Air Suspension | Pressure Ability: | 2-8 M Pa |
| High Light: | convoluted air spring,air suspension parts |
||

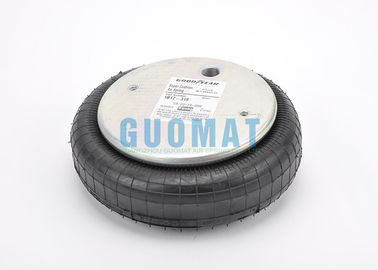

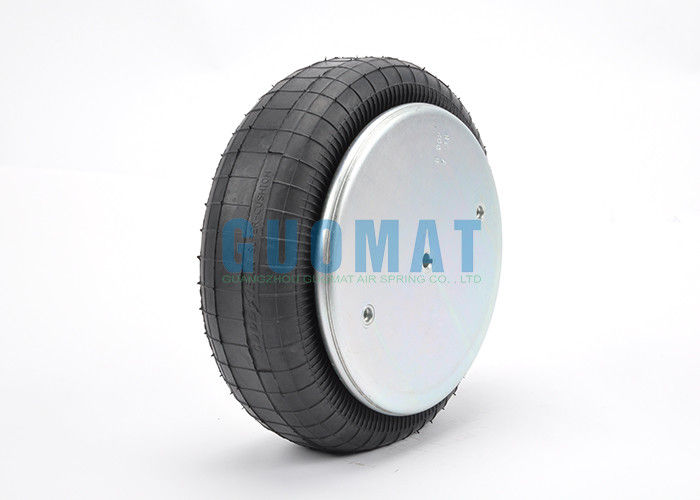

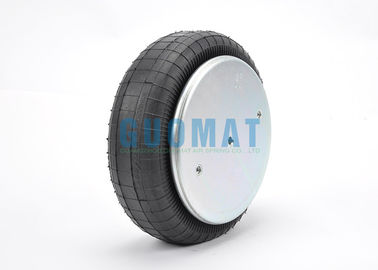

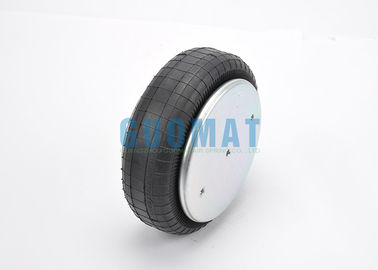

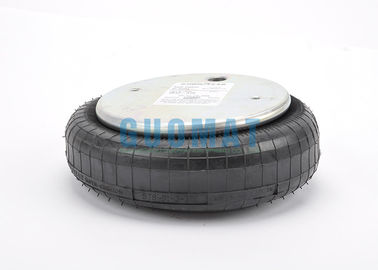

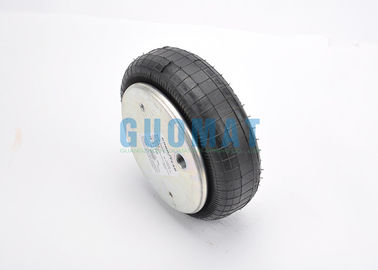

1B12-318 Made In Mexico Goodyear Original Big Single Industrial Air Spring
OEM Original Manufacturer:1B12-318
Goodyear Original:1B12-318
Fortunately, we have the opportunity to become one of the world's three major brands of Goodyear China regional agents, for the world's three major brand product quality we are affirmed. They are also our example has been learning in China, we are also trying to do their own brand of air spring product quality. Because we are Goodyear agents, and therefore also give customers more choices.
| Maximum diameter @ 7 bar (mm) | Bead type |
| 328 | 3 |
| Maximum height (mm) | dim. A (Blind Hole Center) (mm) |
| 140 | 158 |
| Maximum travel (mm) | dim. B (mm) |
| 89 | 73 |
| Minimum available height (mm) | Air isolator |
| 51 | Design height (mm) |
| Force at 25 mm travel in kN @ 5 Bar | 127 |
| 27.1 | Load (at design height): 3 Bar (kN) |
| KN force in units of 5 bar in 50% of the maximum stroke | 10.3 |
| 24.8 | Load (at design height): 5 Bar (kN) |
| KN force at a maximum stroke of 5 Bar | 17.8 |
| 13.7 | Load (at design height): 7 Bar (kN) |
| Style cross-reference extended height (similar end cap) style number | 25.4 |
| 19-.75 | Natural frequency (@ 5 Bar) (fn (Hz) |
| material | 2.5 |
| 2 layer standard line | Isolation percentage at a forced frequency of 7 Hz |
| Finishing details | 85.6 |
| Isolation percentage at a forced frequency of 13 Hz | |
| 96.8 |
The usual below kinds of Goodyear air spring we have:
| GUOMAT Number | Assembly Number | Max OD @100 PSIG (Inches) | Design Load Range (pounds) | Design Height Range (Inches) | Usable Stroke (Inches) | Min Comp Height (Inches) | Max Ext Height (Inches) | Bumper Included | Approximate Isolation Percent | Air Fitting Size (Inches) | |||
| For a Distributing Frequency Of: | |||||||||||||
| 435 CPM | 870 CPM | 1160 CPM | 1750 CPM | ||||||||||
| 1B12 301 | 1B12-301 | 13.2 | 1,350 - 8,800 | 3.0 - 5.0 | 4.6 | 2.6 | 7.2 | YES | 89 | 97 | 98 | 99 | 1/4 OS |
| 1B12 304 | 1B12-304 | 13.2 | 1,350 - 8,800 | 3.0 - 5.0 | 4.9 | 2.3 | 7.2 | NO | 89 | 97 | 98 | 99 | 3/4 OS |
| 1B12 305 | 1B12-305 | 13.2 | 1,350 - 8,800 | 3.0 - 5.0 | 4.6 | 2.6 | 7.2 | YES | 89 | 97 | 98 | 99 | 3/4 OS |
| 1B12 313 | 1B12-313 | 13.2 | 1,350 - 8,800 | 3.0 - 5.0 | 4.9 | 2.3 | 7.2 | NO | 89 | 97 | 98 | 99 | 1/4 OS |
| 1B14 350 | 1B14-350 | 15.2 | 1,900 - 11,900 | 4.0 - 5.25 | 4.9 | 2.3 | 7.2 | NO | 86 | 96 | 98 | 99 | 1/4 OS |
| 1B14 351 | 1B14-351 | 15.2 | 1,900 - 11,900 | 4.0 - 5.25 | 3 | 4.2 | 7.2 | YES | 86 | 96 | 98 | 99 | 1/4 OS |
| 1B14 352 | 1B14-352 | 15.2 | 1,900 - 11,900 | 4.0 - 5.25 | 4.9 | 2.3 | 7.2 | NO | 86 | 96 | 98 | 99 | 3/4 OS |
| 1B14 353 | 1B14-353 | 15.2 | 1,900 - 11,900 | 4.0 - 5.25 | 3 | 4.2 | 7.2 | YES | 86 | 96 | 98 | 99 | 3/4 OS |
| 1B14 362 | 1B14-362 | 15.9 | 2,200 - 13,500 | 3.25 - 5.25 | 6 | 2.3 | 8.3 | NO | 87 | 97 | 98 | 99 | 3/4 OS |
| 1B14 64 | 1B14-364 | 15.9 | 2,200 - 13,500 | 3.25 - 5.25 | 6 | 2.3 | 8.3 | NO | 87 | 97 | 98 | 99 | 1/4 OS |
| 1B15 375 | 1B15-375 | 17.5 | 2,200 - 13,700 | 4.4 - 5.4 | 5.6 | 2.3 | 7.9 | NO | 91 | 97 | 98 | 99 | 1/4 OS |
| 1B15 376 | 1B15-376 | 17.5 | 2,200 - 13,700 | 4.4 - 5.4 | 3.7 | 4.2 | 7.9 | YES | 91 | 97 | 98 | 99 | 1/4 OS |
| 1B15 377 | 1B15-377 | 17.5 | 2,200 - 13,700 | 4.4 - 5.4 | 5.6 | 2.3 | 7.9 | NO | 91 | 97 | 98 | 99 | 3/4 OS |
| 1B15 378 | 1B15-378 | 17.5 | 2,200 - 13,700 | 4.4 - 5.4 | 3.7 | 4.2 | 7.9 | YES | 91 | 97 | 98 | 99 | 3/4 OS |
| 1B5 500 | 1B5-500 | 5.7 | 210 - 1,350 | 2.5 - 3.0 | 2 | 1.8 | 3.8 | NO | 72 | 94 | 96 | 98 | 1/4 C |
| 1B5 502 | 1B5-502 | 5.7 | 210 - 1,350 | 2.5 - 3.0 | 2 | 1.8 | 3.8 | NO | 72 | 94 | 96 | 98 | 3/4 C |
| 1B5 503 | 1B5-503 | 5.7 | 210 - 1,350 | 2.5 - 3.0 | 2 | 1.8 | 3.8 | NO | 72 | 94 | 96 | 98 | 1/4 TV |
| 1B5 510 | 1B5-510 | 6 | 190 - 1,500 | 2.5 - 4.0 | 3 | 1.8 | 4.8 | NO | 82 | 96 | 97 | 99 | 1/4 C |
| 1B5 512 | 1B5-512 | 6 | 190 - 1,500 | 2.5 - 4.0 | 3 | 1.8 | 4.8 | NO | 82 | 96 | 97 | 99 | 3/4 C |
| 1B5 520* | 1B5-520* | 6.5 | 190 - 1,500 | 3.5 - 5.0 | 3.0* | 1.8 | 5.8 | NO | 83 | 96 | 97 | 99 | 1/4 C |
| 1B5 521* | 1B5-521* | 6.5 | 190 - 1,500 | 3.5 - 5.0 | 3.0* | 1.8 | 5.8 | NO | 83 | 96 | 97 | 99 | 3/4 C |
| 1B6 530 | 1B6-530 | 6.5 | 280 - 1,900 | 3.0 - 4.0 | 2.8 | 2 | 4.8 | NO | 78 | 95 | 97 | 98 | 1/4 C |
| 1B6 531 | 1B6-531 | 6.5 | 280 - 1,900 | 3.0 - 4.0 | 2.8 | 2 | 4.8 | NO | 78 | 95 | 97 | 98 | 1/4 OS |
| 1B6 532 | 1B6-532 | 6.5 | 280 - 1,900 | 3.0 - 4.0 | 2.5 | 2.3 | 4.8 | YES | 78 | 95 | 97 | 98 | 1/4 OS |
| 1B6 535 | 1B6-535 | 7 | 250 - 2,200 | 4.0 - 6.0 | 3.4* | 2 | 7.1 | NO | 90 | 97 | 98 | 99 | 1/4 C |
| 1B6 536* | 1B6-536* | 7 | 250 - 2,200 | 4.0 - 6.0 | 3.4* | 2 | 7.1 | NO | 90 | 97 | 98 | 99 | 1/4 OS |
| 1B6 538* | 1B6-538* | 7 | 250 - 2,200 | 4.0 - 6.0 | 3.4* to 3.1* | 2.3 | 7.1 | YES | 90 | 97 | 98 | 99 | 1/4 OS |
| 1B7 540 | 1B7-540 | 7.7 | 140 - 2,200 | 3.5 - 4.5 | 3.2 | 2 | 5.2 | NO | 83 | 96 | 97 | 99 | 1/4 C |
| 1B7 541 | 1B7-541 | 7.7 | 140 - 2,200 | 3.5 - 4.5 | 3.2 | 2 | 5.2 | NO | 83 | 96 | 97 | 99 | 1/4 OS |
| 1B7 542 | 1B7-542 | 7.7 | 140 - 2,200 | 3.5 - 4.5 | 2.9 | 2.3 | 5.2 | YES | 83 | 96 | 97 | 99 | 1/4 OS |
| 1B8 550 | 1B8-550 | 8.7 | 320 - 2,900 | 3.75 - 4.75 | 3.3 | 2 | 5.3 | NO | 83 | 96 | 97 | 99 | 1/4 C |
| 1B8 552 | 1B8-552 | 8.7 | 320 - 2,900 | 3.75 - 4.75 | 3.3 | 2 | 5.3 | NO | 83 | 96 | 97 | 99 | 3/4 C |
| 1B8 553 | 1B8-553 | 8.7 | 320 - 2,900 | 3.75 - 4.75 | 3.3 | 2 | 5.3 | NO | 83 | 96 | 97 | 99 | 1/4 OS |
| 1B8 554 | 1B8-554 | 8.7 | 320 - 2,900 | 3.75 - 4.75 | 3 | 2.3 | 5.3 | YES | 83 | 96 | 97 | 99 | 1/4 OS |
| 1B8 560* | 1B8-560* | 9.4 | 180 - 3,300 | 4.0 - 6.5 | 3.2* | 2 | 6.7 | NO | 85 | 96 | 97 | 99 | 1/4 C |
| 1B8 562* | 1B8-562* | 9.4 | 180 - 3,300 | 4.0 - 6.5 | 3.2* | 2 | 6.7 | NO | 85 | 96 | 97 | 99 | 3/4 C |
| 1B8 563* | 1B8-563* | 9.4 | 180 - 3,300 | 4.0 - 6.5 | 3.2* | 2 | 6.7 | NO | 85 | 96 | 97 | 99 | 1/4 OS |
| 1B8 564* | 1B8-564* | 9.4 | 180 - 3,300 | 4.0 - 6.5 | 3.2* to 2.9* | 2.3 | 6.7 | YES | 85 | 96 | 97 | 99 | 1/4 OS |
| 1B9 201 | 1B9-201 | 11 | 640 - 3,900 | 4.5 - 5.0 | 2.7 | 3.2 | 5.9 | YES | 84 | 96 | 97 | 99 | 1/4 OS |
| 1B9 202 | 1B9-202 | 11 | 640 - 3,900 | 4.5 - 5.0 | 3.6 | 2.3 | 5.9 | NO | 84 | 96 | 97 | 99 | 1/4 OS |
| 1B9 204 | 1B9-204 | 11 | 640 - 3,900 | 4.5 - 5.0 | 3.6 | 2.3 | 5.9 | NO | 84 | 96 | 97 | 99 | 1/2 OS |
| 1B9 205 | 1B9-205 | 11 | 640 - 3,900 | 4.5 - 5.0 | 2.7 | 3.2 | 5.9 | YES | 84 | 96 | 97 | 99 | 1/2 OS |
| 1B9 207 | 1B9-207 | 11 | 640 - 3,900 | 4.5 - 5.0 | 3.6 | 2.3 | 5.9 | NO | 84 | 96 | 97 | 99 | 3/4 OS |
| 1B9 208 | 1B9-208 | 11 | 640 - 3,900 | 4.5 - 5.0 | 2.7 | 3.2 | 5.9 | YES | 84 | 96 | 97 | 99 | 3/4 OS |

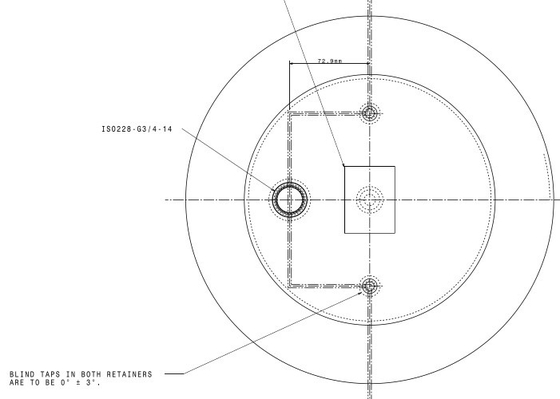

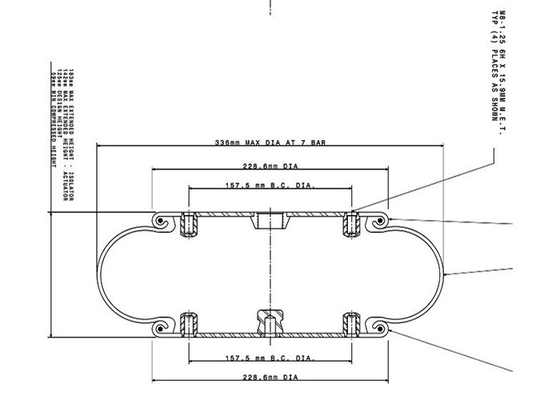

The drawing of Goodyear 1B12-318 and Parameter curve
The drawing of Goodyear agent products For GUOMAT.pdf
