| Place of Origin: | Guangdong,China |
| Brand Name: | Goodyear |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B8-850 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Stainless Steel &Natural Rubber | Goodyear: | 2B8-850 |
|---|---|---|---|
| Warranty: | 12 Months | Weight: | 5.0 Kg |
| Other Name: | Air Suspension | Pressure Ability: | 0.2-0.8 M Pa |
| Max OD: | 223.5 Mm | Design Height Range: | 178mm-203mm |
| Air Fitting Size: | 1/4 C | ||
| High Light: | convoluted air spring,air helper springs |
||

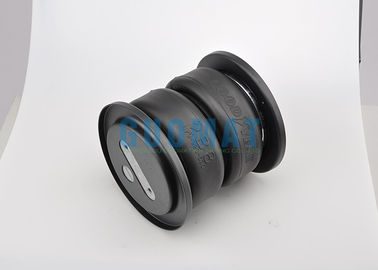

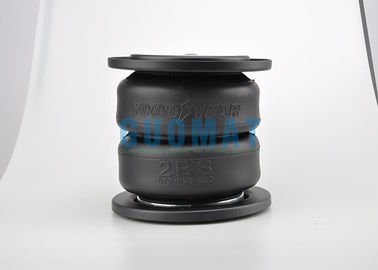

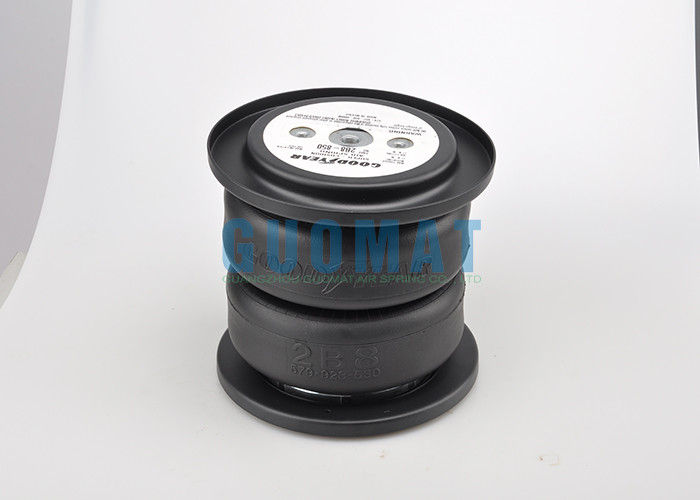

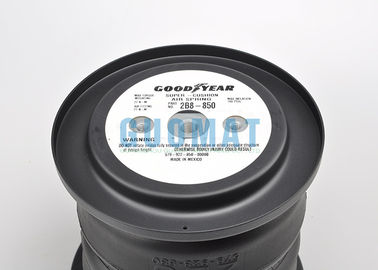

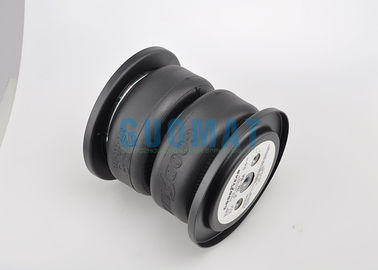

Industrial Air Spring Goodyear 2B8-850 Double Layer Made In Mexico
OEM Original Manufacturer:
Goodyear Original: 2B8-850
in 2015, America Goodyear Corporation met with the transfer of shares in the North American plant, our company was granted with sale agent for air springs in China, providing more choice for our customers.
| Maximum Diameter @ 7 Bar (mm) | Goodyear 2B8-850 ISOLATOR |
| 218 | Design Height (mm) |
| Maximum Height (mm) | 203 |
| 76 | Load (at Design Height) at: 3 Bar (kN) |
| Maximum Stroke (mm) | 3.8 |
| 145 | Load (at Design Height) at: 5 Bar (kN) |
| Minimum Usable Height (mm) | 6.6 |
| 221 | Load (at Design Height) at: 7 Bar (kN) |
| Force in kN @ 5 Bar at Stroke of 25 mm | 9.4 |
| 10.9 | Natural Frequency (@5 Bar)(fn(Hz) |
| Force in kN @ 5 Bar at Stroke of 50% of Max Stroke | 1.9 |
| 9.1 | % of Isolation at Forced Frequency 7 Hz |
| Force in kN @ 5 Bar at Stroke of Maximum Stroke | 92.1 |
| 5.7 | % of Isolation at Forced Frequency 13 Hz |
| Material | 98.2 |
| 2-Ply Standard Cord | % of Isolation at Forced Frequency 25 Hz |
| END CLOSURE DETAILS | 99.5 |
| Bead plate Type | Dim. A (Blind Nut Centers) (mm) |
| 1 | 70 |
The usual below kinds of Goodyear air spring we have
| Assembly Number | Max OD @100 PSIG (Inches) | Design Load Range (pounds) | Design Height Range (Inches) | Usable Stroke (Inches) | Min Comp Height (Inches) | Max Ext Height (Inches) | Bumper Included | Approximate Isolation Percent | Air Fitting Size (Inches) | |||
| For a Distributing Frequency Of: | ||||||||||||
| 435 CPM | 870 CPM | 1160 CPM | 1750 CPM | |||||||||
| 2B8-550 | 8.8 | 440 - 2,700 | 7.0 - 8.0 | 7.2 | 2.9 | 10.1 | NO | 93 | 97 | 98 | 99 | 1/4 C |
| 2B8-552 | 8.8 | 440 - 2,700 | 7.0 - 8.0 | 7.2 | 2.9 | 10.1 | NO | 93 | 97 | 98 | 99 | 3/4 C |
| 2B8-553 | 8.8 | 440 - 2,700 | 7.0 - 8.0 | 7.2 | 2.9 | 10.1 | NO | 93 | 97 | 98 | 99 | 1/4 OS |
| 2B8-554 | 8.8 | 440 - 2,700 | 7.0 - 8.0 | 6.6 | 3.5 | 10.1 | YES | 93 | 97 | 98 | 99 | 1/4 OS |
| 2B9-200 | 10.3 | 340 - 3,700 | 8.0 - 9.0 | 7.6 | 3.2 | 10.8 | NO | 92 | 97 | 98 | 99 | 1/4 OS |
| 2B9-201 | 10.3 | 340 - 3,700 | 8.0 - 9.0 | 7 | 3.8 | 10.8 | YES | 92 | 97 | 98 | 99 | 1/4 OS |
| 2B9-204 | 10.3 | 340 - 3,700 | 8.0 - 9.0 | 7.6 | 3.2 | 10.8 | NO | 92 | 97 | 98 | 99 | 1/2 OS |
| 2B9-205 | 10.3 | 340 - 3,700 | 8.0 - 9.0 | 7 | 3.8 | 10.8 | YES | 92 | 97 | 98 | 99 | 1/2 OS |
| 2B9-208 | 10.3 | 340 - 3,700 | 8.0 - 9.0 | 7 | 3.8 | 10.8 | YES | 92 | 97 | 98 | 99 | 3/4 OS |
| 2B9-216 | 10.3 | 340 - 3,700 | 8.0 - 9.0 | 7.6 | 3.2 | 10.8 | NO | 92 | 97 | 98 | 99 | 3/4 OS |
| 2B9-250 | 10.3 | 540 - 3,800 | 8.0 - 9.0 | 8.7 | 3.5 | 12.2 | NO | 93 | 98 | 99 | 99 | 1/4 OS |
| 2B9-251 | 10.3 | 540 - 3,800 | 8.0 - 9.0 | 8.4 | 3.8 | 12.2 | YES | 93 | 98 | 99 | 99 | 1/4 OS |
| 2B9-253 | 10.3 | 540 - 3,800 | 8.0 - 9.0 | 8.4 | 3.8 | 12.2 | YES | 93 | 98 | 99 | 99 | 1/4 OS |
| 2B9-255 | 10.3 | 540 - 3,800 | 8.0 - 9.0 | 8.4 | 3.8 | 12.2 | YES | 93 | 98 | 99 | 99 | 1/4 OS |
| 2B9-256 | 10.3 | 540 - 3,800 | 8.0 - 9.0 | 8.7 | 3.5 | 12.2 | NO | 93 | 98 | 99 | 99 | 1/4 OS |
| 2B9-263 | 10.3 | 540 - 3,800 | 8.0 - 9.0 | 8.7 | 3.5 | 12.2 | NO | 93 | 98 | 99 | 99 | 1/2 OS |
| 2B9-275 | 10.3 | 540 - 3,800 | 8.0 - 9.0 | 8.7 | 3.5 | 12.2 | NO | 93 | 98 | 99 | 99 | 3/4 OS |
2B8-850 Goodyear Cross OEM
Firestone:W01-M58-6353
Firestone:W01 M58 6353
Firestone:W01M586353
Conti Tech:FD 120-20 CI G 1/4
Conti Tech:FD120-20 CI G 1/4
Goodyear 2B8-850;2B8 850;2B8850

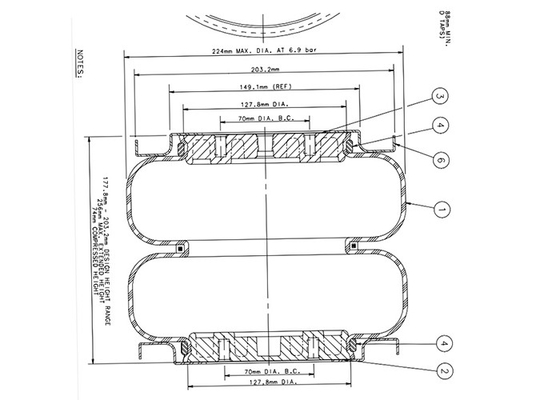

The drawing of Goodyear 2B8-850 and Parameter curve
The drawing of Goodyear agent products For GUOMAT.pdf
