Goodyear Air Spring 1B14-351 Single Convoluted Type Air Bellow FS 530-14 447 Contitech

Goodyear Air Spring 1B14-351 Single Convoluted Type Air Bellow FS 530-14 447 Contitech

  • Goodyear Air Spring 1B14-351 Single Convoluted Type Air Bellow FS 530-14 447 Contitech
  • Goodyear Air Spring 1B14-351 Single Convoluted Type Air Bellow FS 530-14 447 Contitech
  • Goodyear Air Spring 1B14-351 Single Convoluted Type Air Bellow FS 530-14 447 Contitech
  • Goodyear Air Spring 1B14-351 Single Convoluted Type Air Bellow FS 530-14 447 Contitech
Goodyear Air Spring 1B14-351 Single Convoluted Type Air Bellow FS 530-14 447 Contitech
Product Details:
Place of Origin: GuangDong, China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 1B7104
Payment & Shipping Terms:
Minimum Order Quantity: 6PCS
Price: $49.9-59.9/pc
Packaging Details: Strong Carton Box Or As Customers Need
Delivery Time: 2-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Product Name: Air Suspension/Air Shock Absorber Spring Warranty: 12 Months
Function: Reduce Shock Convoluted: Single Convoluted Type
Goodyear: 1B14-351 Stroke: 4.2''-7.2''
Other Name: Suspension Air Spring Bellows: 578-91-3-351
Highlight:

Goodyear air spring single convoluted

,

Industrial air bellow FS 530-14

,

Contitech air spring with warranty

Goodyear Air Spring 1B14-351 Single Convoluted Type Air Bellow FS 530-14 447 Contitech
Goodyear Air Spring 1B14-351 Single Convoluted Type Air Bellow FS 530-14 447 Contitech
Product Description
Item Double Convoluted Air Spring
Item Number 1B7104
Place Of Origin Guangzhou, China
Material Rubber+Steel
Function Reduce Shock
Dimension OEM/Original Size
OEM Number/Cross Reference Number
  • Goodyear Part Number: 1B14-351
  • Goodyear Part Number: 1B 14-351
  • Goodyear Part Number: 1B14 351
  • Goodyear Rubber Number: 578913351
  • Goodyear Rubber Number: 578 91 3 351
  • Goodyear Rubber Number: 578-91-3-351
  • American Carrier Number: 8003007
  • Automann Number: ABSP1B34A-7104
  • ConTitech Number: 64525
  • ConTitech Number: FS530-14 447
  • ConTitech Number: FS 530-14 447
  • Firestone Number: 7105
  • Firestone Number: W01-358-7104
  • Firestone Number: W01 358 7104
  • Firestone Number: W013587104
  • Firestone Number: W01-358-7105
  • Firestone Number: W01 358 7105
  • Firestone Number: W013587105
  • Triangle Number: 4447
  • TRP Number: AS71050
  • Enidine Number: YI-1B14-351
  • Enidine Number: YI 1B14-351
Technical Data
Top Plate Hole/Stud Qty: 4
Top Plate Dia: 11.3''
Top Plate C to C Diameter: 6.25''
Bottom Plate Hole Stud Qyt: 4
Bottom Plate Dia: 11.3''
Bottom Plate C to C Diameter: 6.25''
Bumper: Yes
Min Height: 4.2''
Max Height: 7.2''
Order Number: W01-358-7105
Bellows #: 113
Assembly Weight: 16.1 lbs
Design Height: 4.5-5 inches
Minimum Jounce Height: 3.68 inches
Maximum Rebound Height: N/A inches
Loading Capacity at 20 psig: 1,942 lbsf
Loading Capacity at 60 psig: 5,826 lbsf
Loading Capacity at 90 psig: 8,739 lbsf
Natural Frequency: Hz
Maximum Diameter: 15.2 inches
Material Type: N/A
Operating Temperature: 30Cº to 70Cº
How to Identify an Air Spring
Firestone NO. Goodyear NO. Flex NO. Piston Top Plate Dia. Bottom Plate Dia. Collapsed Height
W01-358-7103 1B14-350 113B 6912 11.31 11.31 2.12
W01-358-7104 1B14-351 113B 3130 11.31 11.31 2.12
W01-358-7093 113B-5 3122 11.31 11.31 3.7
W01-358-7105 113B-5 3130 11.31 11.31 3.7
W01-358-7117 113B-1 3122 11.31 11.31 3.7
W01-358-7112 1B14-358 113B-1 3122 11.31 11.31 2.12
W01-358-7088 113B-1 3122 11.31 11.31 3.7
W01-358-7094 113B-1 3130 11.31 11.31 2.7
W01-358-7726 126B 3474 19.00 19.00 2.12
W01-358-7462 150B 3100 3.61 3.61 3.1
W01-358-8163 153B-2
W01-358-0510 16B 3459 4.5 4.5
W01-358-7001 1B15-500 16B 3025 4.5 4.5
W01-358-7011 1B12-304 19B
W01-358-6994 19B 3183 9 9 2.7
W01-358-7008 1B12-300 19B 3212 9 9 2.12
W01-358-7009 1B12-301 19B 3183 9 9 2.12
W01-358-7043 1B12-305 19B-75 7023 9 9 2.7

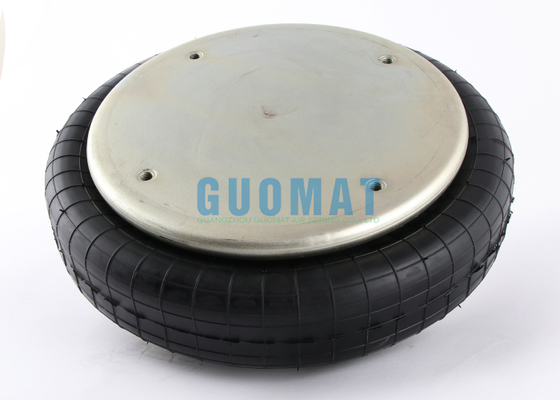

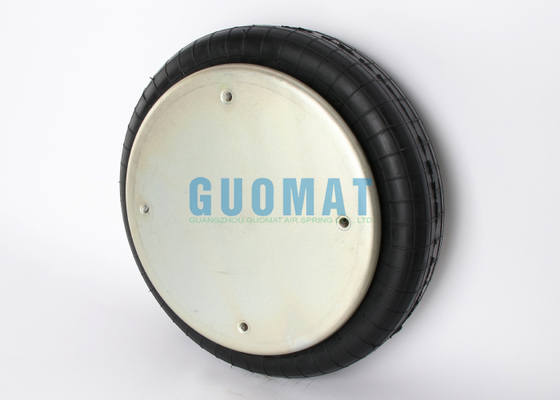

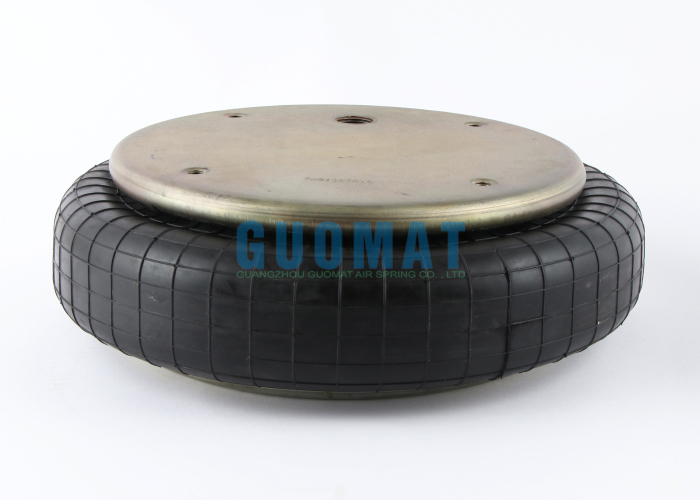

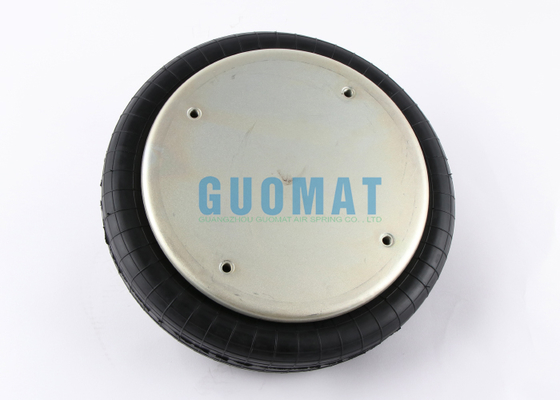

Product Picture
Goodyear Air Spring 1B14-351 Single Convoluted Type Air Bellow FS 530-14 447 Contitech 0 Goodyear Air Spring 1B14-351 Single Convoluted Type Air Bellow FS 530-14 447 Contitech 1
