Place of Origin: | Guangdong , China |
Brand Name: | GUOMAT |
Certification: | ISO/TS16949:2009 |
Model Number: | G1/4 |
Price: | Negotiable |
---|---|
Packaging Details: | Strong Carton Box or as Customer's Require |
Delivery Time: | 2 - 8 Work Days |
Payment Terms: | T/T, Western Union,Paypal and Others |
Supply Ability: | 10000 pcs / week |
Main Material: | Natural Rubber | Position: | Upper Plate |
---|---|---|---|
Other Names: | Air Spring Kits | Weight: | 0.1 Kg |
Car Make: | Audi | OEM: | G1/4 |
Model: | Air Inlet G1/4 | ||
Highlight: | air ride kits,rubber air bellows |

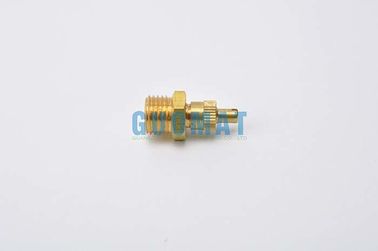

G1/4 Presta valve Residual Pressure Holding Valve For Industrial Air Spring
Specifications
G1/4
G = 55 ° cylindrical pipe thread code, 1/4 "= nominal thread diameter," is expressed in inches.
The thread parameters are as follows:
Thread diameter = 13.17 mm, thread diameter = 12.311 mm, thread diameter = 11.445 mm, 19 teeth per inch, pitch = 1.337 mm, thread angle = 55°
French valves (English: Presta valve, Sclaver and valve or French valve) are often referred to simply as French mouths and are mostly used on road bikes. Also this kind of valve can use in the air spring.
This type of valve consists of an externally threaded copper body, a valve screw that holds the valve, a valve cover, and a nut that fixes the valve on the rim.
The biggest feature of the French mouth is just the opposite of the American mouth, and its air core cannot be removed. However, some pistols can have their cores. The purpose is to inject inner tube repairing agents. However, the number of such rare French mouths is rather rare. For different applications, the length of the brass body will change; its 6mm aperture is also smaller than the American mouth (the body mouth of the American mouth is 8mm). Because the nut is fixed between the bottom of the mouth of the French mouth and the rim, it helps to strengthen the bicycle rim with a narrower width, because the most vulnerable place of this type of rim is often in the valve hole .
Another advantage of a French mouthpiece is its light weight and its ability to fine-tune its speed and control air pressure with precision. Before inflating, you must loosen the top valve screw to inflate. The mouth pump of the French mouth is different from the American mouth, but the mouth of the French mouth can be locked with an adapter and the pump of the American mouth can be used.
