| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | SL-000A2 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $89.9-199.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber And Steel | Warranty: | 1 Year Warranty |
|---|---|---|---|
| Packaging: | Triple Convoluted | Spring Type: | Double Convoluted |
| Application: | For Jack | Function: | Lift |
| Capacity: | 3000KG | Net Weight: | 15.5KG |
| High Light: | Triple Convoluted Rubber Air Spring,SL-000A2 Rubber Air Spring |
||
GUOMAT High Quality Triple Convoluted Rubber Air Spring Pneumatic Jack 3000KG SL-000A2
Product Description
|
Model |
SL-000A2 |
|
Brand |
GUOMAT |
|
MOQ |
10 Pieces |
|
Warranty |
1 Year |
|
Material |
Rubber+Steel |
|
Payment |
L/C,T/T,Western Union |
|
Shipment |
By air,By sea,By express |
|
Delivery Time |
3-8 working days |
Technical Data
Capacity: 3000kg
Min.Height: 15cm
Max.Height: 40cm/48cm
Working Pressure: 0.8-1.2Mpa
Working Temp: -30℃- + 50℃
Net Weight: 15.5kg
Gross Weight: 16.5kg
Packing Dimension: 510*420*170mm
Color: Custom
Jack Specifications and Advantages
Internal telescopes ensure the stability of the entire system during operation.
Safety valve prevents damage to the jack if the air pressure is too high.
Rubber pads prevent the car from accidentally slipping off the jack during use.
The stable surface of the jack base ensures correct operation even on slightly uneven ground.
Thanks to the wheels, the jack is very easy to transport.
Instructions for Use
When inflated, the jack ride,and vice-verse.
1.To control the switch in the rod back, to insert the compressed air in the rigt gas nozzle, and close the left switch.
2.Open the right ball value switch,and when the gasbag rises, it can be used.
3.To fall the jack,please open the left switch.
Firestone Assembly Number
|
Firestone |
Firestone |
Firestone |
Firestone |
|
W01-M58-6165 |
W01-358-7564 |
W01-358-6900 |
W01-358-6941 |
|
W01-M58-6166 |
W01-358-7725 |
W01-358-6902 |
W01-358-6949 |
|
W01-358-7731 |
W01-358-7598 |
W01-358-6905 |
W01-358-7788 |
|
Bellow 131 |
W01-358-7095 |
W01-358-6908 |
W01-358-7795 |
|
W01-M58-6374 |
W01-358-7551 |
W01-358-6910 |
W01-358-7892 |
|
W01-358-7008 |
W01-358-6926 |
W01-358-6926 |
W01-M58-7892 |
|
W01-358-7009 |
W01-358-6884 |
W01-358-6932 |
W01-358-6905 |
|
W01-358-6994/19 |
W01-358-6890 |
W01-358-6935 |
Bellow 26C |
|
W01-358-7451 |
W01-358-6897 |
W01-358-6940 |
W01-358-7325/26 |
|
W01-358-6951 |
W01-358-6943 |
W01-358-6960 |
A01-760-6957 |
|
W01-358-6945 |
W01-358-6945 |
W01-358-6962 |
W01-358-3400 |
|
W01-M58-6944 |
W01-358-6946 |
W01-358-5900 |
W01-358-7180 |
|
W01-M58-6891 |
W01-M58-7679 |
W01-358-7025 |
W01-358-7181 |
|
W01-358-6927 |
W01-358-6948 |
Bellow 255-1.5 |
W01-358-7183 |
|
W01-358-7344 |
W01-358-7403 |
W01-358-7406 |
W01-358-7410 |
|
W01-358-7400 |
W01-358-7404 |
W01-358-7408 |
W01-358-7423 |
|
W01-358-7401 |
W01-358-7405 |
W01-358-7409 |
W01-358-7424 |
|
W01-358-7429 |
W01-358-7136 |
W01-358-7550 |
W01-358-6799 |
|
W01-358-7437 |
W01-358-7472 |
W01-358-7555 |
W01-358-7557 |
|
W01-358-7180 |
W01-358-7545 |
W01-358-7781 |
W01-358-7781 |

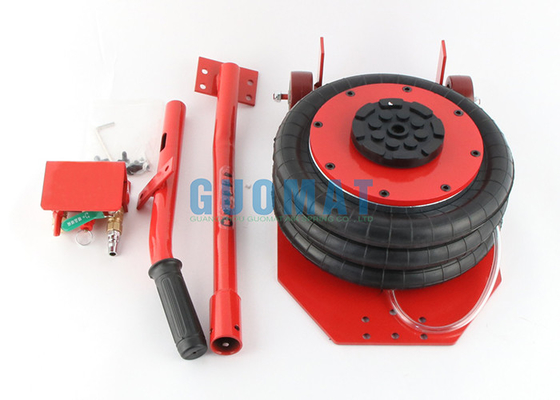

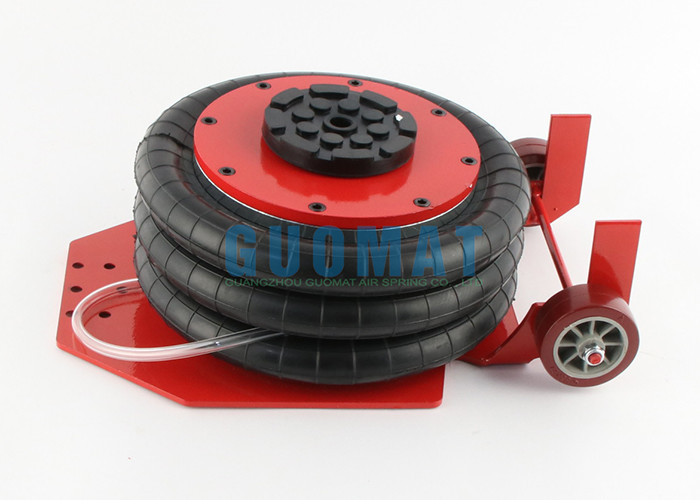

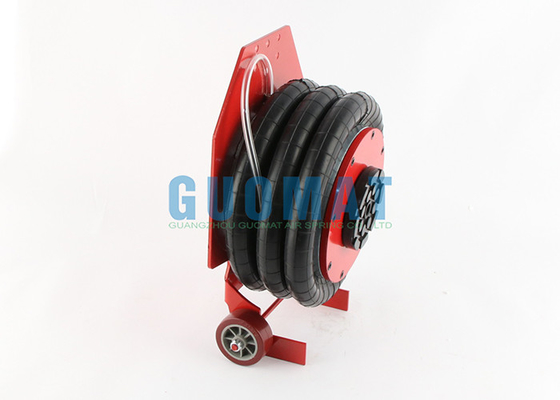

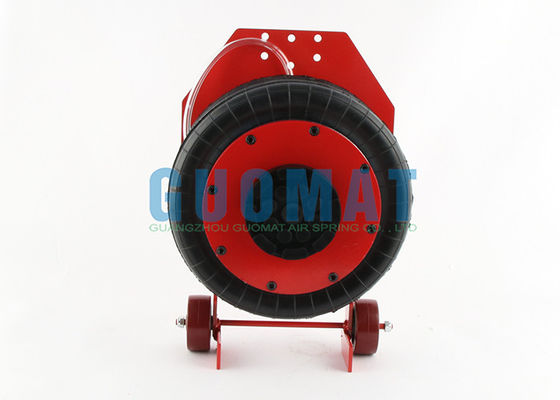

The Real Pictures
