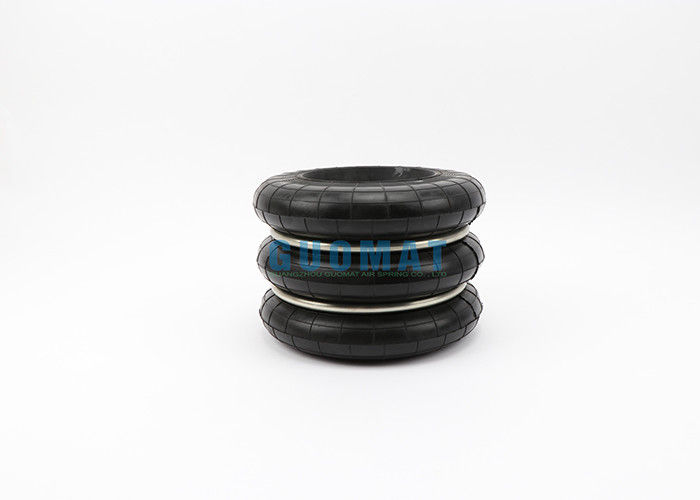

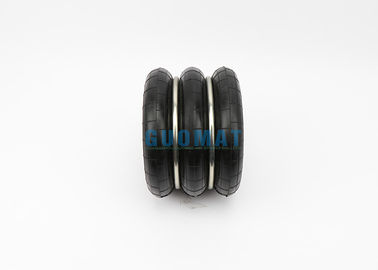

Power Press Rubber Triple Convoluted Air Spring Vibration Frequency 2.5 Hz

China Power Press Rubber Triple Convoluted Air Spring Vibration Frequency 2.5 Hz supplier
Power Press Rubber Triple Convoluted Air Spring Vibration Frequency 2.5 Hz supplier Power Press Rubber Triple Convoluted Air Spring Vibration Frequency 2.5 Hz supplier Power Press Rubber Triple Convoluted Air Spring Vibration Frequency 2.5 Hz supplier Power Press Rubber Triple Convoluted Air Spring Vibration Frequency 2.5 Hz supplier

Large Image :  Power Press Rubber Triple Convoluted Air Spring Vibration Frequency 2.5 Hz

Product Details:

Place of Origin: Guangdong,China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: F-160-3R

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,paypal or others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Rubber And Stainless Steel Yokohama: S-160-3R
GUOMAT: F-160-3R Layer Number: 3 Convolution
Using Maximum Internal Pressure: 0.88 Mpa Vibration Frequency: 2.5 Hz
Net Weight: 2.65 KG Gross Weight: 3.5 KG
Package Size: 170mm*220mm*220mm Commonly Maximum Stroke: ±53mm

Power Press Rubber Air Spring S-160-3R With Design High 152mm and Natural DIA.205MM



Net Weight:2.655 KG



Gross Weight:3.5 KG



Package Size:170mm*220mm*220mm

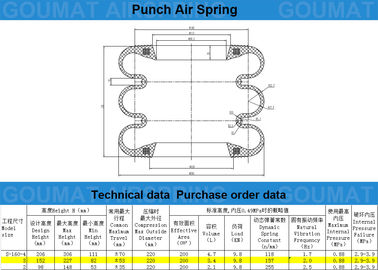

S-160 items Detailed Parameter Table:



GUOMAT NO. Reference No. Hight H(mm) Commonly Maximum Stroke(mm) The Largest Diameter When Compressed(mm)
Design High(mm) Maximum High(mm) Minimum Height(mm)

F-160-3 S-160-3 152 227 82 ±53 220




GUOMAT NO. Reference No. Standard Height,Internal Pressure 0.49 M pa When The General Value Using Maximum Internal Pressure (M pa) Internal Pressure (M pa)
Effective Area (Cm2) Volume(L) Load (K n) Dynamic Spring Parameters (N/Min) Vibration Frequency (Hz)

F-160-3 S-160-3 200 3.4 9.8 157 2 0.88 2.9-3.9






S-160-3R air spring fits below items



Scissor lift

Mechanical Hopper vibration and damping handling stop

Direct force

Platform lift

Short stroke mechanical linkage

Hot foil stamping press

Impact absorbtion

Roller tensioning

Quick lock device

Reel tensioning

Machine isolation





GUOMAT Has Punch Press Air Spring Cushion /Air Shock Absorber Part NO. Below:



GUOMAT Part NO. Japan YOKOHAMA Reference No. Japan YOKOHAMA Reference No.
F-240-4 S-240-4R 240-4r
F-240-3 S-240-3R 240-3r
F-240-2 S-240-2R 240-2r
F-240-1 S-240-1R 240-1r
F-220-4 S-220-4R 220-4r
F-220-3 S-220-3R 220-3r
F-220-2 S-220-2R 220-2r
F-200-2 S-200-2R 200-2r
F-200-3 S-200-3R 200-3r
F-200-4 S-200-4R 200-4r
F-160-1 S-160-1R 160-1r
F-160-2 S-160-2R 160-2r
F-160-3 S-160-3R 160-3r
F-160-4 S-160-4R 160-4r
F-120-4 S-120-4R 120-4r
F-120-3 S-120-3R 120-3r
F-120-2 S-120-2R 120-2r
F-100-4 S-100-4R 100-4r
F-90-3 S-90-3R 90-3r
F-90-2 S-90-2R 90-2r
F-90-1 S-90-1R 90-1r
F-300-1 S-300-1R 300-1r
F-300-2 S-300-2R 300-2r
F-300-3 S-300-3R 300-3r
F-300-4 S-300-4R 300-4r

Power Press Rubber Triple Convoluted Air Spring Vibration Frequency 2.5 HzPower Press Rubber Triple Convoluted Air Spring Vibration Frequency 2.5 HzPower Press Rubber Triple Convoluted Air Spring Vibration Frequency 2.5 Hz
