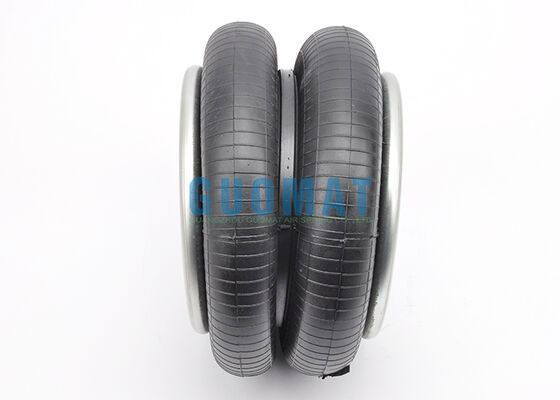

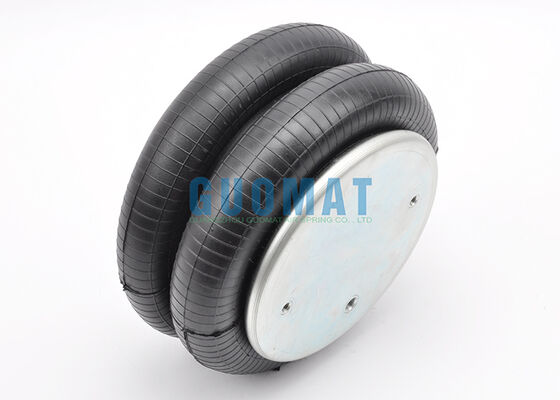

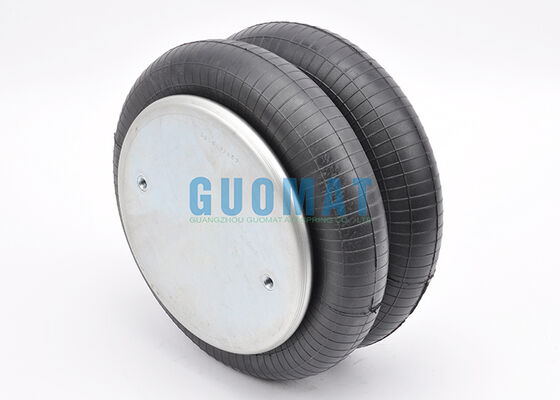

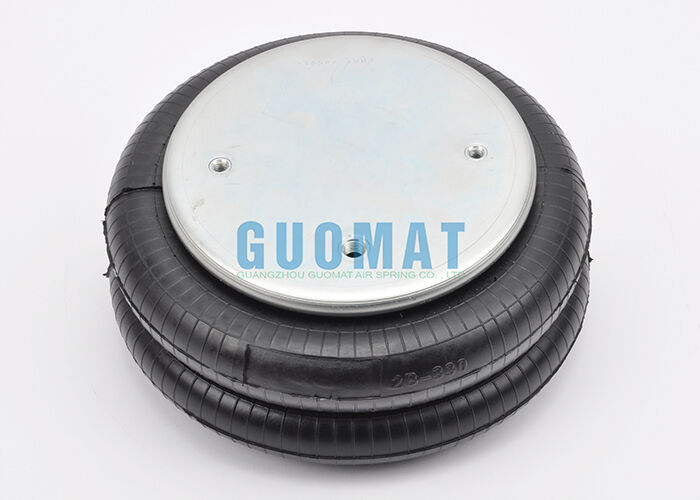

G1/4 Air Hole Convoluted Type Industrial Isolation System WBZ 500-E2 WEFORMA Air Spring Supplier

Product Details:

Place of Origin:	China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B5330-1/4

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	US$59.9-69.9/PC
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	3-7 Working Days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Product Name:	Rubber Air Bellows	Convolutions:	2
Quality Assurance:	1 Year	Minimum Height:	81 Mm
Sample:	Available	Function:	Reduce Shock
Item Name:	Rubber Air Spring	Compatibility:	Easy To Replace
Highlight:	G1/4 air spring isolation system , industrial rubber air spring , WEFORMA air spring supplier

G1/4 Air Hole Convoluted Type Industrial Isolation System WBZ 500-E2

Professional double convoluted industrial air spring designed for vibration control and isolation systems in industrial applications.

Product Specifications

Product Type: Double Convoluted Industrial Air Spring
Model: 2B6330-G1/4
Air Connection: G1/4 Air Hole
Application: Industrial Isolation System / Vibration Control
Material: High-quality rubber bellows + steel components
Structure: Two-convolution rubber air bellow design
Function: Vibration isolation, shock absorption, height adjustment

Alternative Part Numbers

WBZ500 WBZ 500 WBZ500-E2 WBZ 500-E2 WBZ500-E2 G1/4 WBZ 500-E2 G1/4

Technical Data

Cover plate diameter: 231mm
Air hole: G1/4
Threaded hole: M8
Number of threaded holes (each side): 2
Center distance between threaded holes: 157mm
Distance between threaded hole and air hole: 73mm
Maximum outer diameter: 325mm
Minimum height: 81mm
Maximum height: 305mm

Pressure and Height Specifications

Pressure p (bar)	3	4	5	6	7	8	Vol. (l)
Height H (mm) 240	10.0	13.3	16.7	20.6	24.1	27.6	12.3
220	11.3	15.2	18.9	23.1	26.9	30.8	11.6
200	12.5	16.7	20.8	25.3	29.5	33.8	10.8
180	13.6	18.2	22.7	27.5	32.0	36.5	9.9
160	14.6	19.4	24.3	29.5	34.3	39.1	8.9
140	15.4	20.5	25.5	31.1	36.3	41.3	7.8
120	16.3	21.4	26.7	32.7	38.2	43.4	6.7
100	16.8	22.1	27.8	34.1	39.8	45.0	5.5

Advantages of Industrial Air Springs

Excellent Vibration Isolation Performance: Flexible rubber bellows structure absorbs mechanical vibration and reduces vibration transfer between equipment and foundation.
Adjustable Load Capacity: Spring characteristics can be adjusted by controlling air pressure, allowing the same air spring to adapt to different loads.
Low Natural Frequency: Achieves low-frequency vibration isolation, making them suitable for precision equipment and sensitive machinery.
Long Service Life: Reinforced rubber materials and corrosion-resistant metal parts provide reliable performance in industrial environments.

Other Replacement Part Numbers

Firestone: W01-358-7180, Style 22
Contitech: FD 330-22 363
Goodyear: 2B12-425, 2B12-311, Bellows 578-92-3-309
Triangle: 6316, 4363
Airkraft: 115061, 3B-356
Vibracoustic: VSP2B22R7180
EI Ride: 8030190
Leland: SC2075
Navistar: 1685179C1
Hendrickson: 1VA1816
Ridewell: 1003587180C
SAF Holland: 57007180
Watson & Chalin: AS01541G/01881F
Peerless: 0550 00001
