| Place of Origin: | Guangdong,China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | F-300-3 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,paypal or others |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber And Stainless Steel | Yokohama: | S-300-3 |
|---|---|---|---|
| GUOMAT: | F-300-3 | Layer Number: | 3 Convolution |
| Using Maximum Internal Pressure: | 0.88 Mpa | Vibration Frequency: | 1.9 Hz |
| High Light: | triple convoluted air spring,double convoluted air spring |
||

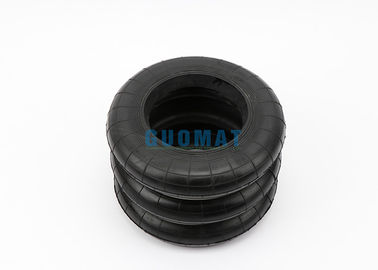

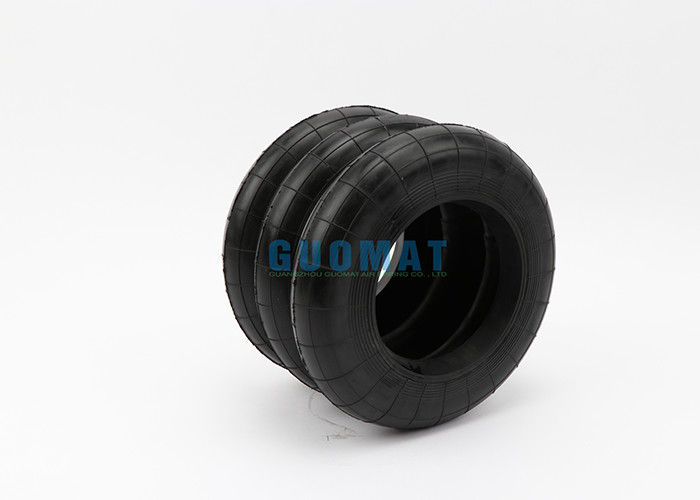

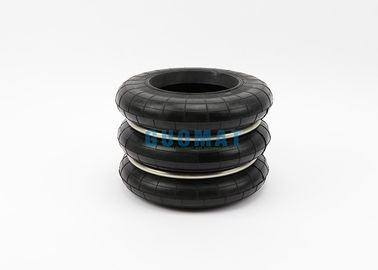

Rubber Convoluted Rubber Bellows Yokohama Air Spring Triple Convolution S300-3R
GUOMAT F-300-3 / S-300-3 air spring of the presses is divided into single, double, three, four and five. Punch the air spring mattress made from natural rubber after a series of process of rubber skin, use the making craft of the air spring on the punch than ordinary industrial air spring is much more complex, therefore, the cost will be higher, the price is a natural a lot higher than the other. There are stainless steel rings in the middle, stainless steel ring in the single layer, and a steel ring in the hyperbolic. GUOMAT F-300-3 / S-300-3 threecurves contain two steel rings,The GUOMAT F-300-3 / S-300-3 three curves contain one steel rings, and the fourth one contains three steel rings, and the fifth one contains four steel rings.
Net Weight:5.75 KG
Gross Weight:6.5 KG
Package Size:350mm*350mm*16mm
F-300 Air Spring Catalogue items Detailed Parameter Table:
| GUOMAT NO. | Reference No. | Hight H(mm) | Commonly Maximum Stroke(mm) | The Largest Diameter When Compressed(mm) | ||
| Design High(mm) | Maximum High(mm) | Minimum Height(mm) | ||||
| F-300-1 | S-300-1 | 72 | 117 | 40 | ±30 | 400 |
| F-300-2 | S-300-2 | 98 | 158 | 53 | ±40 | 360 |
| F-300-3 | S-300-3 | 152 | 242 | 82 | ±60 | 360 |
| F-300-4 | S-300-4 | 206 | 326 | 111 | ±80 | 360 |
| GUOMAT NO. | Reference No. | Standard Height,Internal Pressure 0.49 M pa When The General Value | Using Maximum Internal Pressure (M pa) | Internal Pressure (M pa) | ||||
| Effective Area (Cm2) | Volume(L) | Load (K n) | Dynamic Spring Parameters (N/Min) | Vibration Frequency (Hz) | ||||
| F-300-1 | S-300-1 | 710 | 5.6 | 34.7 | 1180 | 2.8 | 0.69 | 2.9-3.9 |
| F-300-2 | S-300-2 | 710 | 7.4 | 34.7 | 745 | 2.3 | 0.88 | 3.9-4.9 |
| F-300-3 | S-300-3 | 710 | 11.2 | 34.7 | 490 | 1.9 | 0.88 | 3.9-4.9 |
| F-300-4 | S-300-4 | 710 | 15.5 | 34.7 | 324 | 1.5 | 0.88 | 3.9-4.9 |
This item can fits for many kinds of machines
