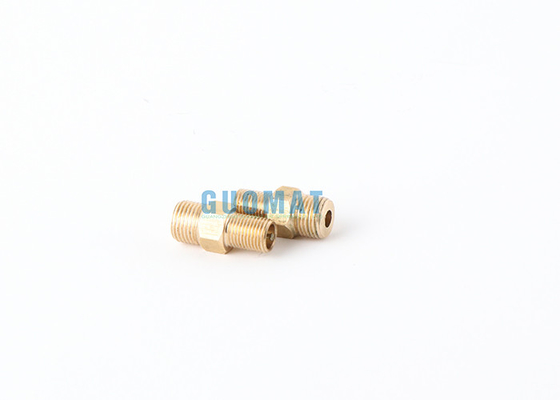

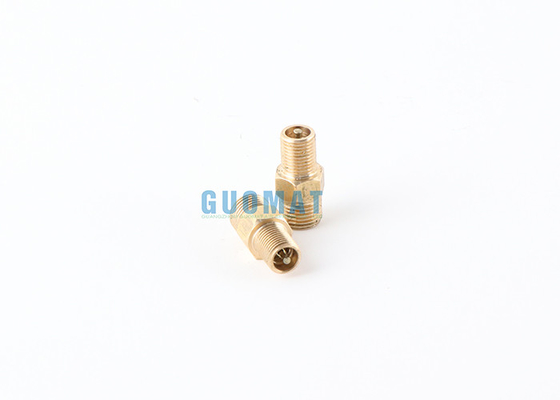

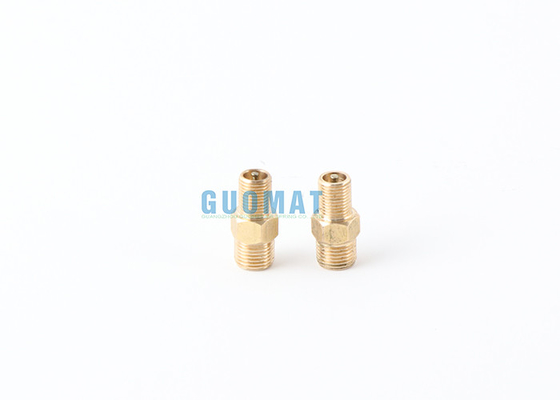

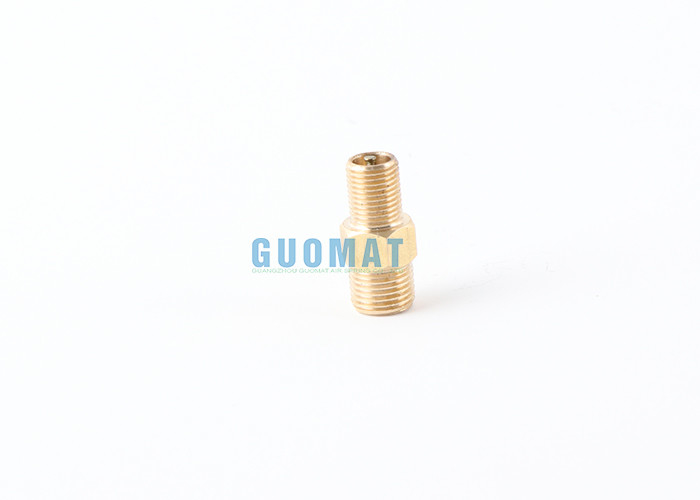

Air Spring Kit G1/8 Presta Residual Pressure Holding Valve For Air Inlet

Air Spring Kit G1/8 Presta Residual Pressure Holding Valve For Air Inlet

  • Air Spring Kit G1/8 Presta Residual Pressure Holding Valve For Air Inlet
  • Air Spring Kit G1/8 Presta Residual Pressure Holding Valve For Air Inlet
  • Air Spring Kit G1/8 Presta Residual Pressure Holding Valve For Air Inlet
  • Air Spring Kit G1/8 Presta Residual Pressure Holding Valve For Air Inlet
Air Spring Kit G1/8 Presta Residual Pressure Holding Valve For Air Inlet
Product Details:
Place of Origin: Guangdong , China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: G1/8
Payment & Shipping Terms:
Price: Negotiable
Packaging Details: Strong Carton Box or as Customer's Require
Delivery Time: 2 - 8 Work Days
Payment Terms: T/T, Western Union,Paypal and Others
Supply Ability: 10000 pcs / week
Contact Now
Detailed Product Description
Main Material: Natural Rubber Position: Upper Plate
Other Names: Air Spring Kits Weight: 0.1 Kg
Car Make: Audi OEM: G1/8
Model: Air Inlet G1/8
High Light:

Upper Plate Pressure Holding Valve

,

OEM G1/8 Residual Pressure Valve

,

Air Inlet Residual Pressure Valve

Air Spring Kit G1/8 Valve core Presta Residual Pressure Holding Valve For Air Inlet




Specifications



Size code=1/8

Number of teeth per 25.4 (mm) n=28

Pitch p=0.907

Tooth height h=0.581

Arc radius r=0.125

Diameter on the base surfacemajor diameter d=D=9.728

Diameter on the base surfacemedium diameter d2=D2=9.147

Diameter on the base surfacesmall diameter d1=D1=8.566



French valves (English: Presta valve, Sclaver and valve or French valve) are often referred to simply as French mouths and are mostly used on road bikes. Also this kind of valve can use in the air spring.

This type of valve consists of an externally threaded copper body, a valve screw that holds the valve, a valve cover, and a nut that fixes the valve on the rim.


The biggest feature of the French mouth is just the opposite of the American mouth, and its air core cannot be removed. However, some pistols can have their cores. The purpose is to inject inner tube repairing agents. However, the number of such rare French mouths is rather rare. For different applications, the length of the brass body will change; its 6mm aperture is also smaller than the American mouth (the body mouth of the American mouth is 8mm). Because the nut is fixed between the bottom of the mouth of the French mouth and the rim, it helps to strengthen the bicycle rim with a narrower width, because the most vulnerable place of this type of rim is often in the valve hole .


Another advantage of a French mouthpiece is its light weight and its ability to fine-tune its speed and control air pressure with precision. Before inflating, you must loosen the top valve screw to inflate. The mouth pump of the French mouth is different from the American mouth, but the mouth of the French mouth can be locked with an adapter and the pump of the American mouth can be used.



Air Spring Kit G1/8 Presta Residual Pressure Holding Valve For Air Inlet 0
