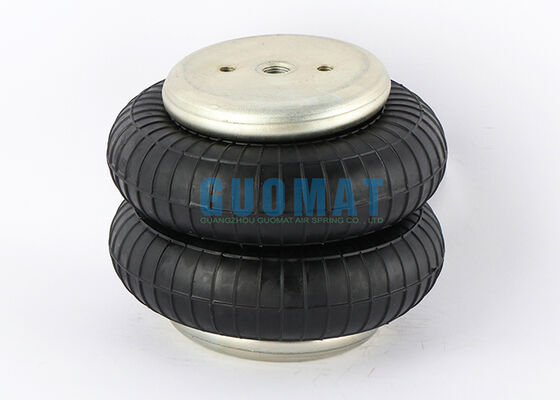

Contitech Air Spring Replacement FD70-13 1/4 M8 Double Convoluted Rubber Air Bags

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B7070

Payment & Shipping Terms:

Minimum Order Quantity:	6PCS
Price:	$59.9-69.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Type Of Goods:	Air Spring/Air Bags/Air Ballons	Material:	Rubber + Steel
Warranty:	12 Months	Service Offered:	OEM
Contitech:	FD 70-13	Air Fitting:	G1/4
Convolutions:	2	Color:	Black
Highlight:	Contitech double convoluted air spring , FD70-13 M8 rubber air bags , industrial air spring replacement

Contitech Air Spring Replacement FD70-13 1/4 M8 Double Convoluted Rubber Air Bags

Product Specifications

Type	Double Convoluted Type Industrial Air Spring
Brand	GUOMAT
Model No.	2B7070
Color	Black
Application	Pick Up
Warranty	12 Months
Payment	T/T L/C Western Union
Packing	Carton Box
Delivery Date	2-8 working days
MOQ	1 Piece

Compatible Brands & Part Numbers

Continental ContiTech:
FD 70-13 Cl G1/4
FD 70-13 Cl G1/4 M8
FD 70-13 1/4 M8
FD 70-13 C12682 015 000
FD 70-13 / FD 70 13 / FD7013

Goodyear:
2B6-833 / 2B6833 / 2B6833
579-92-3-510 / 579 92 3 510 / 579923510

Enidine:
Y1-2B6-833 / Y12B6 833 / YI2B6833

Firestone:
w01-M58-6105 / W01M58 6105 / W01M586105
255-1.5 / 255 1.5 / 2551.5

Festo:
EB-165-125 / EB165 125 / EB165125

Technical Parameters

Top cover diameter: 107mm

Top threaded hole specifications: 2XM8, 15mm

Center distance between top threaded holes: 44.5mm

Air Fitting: G1/4

Bottom cover diameter: 107mm

Bottom threaded hole specifications: 2XM8, 15mm

Center distance between bottom threaded holes: 44.5mm

Maximum outer diameter: 165mm

Design height: 160mm

Key Selection Parameters

To ensure optimal performance and service life, evaluate these factors when selecting an air spring:

Load Requirement: Confirm required load capacity under static and dynamic conditions
Working Stroke & Height Range: Check minimum height, maximum height, and effective stroke
Mounting Configuration: Verify thread size, stud quantity, and center distance
Installation Space: Ensure sufficient clearance for maximum bellows diameter
Operating Pressure Range: Confirm compatibility with system air supply pressure
Application Environment: Consider temperature, humidity, vibration, and exposure to dust or chemicals

Note: Selecting the correct model improves stability, reduces maintenance costs, and extends equipment service life. GUOMAT engineers are available for technical support and application matching.

Product Images
