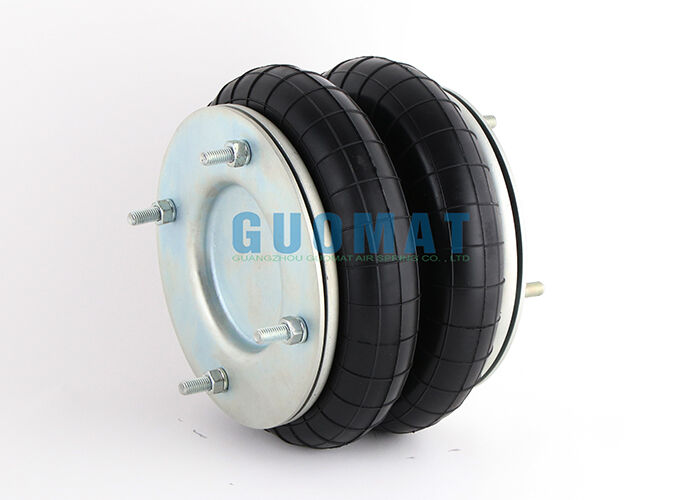

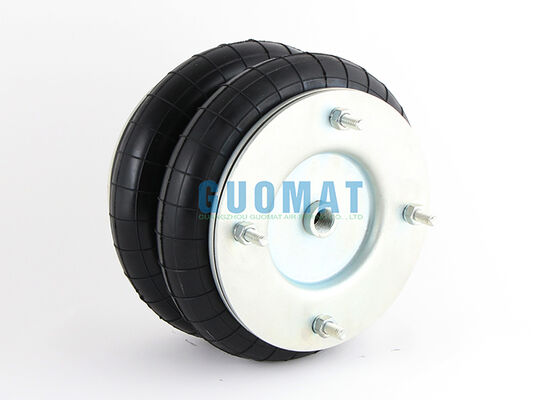

12''X2 Rubber Bellow Air Spring FD 412-18 1/2 M10 Contitech Pneumatic Shock Absorber

12''X2 Rubber Bellow Air Spring FD 412-18 1/2 M10 Contitech Pneumatic Shock Absorber

  • 12''X2 Rubber Bellow Air Spring FD 412-18 1/2 M10 Contitech Pneumatic Shock Absorber
  • 12''X2 Rubber Bellow Air Spring FD 412-18 1/2 M10 Contitech Pneumatic Shock Absorber
12''X2 Rubber Bellow Air Spring FD 412-18 1/2 M10 Contitech Pneumatic Shock Absorber
Product Details:
Place of Origin: China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 2B12X2T
Payment & Shipping Terms:
Minimum Order Quantity: 6pcs
Price: US$109.9-159.9/PC
Packaging Details: Strong Carton Box Or As Customers Need
Delivery Time: 3-7 Working Days
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Product Name: Rubber Air Spring Height: 186mm
Rubber Bellows: 12''x2 Temperature Range: -40℃+70℃
Convoluted: Double Convoluted Type Manufacturer Warranty: One Year
Size: 24*24*24 CM Contitech: FD 412-18 DS
Highlight:

12x2 rubber bellow air spring

,

M10 pneumatic shock absorber

,

Contitech air spring with warranty

12"X2 Rubber Bellow Air Spring FD 412-18 1/2 M10 Contitech Pneumatic Shock Absorber
High-quality double convoluted air spring designed for industrial shock absorption and vibration isolation applications.
Product Specifications
Item Specification
Brand GUOMAT
Model Number 2B12X2T
Type Double Convoluted Air Spring
Bellows Type 12" x 2
Material Rubber + Steel
Application Industrial Shock Absorption & Vibration Isolation
Screw M10
Working Medium Compressed Air
Warranty 12 Months
Technical Data
Natural Outer Diameter: 300mm
Design Height: 186mm
Description ⊗ Ø
Bottom plate Blind nuts M8
Top/Bottom plate M10 (bolts) Rp 1/2 center
Top/Bottom plate M10 (bolts) M16X1,5 120mm
Top/Bottom side only clamp ring M10
Top/Bottom plate M10 (bolts), Bumper (120mm) M16x1,5 120mm
OEM Cross-Reference Numbers
CONTITECH: FD 412-18 S
DUNLOP(FR): SP256NB
CONTITECH: FD412-18 1/2 M10 / 66334
DUNLOP(FR): SP 1541 NB (12X2)
FIRESTONE: W01-R58-4061
GOODYEAR: 2B12-2452
GOODYEAR: 578 9 2 3 2452
WEFORMA: WBZ-G 550
NORGREN: M/31122 (12"X2)
DUNLOP(UK): PNP 3055 20 118
FIRESTONE: FOLE 210 095.0082
CONTITECH: FD 412-18 P01
DUNLOP(FR): SP 2665 NB(12"X2)
FIRESTONE: W01-R58-4073
GOODYEAR: 2B12-2457
GOODYEAR: 9 2 3 2452
CONTITECH: FD 412-18
DUNLOP(FR): SP 1025 NB
Product Features
  • High-quality rubber bellows with excellent flexibility and wear resistance
  • Double convoluted design for higher load capacity and longer stroke
  • Effective vibration isolation and shock absorption performance
  • Adjustable working height by controlling air pressure
  • Reduces mechanical noise and vibration transmission
  • Easy installation and maintenance
  • OEM manufacturing and customization available
Warranty & After-Sales Support
GUOMAT provides a 12-month warranty for the 2B12X2T Rubber Bellow Air Spring.
Our professional technical team can provide:
  • Product selection assistance
  • Installation guidance
  • Replacement model confirmation
  • After-sales technical support
GUOMAT 2B12X2T Rubber Bellow Air Spring - Double Convoluted Industrial Shock Absorber
