3B-300 Airkraft Rubber Air Spring FT 412-32 DS Contitech Industrial Isolation System

Product Details:

Place of Origin:	China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	3B12X3T

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	US$159.9-199.9/PC
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	3-7 Working Days
Payment Terms:	D/A,L/C,D/P,T/T
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Product Name:	Rubber Air Spring	Air Inlet:	G1/2
Usage:	Industrial	Compatibility:	Easy To Replace
Warranty Special:	1 Year	Style:	Flange Air Spring
Convoluted:	Triple Convoluted Type	Package:	Brown Carton Box
Highlight:	Rubber Air Spring industrial isolation , Airkraft Rubber Air Spring FT , Contitech Air Spring with warranty

3B-300 Airkraft Rubber Air Spring FT 412-32 DS Contitech Industrial Isolation System

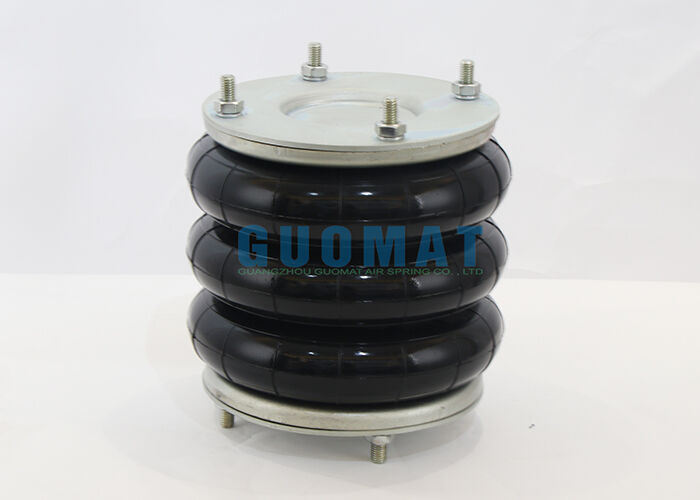

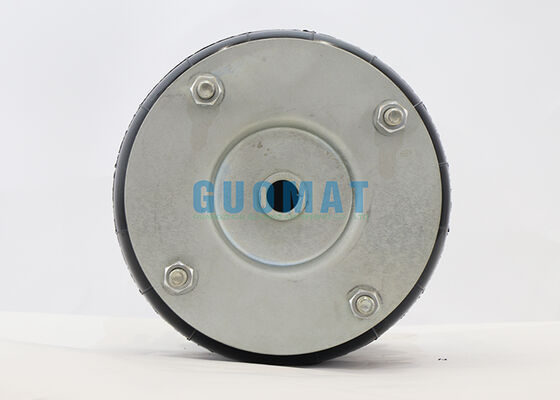

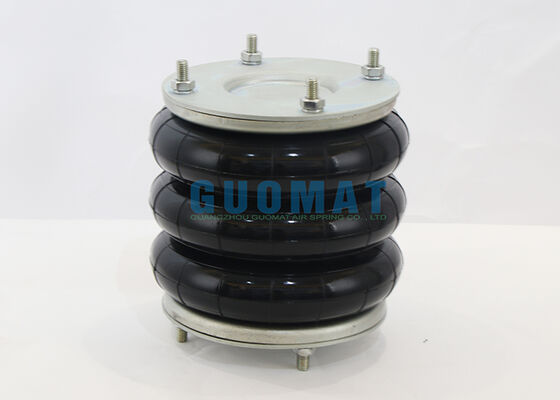

The GUOMAT NO.3B12X3T is a triple-convoluted rubber air spring designed for industrial vibration isolation, shock absorption, lifting, and pneumatic suspension applications. This component serves as a direct replacement for Airkraft 3B-300 and Contitech FT 412-32 DS style air springs.

The flexible rubber bellows provide effective vertical movement and vibration isolation while maintaining a compact installation profile. Compared to conventional mechanical springs, this pneumatic design significantly reduces transmitted vibration, noise, and mechanical impact in industrial equipment.

This industrial air spring is ideal for machinery and systems requiring controlled pneumatic isolation, precise height adjustment, or reliable shock absorption capabilities.

Replacement Part Numbers

AIRKRAFT 3B-300
FIRESTONE W01R584062 / W01 R58 4062 / W01-R58-4062
DUNLOP SP1542 / SP 1542
CONTITECH FT 412-32 DS / FT412-32 DS / FT412-32DS
NORGREN M/31123 / M 31123

Technical Specifications

Design Height	252 mm
Diameter	260 mm
Bolts	4-M10
Center Distance Between Bolts	232 mm
Outer Diameter	300 mm
Air Hole	G1/2

Key Features

Triple-convoluted rubber air spring design
Direct replacement for Airkraft 3B-300 style
Flexible rubber bellows for superior vibration isolation
Suitable for lifting, lowering, suspension, and shock absorption
Reduces vibration transmission to industrial equipment
Ideal for OEM replacement and maintenance applications
Compatible with industrial isolation systems and pneumatic suspension equipment

Advantages of Industrial Air Springs

Rubber air springs offer significant advantages over conventional steel springs by providing flexible pneumatic support and adjustable operating characteristics. By modifying internal air pressure, the air spring can be precisely adapted to varying load and operating conditions.

The three-convolution construction delivers excellent flexibility while accommodating substantial vertical movement. This makes the 3B12X3T particularly suitable for applications where vibration reduction, controlled movement, and equipment protection are critical requirements.
