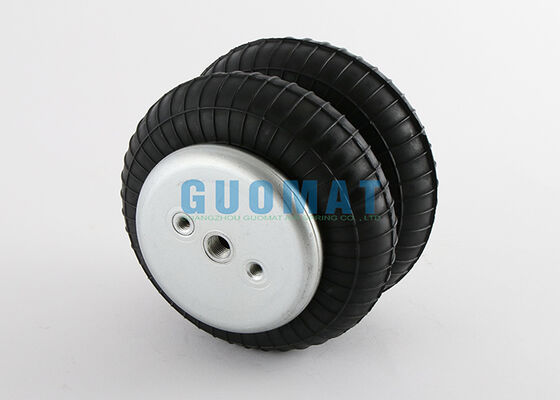

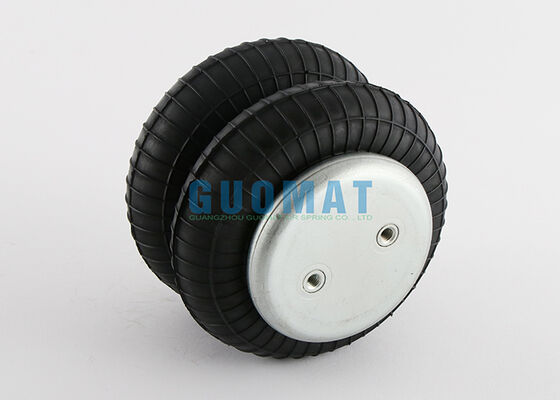

EB-215-155 FESTO Industrial Vibration Isolation G3/4 Constant Height Air Spring

Product Details:

Place of Origin:	China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B-215-155

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	US$59.9-69.9/PC
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	3-7 Working Days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Product Name:	Rubber Air Spring	Convolution:	Double Convoluted
Connection Method:	Blind Nuts	Purpose:	For Replace / Repair
Factory Warranty:	12 Months	FESTO:	EB-215-155
MOQ:	1pc	Material:	Rubber+Steel
Highlight:	FESTO industrial vibration isolation air spring , constant height air spring G3/4 , rubber air spring with warranty

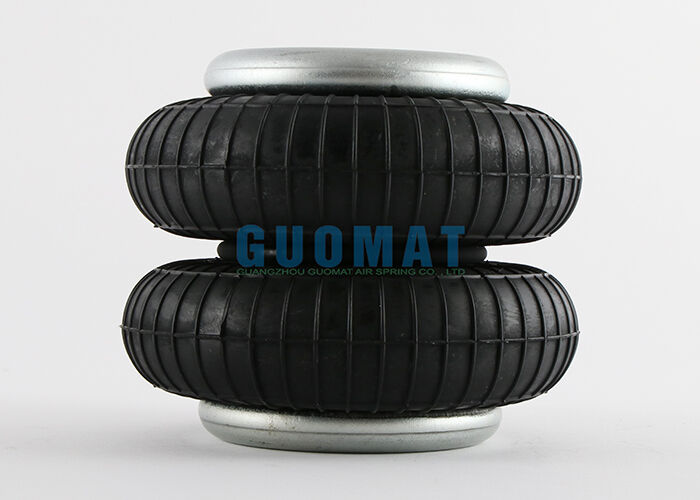

EB-215-155 FESTO Industrial Vibration Isolation G3/4 Constant Height Air Spring

High-performance double convoluted air spring designed for industrial vibration isolation applications, providing constant height performance and reliable operation in demanding environments.

Product Specifications

Type: Double Convoluted Air Spring

Brand: GUOMAT

Model No.: 2B215-155

Material: Rubber and Steel

Warranty: 12 Months

OEM No.: FESTO EB-215-155

Technical Specifications

Center distance	70mm
Maximum outer diameter	215mm
Cover plate diameter	141mm
Air hole	G3/4
Threaded hole	M8
Maximum height	230mm
Minimum height	75mm

Performance Data

Size	215
Required installation diameter	230 mm
Stroke	155 mm
Max. extended height	230 mm
Max. angle of inclination	30 deg
Max. offset	20 mm
Min. installation height	75 mm
Mounting position	Any
Mode of operation	Single-acting
Symbol	00991205
Operating pressure	0 MPa ... 0.8 MPa
Operating pressure	0 bar ... 8 bar
Operating pressure	0 psi ... 116 psi
Operating medium	Compressed air to ISO 8573-1:2010 [-:-:4]
Note on operating and pilot medium	Lubricated operation not possible
Corrosion resistance class CRC	2 - Moderate corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-40 °C -70 °C
Reset force	200 N
Product weight	2300 g
Type of mounting	With female thread
Pneumatic connection	G3/4
Note on materials	RoHS compliant
Material bellows	NR/BR
Material housing	Steel, Galvanised
