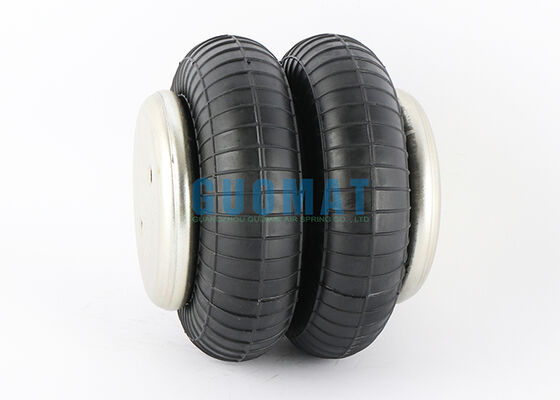

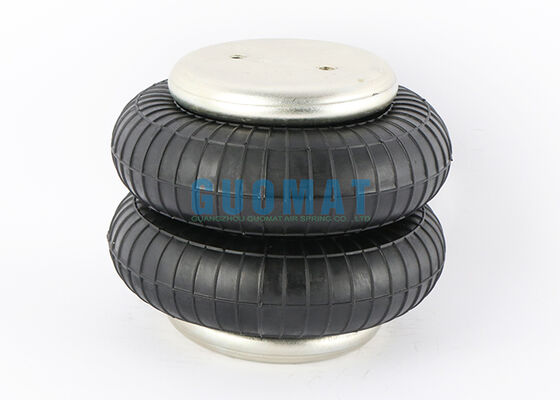

EB-165-125 FESTO Rubber Air Bellow FD70-13 Contitech Air Bag Replacement With M8 Threaded Hole

Product Details:

Place of Origin:	China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B7070

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	US$59.9-69.9/PC
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	3-7 Working Days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Product Name:	Rubber Air Spring	Packing:	Neutral Box Or As Customers' Request
Plate Diameter:	108 Cm	Fuction:	Reduce Shock
Working Temperature:	-40℃+70℃	Usage:	Industrial
Structure:	Double Convoluted	Warranty:	12 Months
Highlight:	FESTO rubber air bellow replacement , Contitech air bag with M8 thread , FD70-13 rubber air spring

EB-165-125 FESTO Rubber Air Bellow FD70-13 Contitech Air Bag Replacement With M8 Threaded Hole

Product Overview

GUOMAT Part Number: 2B7070

Type: Single Convoluted Rubber Air Bellow

Material: Rubber + Steel

Warranty: 1 Year

Threaded Connection: M8 threaded hole

Construction: Reinforced rubber + metal end components

Function: Lifting, lowering, vibration isolation and shock absorption

Application: Industrial machinery and pneumatic equipment

Cross-Reference Part Numbers

Brand	Part Number
FESTO	EB-165-125
FESTO	EB 165 125
CONTITECH	FD70-13
CONTITECH	FD 70-13

Technical Specifications

Center-to-center distance	44.5 mm
Maximum outer diameter	165 mm
Cover plate diameter	108 mm
Air hole	G1/4
Threaded hole	M8
Maximum height	200 mm
Minimum height	72 mm

Applications

Tooling equipment
Industrial automation systems
Pneumatic lifting equipment
Press and forming machinery
Machine vibration isolation
Conveyor and packaging equipment
Material handling systems
Industrial positioning systems
Shock and vibration damping equipment

Packaging & Delivery

Each GUOMAT air bellow is individually protected and packed to help prevent damage during transportation.

Standard Packing:

1 piece in a poly bag
1 piece in a carton
Product number and quantity marked on the carton
Customer logo and customized marking available upon request

We support international shipment by air freight, sea freight, express delivery, and other logistics methods according to customer requirements.

Warranty

Warranty Period: 12 Months / 1 Year

The warranty covers manufacturing defects under normal operating and installation conditions. Proper installation and operation according to the specified application requirements are recommended to achieve optimum service life.
