24x3/8-24UNF Contitech Rubber Air Spring FT 1710-38 RS Industrial Air Cushion

Product Details:

Place of Origin:	China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	3H7324

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	Negotiable
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	3-7 Working Days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Product Name:	Rubber Air Spring	Convoluted:	Double Convoluted Type
Operating Temperature:	-40℃+70℃	Contitech:	FT 1710-38 RS
Material:	Rubber And Steel	Warranty:	1 Year
Color:	Black	Bolts:	24pcsx3/8-24UNF
Highlight:	24x3/8-24UNF rubber air spring , Contitech industrial air cushion , FT 1710-38 RS air spring

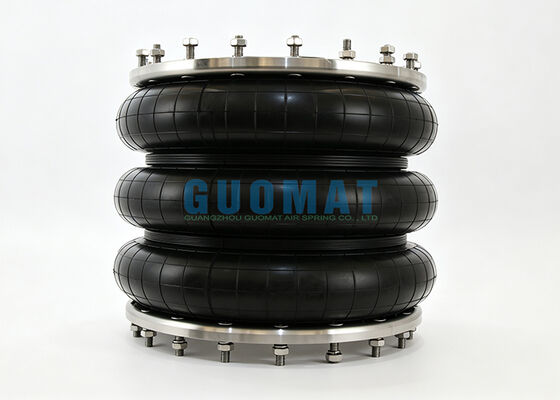

24x3/8-24UNF Contitech Rubber Air Spring FT 1710-38 RS Industrial Air Cushion

Product Overview

The GUOMAT 3H7324 Industrial Air Spring is a high-quality rubber air spring designed as an equivalent replacement for the Contitech FT 1710-38 RS. This industrial pneumatic air spring features a 24-hole mounting configuration with 3/8-24 UNF connection specifications, making it suitable for a wide range of industrial air suspension and vibration isolation applications.

Manufactured with a reinforced rubber bellows construction and durable metal components, the GUOMAT 3H7324 provides reliable flexibility, vibration absorption, and load support. It can be used as an industrial air cushion, pneumatic isolator, rubber air bag, or air suspension element in machinery and equipment.

OEM Cross-Reference Numbers

CONTITECH FT1710-38
CONTITECH FT 1710-38
CONTITECH FT1710-38 RS
CONTITECH FT 1710-38 RS
FIRESTONE W01-358-7324
FIRESTONE W01 358 7324
FIRESTONE W013587324

Technical Specifications

Specification	Measurement
Flange diameter	20.35 inches / 516.89 mm
Maximum outer diameter	22.83 inches / 579.882 mm
Bolts	24pcs x 3/8-24 UNF
Center distance between bolts	19.0 inches / 482.6 mm
Maximum height	18.5 inches / 469.9 mm
Minimum height	4.5 inches / 114.3 mm

Product Advantages

The GUOMAT 3H7324 combines a flexible rubber bellows with strong metal reinforcement to provide a reliable pneumatic spring solution for industrial equipment. Its air-pressure-based spring characteristics allow it to support different loads while providing effective vibration isolation.

For customers replacing worn or damaged Contitech industrial air springs, GUOMAT provides replacement air springs with consistent dimensions, reliable materials, and competitive pricing.

We can also support OEM production, customized mounting configurations, private labeling, and bulk orders according to customer requirements.

Packaging & Delivery

Each air spring is carefully packed to protect the rubber bellows and metal components during transportation.

Standard Packaging

1 piece per poly bag
1 piece per carton
Product part number and quantity marked on the carton
Customized packaging and customer logo available upon request

GUOMAT supports international shipment by air freight, sea freight, express delivery, and other transportation methods according to order quantity and customer requirements.

Warranty & Support

GUOMAT provides a 12-month warranty for this industrial rubber air spring against manufacturing defects under normal operating and installation conditions.

Proper installation and operation according to the application requirements are recommended to achieve maximum service life.

After-Sales Support

If you are looking for a replacement for Contitech FT 1710-38 RS, please send us your original air spring part number, drawing, dimensions, or photos. Our technical team can help check the corresponding GUOMAT air spring and confirm the mounting configuration.

GUOMAT 3H7324 is a reliable choice for industrial air suspension, pneumatic vibration isolation, and machinery air cushion applications.
