PM/31041 NUOGREN Air Spring Isolator FS44-5DI Contitech Air Bellow For Packing Equipment

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1B4.5X1P

Payment & Shipping Terms:

Minimum Order Quantity:	6PCS
Price:	$89.9-99.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Product:	Cabin Air Shock Spring	Number Of Convolutions:	Single
Type Of Goods:	Rubber Air Spring	Structure:	Single Convoluted Type
Quality:	100 % Tested	Buffer Block:	Without
Contitech:	FS 44-5 DI	Keywords:	Air Suspension Shock Absorber
Highlight:	Contitech air bellow for packing equipment , NUOGREN air spring isolator , Rubber air spring with warranty

PM/31041 NUOGREN Air Spring Isolator FS44-5DI Contitech Air Bellow For Packing Equipment

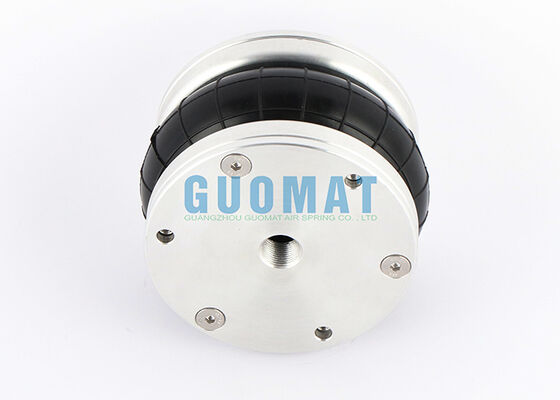

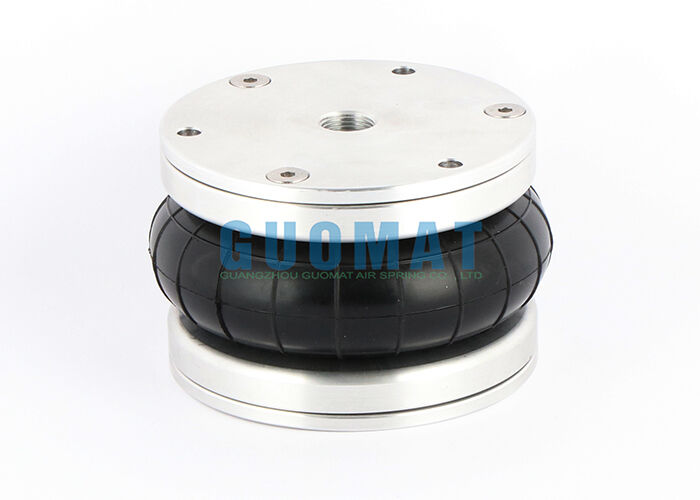

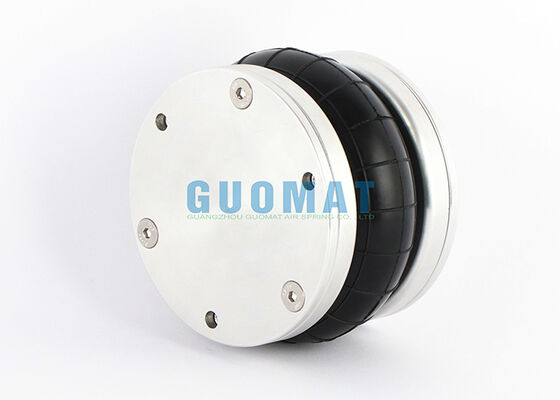

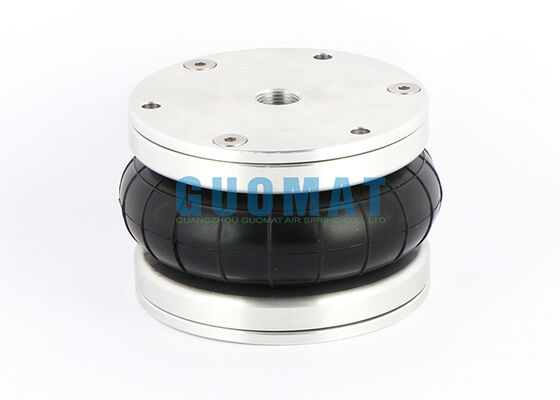

The GUOMAT 1B4.5X1P Air Spring is a single-convoluted rubber air spring engineered for vibration isolation, shock absorption, and height control in industrial machinery applications. This premium replacement solution is compatible with NUOGREN PM/31041 and Contitech FS44-5DI models, making it ideal for equipment manufacturers, maintenance providers, and industrial spare parts distributors.

Key Features & Benefits

Flexible rubber air chamber with durable end construction
Reliable pneumatic cushioning for vibration reduction
Effective noise reduction capabilities
Compact single-convoluted design for space-constrained installations
Suitable for packing equipment, packaging machinery, and automation systems
Ideal for material handling systems and industrial machines

Product Specifications

Brand	GUOMAT
Model No.	1B4.5X1P
Type	Air Spring
Warranty	1 Year
Material	Rubber + Steel
Color	Black + Silver

Cross-Reference Part Numbers

Manufacturer	Part Numbers
Continental ContiTech	FS 44-5 70205, FS 44-5 DI CR 70205, FS 44-5 G3/8 M6, FS 44-5 DI CR G3/8, FS 44-5 DI CR G3/8 M6, FS 44-5 DI G3/8 CR, FS 44-5 DI CR/FS44-5DICR/FS445DICR, FS 44-5/FS44-5/FS445
Firestone	Style: 41/2" x1/41/2"x1/41/2x1, No.: W01-R58-4050/W01 R58 4050/W01R584050
Norgren	PM/31041/PM 31041/PM31041
Dunlop UK (Pneuride)	PNP 30559 01 06/PNP305590106
Parker	9109400

Technical Specifications

Nominal Ø x convolutions	Stroke (mm)	Installation height [A] min. (mm)	Recommended working height [B] max. (mm)	Installation height [C] max. (mm)	Max. torque for mounting studs (Nm)	Natural frequency [fn] at 4 bar (Hz)	Stiffness at 4 bar (N/mm)	Recommended vibration height (mm)	Weight (kg)	Model
4 1/2" x 1	40	50	80	90	5	3.96	148	70	0.75	PM/31041

Warranty & Support

GUOMAT provides a comprehensive 12-month warranty for this industrial air spring under normal operating conditions. Our experienced sales and technical support team is available to assist with product selection, dimensional verification, replacement identification, and installation requirements to ensure you receive the correct air spring for your application.
