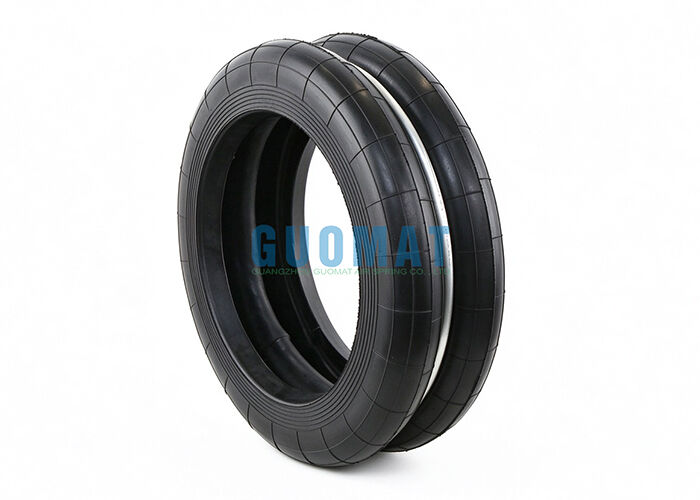

S-600-2 Rubber Air Bellows Nominal Diameter 600mm Industrial Air Spring For Press Machine
The GUOMAT F-600-2 is a large-diameter industrial rubber air spring designed for heavy-duty press machines and industrial equipment. With a nominal diameter of 600 mm, this two-convolution rubber air bellows provides reliable vibration isolation, shock absorption, lifting, lowering, and load support.
The F-600-2 can be used as an alternative to S-600-2 air bellows in suitable applications. Its flexible rubber construction allows controlled vertical movement while helping reduce mechanical vibration and impact during press machine operation.
Product Specifications
- Brand: GUOMAT
- Model No.: F-600-2
- Type: Rubber Air Spring
- Material: Rubber
- Features: With Waist Ring
Compatible Replacements
Can replace YOKOHAMA S-600-2, YOKOHAMA S 600 2, YOKOHAMA S6002, YOKOHAMA S-600-2R, YOKOHAMA S 600 2R, YOKOHAMA S6002R
Technical Data
| Parameter |
Value |
| Design Height (mm) |
102 |
| Max Height (mm) |
172 |
| Min Height (mm) |
57 |
| Common Maximum Travel (mm) |
±45 |
| Compression Max Outside Diameter (mm) |
660 |
| Effective Area (cm²) |
2830 |
| Volume (L) |
26.3 |
| Load (KN) |
138.3 |
| Dynamic Spring Constant (n/mm) |
2873 |
| Maximum Internal Frequency (Hz) |
2.3 |
| Maximum Internal Pressure (MPa) |
0.69 |
| Internal Pressure Failure (MPa) |
3.9-4.9 |
Press Machine Applications
The F-600-2 industrial air spring can be installed on press machines, stamping presses, forming equipment, lifting systems, and other heavy industrial machinery. It can help isolate machine vibration, absorb impact forces, and provide controlled lifting or lowering movement.
Its large 600 mm nominal diameter makes it suitable for applications requiring a larger air spring working area and stable load support.
GUOMAT Replacement Advantages
GUOMAT provides replacement industrial air springs and rubber air bellows for various machinery and equipment. We can support customers with dimensional confirmation, air spring selection, cross-reference checking, and customized specifications.
Each product can be supplied with suitable packaging for export shipment. Stock products are normally available for delivery within 3-7 working days, while customized products can be discussed according to project requirements.
