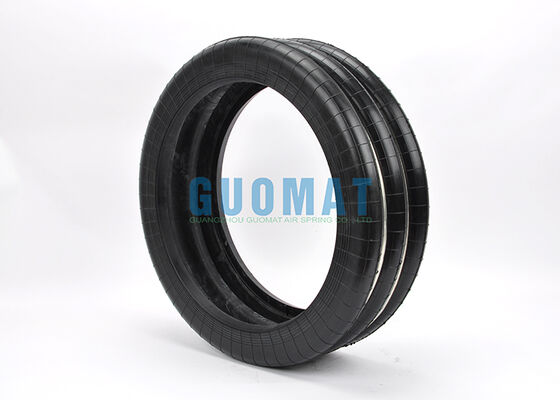

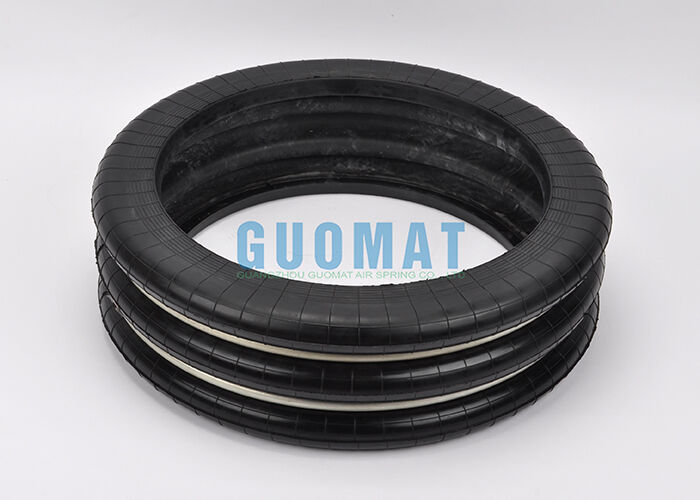

F-600-3 Triple Convoluted Rubber Air Spring Replacement S-600-3R YOKOHAMA Punch Press Air Bag

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	F-600-3

Payment & Shipping Terms:

Minimum Order Quantity:	6PCS
Price:	Negotiable
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Shock Absorber Type:	Gas-Filled	Air Spring Type:	Triple Convoluted Type
Package:	Brown Carton Box	Warranty Period:	12 Months
YOKOHAMA:	S-600-3R	Application:	Press Machine
Waist Ring:	With	Color:	Black
Highlight:	Triple Convoluted Rubber Air Spring , Punch Press Air Bag Replacement , YOKOHAMA Air Spring S-600-3R

F-600-3 Triple Convoluted Rubber Air Spring

Replacement S-600-3R YOKOHAMA Punch Press Air Bag

Product Reference Numbers

GUOMAT NO.F-600-3

YOKOHAMA NO.S-600-3

YOKOHAMA NO.S 600 3

YOKOHAMA NO.S6003

YOKOHAMA NO.S-600-3R

YOKOHAMA NO.S 600 3R

YOKOHAMA NO.S6003R

Technical Specifications

Parameter	Value
Design Height (mm)	160
Max Height (mm)	270
Min Height (mm)	90
Common Maximum Travel (mm)	±68
Compression Max Outside Diameter (mm)	660
Effective Area (cm²)	2830
Volume (L)	43.2
Load (KN)	138.3
Dynamic Spring Constant (n/mm)	1765
Maximum Internal Frequency (Hz)	1.8
Maximum Internal Pressure (MPa)	0.69
Internal Pressure Failure (MPa)	3.9-4.9

Product Overview

GUOMAT Rubber Air Spring is engineered specifically for punch presses, stamping machines, and metal forming equipment. It delivers reliable support, vibration isolation, shock absorption, and lifting assistance during machine operation.

The air spring features durable rubber bellows construction with reinforced steel components and steel bead rings, designed to withstand repeated compression cycles and dynamic loading conditions. By adjusting internal air pressure, the spring force and working height can be precisely calibrated to meet specific press machine requirements.

For punch press applications, this air spring provides vibration damping, shock absorption, lifting and lowering assistance, die cushioning, and load support functions. It effectively reduces mechanical impact and vibration during high-frequency stamping operations, contributing to smoother machine movement and enhanced operational stability.

GUOMAT air springs are available in various sizes and configurations and can be manufactured according to YOKOHAMA reference dimensions or custom specifications. They are ideal for replacement and customized applications in industrial stamping and pressing equipment.
