3B14-457 Triple Convoluted Air Shock 556-33-8-335 Goodyear Rubber Air Spring Bags

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	3B7843

Payment & Shipping Terms:

Minimum Order Quantity:	6PCS
Price:	US$79.9-99.9/PC
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Contitech:	FD 200-19 499	OEM No:	Firestone W01-358-7843
Spring Type:	Convoluted Air Springs	Packing:	Neutral Box Or As Customers' Request
Port:	Huangpu, China	Bottom Plate Dia:	11.30''
Manufacturer Warranty:	12 Months	Function:	Reduce Shock
Highlight:	Triple Convoluted Air Shock 3B14-457 , Goodyear Rubber Air Spring Bags , 556-33-8-335 Rubber Air Spring

Product Overview

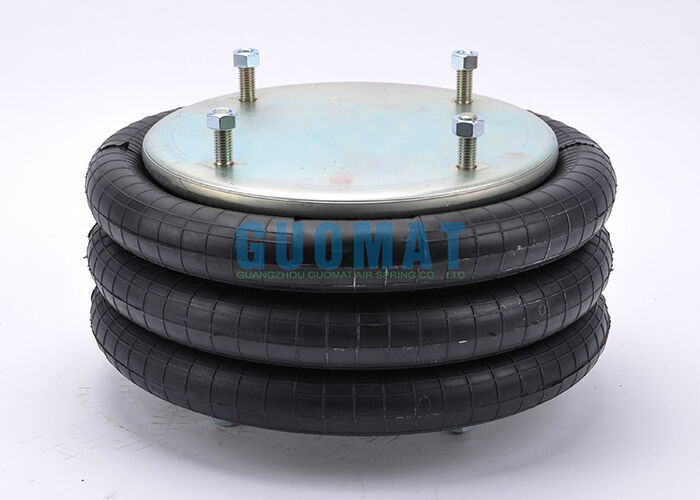

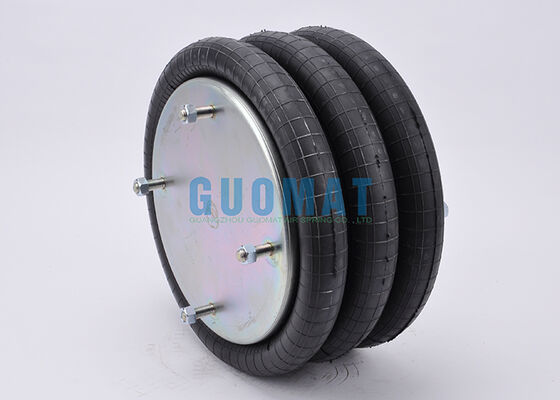

The GUOMAT 3B7843 is a triple convoluted air spring designed as a direct replacement for the Goodyear 3B14-457 (reference number 556-33-8-335). Constructed from rubber and metal components, this air bellows delivers reliable vibration isolation, shock absorption, and load support for industrial machinery and equipment applications.

Specifications

Brand	GUOMAT
GUOMAT Part Number	3B7843
Product Type	Triple Convoluted Air Spring
Product Name	Rubber Air Spring / Air Bellows
Reference Model	Goodyear 3B14-457
Reference Number	556-33-8-335
Main Material	Rubber and Metal Components
Function	Vibration Isolation, Shock Absorption, Load Support
Application	Industrial Machinery and Equipment

Compatible Part Numbers

This air spring is cross-referenced with the following OEM and aftermarket part numbers:

GOODYEAR 3B14-457
GOODYEAR 3B 14-457
GOODYEAR 3B14 457
GOODYEAR 556-33-8-335
GOODYEAR 556 33 8 335
GOODYEAR 556338335
AUTOMANN ABSP3B32RA-7843
CONTITECH 64581
CONTITECH FT530-35 455
CONTITECH FT 530-35 455

Technical Data

Top Plate Hole / Stud Qty	2
Top Plate Diameter	11.3
Top Plate C to C Diameter	7.75
Bottom Plate Hole / Stud Qty	4
Bottom Plate Diameter	11.3
Bottom Plate C to C Diameter	6.25
Bottom Plate Alignment	Parallel
Min Height	4.9
Max Height	20.5

Packaging and Delivery

GUOMAT provides export-oriented packaging to help protect rubber air springs and metal components during transportation.

Packaging: Individual protective packaging and suitable export cartons.
Delivery Options: Express courier, air freight, or sea freight, depending on order quantity and destination.
Lead Time: To be confirmed according to stock availability and order quantity.
OEM Services: Custom packaging and logo marking can be discussed according to customer requirements.

After-Sales Support

GUOMAT provides product selection assistance to help customers identify suitable air spring replacements for their equipment. Please provide the original part number, product dimensions, photographs, or equipment information when requesting a quotation. Our team can help check the available specifications before ordering.

A 12-month warranty can be offered subject to the applicable sales terms and conditions.
