Guomat F-30-3 Triple Convoluted Punch Press Air Spring Yokohama S-90-3R Air Bellow

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	F-90-3

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	F-90-3	Structure:	Triple Convoluted
Yokohama:	S-90-3R	Transport Package:	Strong Cartons
Brand:	GUOMAT	Warranty:	12 Months
Sample:	Available	Condition:	Brand New
Highlight:	Guomat Punch Press Air Spring

Guomat F-30-3 Triple Convoluted Punch Press Air Spring Yokohama S-90-3R Air Bellow

OEM Cross Reference

AIRSUSTECH Part No.: F-90-3

YOKOHAMA S-90-3R

YOKOHAMA S 90 3R

YOKOHAMA S-90-3

YOKOHAMA S 90 3

YOKOHAMA S90-3

YOKOHAMA S 90 3

YOKOHAMA S90-3R

F-90-3 Air Bellows Specifications

Guomat No.	Yokohama No.	Height			Maximum stroke(mm)	Max diameter(mm)
		Design Height(mm)	Max. Heigh(mm)t	Min Height(mm)
F-90-3	S-90-3R	76	106	46	±30	125

Standard Height,Internal Pressure 0.49 Mpa
Effective Area (cm2)	Volume(L)	Load (KN)	Dynamic Spring Parameters (N/mm)	Natural Frequency (Hz)	Max inner preesure limited (Mpa)	Burst inner pressure (Mpa)
63.5	0.5	3.1	103	2.9	0.88	3.9-4.9

GUOMAT Air Spring Properties

Maintenance-free
High operational reliability
Long service life
Resistance to different media
Simple, economical assembly

Other Type Air Suspensions for Punch Press

GUOMAT Part NO.	Japan YOKOHAMA Reference No.	Japan YOKOHAMA Reference No.	GUOMAT Part NO.	Japan YOKOHAMA Reference No.	Japan YOKOHAMA Reference No.
F-600-1	S-600-1R	S 600 1R	F-240-4	S-240-4R	S 240 4R
F-600-2	S-600-2R	S 600 2R	F-240-3	S-240-3R	S 240 3R
F-600-3	S-600-3R	S 600 3R	F-240-2	S-240-2R	S 240 2R
F-600-4	S-600-4R	S 600 4R	F-240-1	S-240-1R	S 240 1R
F-600-5	S-600-5R	S 600 5R	F-220-4	S-220-4R	S 220 4R
F-550-2	S-550-2R	S 550 2R	F-220-3	S-220-3R	S 220 3R
F-550-3	S-550-3R	S 550 3R	F-220-2	S-220-2R	S 220 2R
F-500-2	S-500-2R	S 500 2R	F-200-2	S-200-2R	S 200 2R
F-500-3	S-500-3R	S 500 3R	F-200-3	S-200-3R	S 200 3R
F-500-4	S-500-4R	S 500 4R	F-200-4	S-200-4R	S 200 4R
F-500-5	S-500-5R	S 500 5R	F-160-1	S-160-1R	S 160 1R
F-450-1	S-450-1R	S 450 1R	F-160-2	S-160-2R	S 160 2R
F-450-2	S-450-2R	S 450 2R	F-160-3	S-160-3R	S 160 3R
F-450-3	S-450-3R	S 450 3R	F-160-4	S-160-4R	S 160 4R
F-450-4	S-450-4R	S 450 4R	F-120-4	S-120-4R	S 120 4R
F-450-5	S-450-5R	S 450 5R	F-120-3	S-120-3R	S 120 3R
F-400-2	S-400-2R	S 400 2R	F-120-2	S-120-2R	S 120 2R
F-400-3	S-400-3R	S 400 3R	F-100-4	S-100-4R	S 100 4R
F-400-4	S-400-4R	S 400 4R	F-90-3	S-90-3R	S 90 3R
F-400-5	S-400-5R	S 400 5R	F-90-2	S-90-2R	S 90 2R
F-350-1	S-350-1R	S 350 1R	F-90-1	S-90-1R	S 90 1R
F-350-2	S-350-2R	S 350 2R	F-300-1	S-300-1R	S 300 1R
F-350-3	S-350-3R	S 350 3R	F-300-2	S-300-2R	S 300 2R
F-350-4	S-350-4R	S 350 4R	F-300-3	S-300-3R	S 300 3R
			F-300-4	S-300-4R	S 300 4R

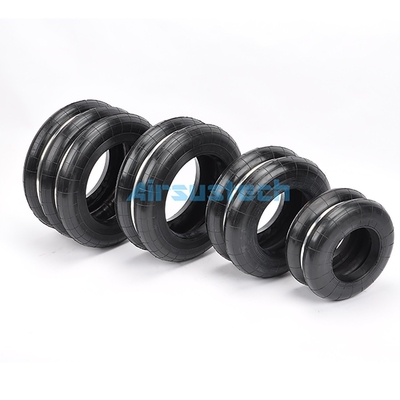

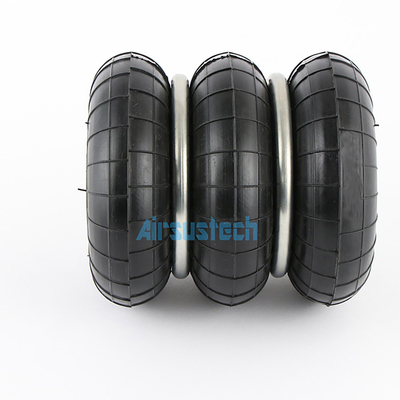

The Detailed Pictures of F-90-3

Guomat F-30-3 Triple Convoluted Punch Press Air Spring Yokohama S-90-3R Air Bellow 0

Company Profile

Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.
Guomat F-30-3 Triple Convoluted Punch Press Air Spring Yokohama S-90-3R Air Bellow 1

Factory Workshop
