S-300-2 Punching Press YOKOHAMA Air Spring F-300-2 Air Lift Suspension Replaceable

Product Details:

Place of Origin:	Guangzhou China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	F-300-2

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD99.9-299.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Warranty:	One Year	Pressure Ability:	0.2-0.88 MPa
Color:	Black	Bumper Block:	Without
Model:	Punch Air Spring	YOKOHAMA:	S-300-2
Convolutions:	2	Material:	Rubber Only

S-300-2 Punching Press YOKOHAMA Air Spring F-300-2 Air Lift Suspension Replaceable

GUOMAT NO.: F-300-2

YOKOHAMA Air Spring: S-300-2

YOKOHAMA Air Spring: S 300 2

YOKOHAMA Air Spring: S3002

YOKOHAMA Air Spring: S-300-2R

This item Detailed Parameter Table:

GUOMAT NO.	Reference No.	Hight H(mm)			Commonly Maximum Stroke(mm)	The Largest Diameter When Compressed(mm)
		Design High(mm)	Maximum High(mm)	Minimum Height(mm)
F-300-2	S-300-2	98	158	53	±40	360

Standard Height,Internal Pressure 0.49 M pa When The General Value					Using Maximum Internal Pressure (M pa)	Internal Pressure (M pa)
Effective Area (Cm2)	Volume(L)	Load (K n)	Dynamic Spring Parameters (N/Min)	Vibration Frequency (Hz)	Using Maximum Internal Pressure (M pa)	Internal Pressure (M pa)
710	7.4	34.7	745	2.3	0.88	3.9-4.9

Punch air spring is an elastic element used in punching machines (such as mechanical punches, hydraulic punches, etc.), which uses the characteristics of compressed air to achieve functions such as buffering, shock absorption, support or force balance.

1. Core functions
Buffering and shock absorption: absorb the impact force and vibration generated during the punching process to protect the mold and equipment structure.
Force balance: balance the weight of the slider or mold and reduce the load of the drive mechanism.
Height/pressure adjustment: change the stiffness and support height of the spring by adjusting the air pressure to adapt to different working conditions.

2. Working principle
By filling the airbag with compressed air, the compressibility of the gas is used to provide elastic force. When the punch slider is pressed down, the air spring is compressed and absorbs energy; when returning, the stored energy is released to assist in resetting. The greater the air pressure, the higher the spring stiffness.

3. Application scenarios
Mechanical punch: balance the weight of the slider and reduce the motor load.
Precision stamping: reduce vibration and improve the forming accuracy of the workpiece.
Continuous stamping production line: stabilize the feeding mechanism to avoid material deviation.
Mold protection: Prevent mold damage caused by overload.

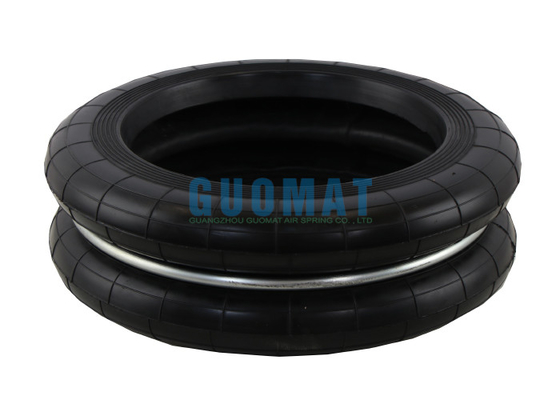

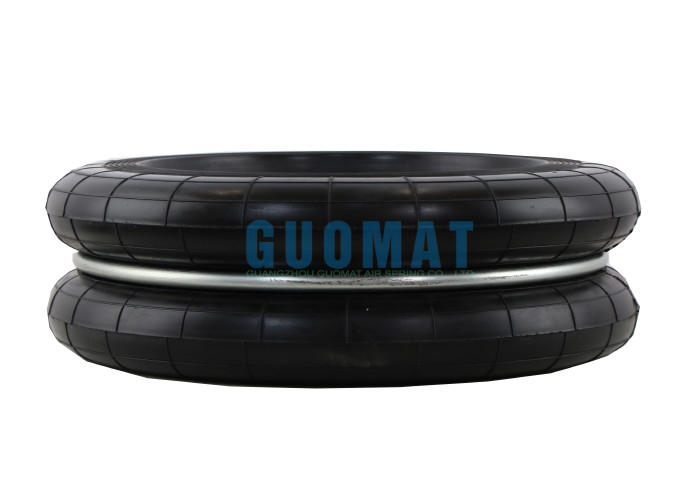

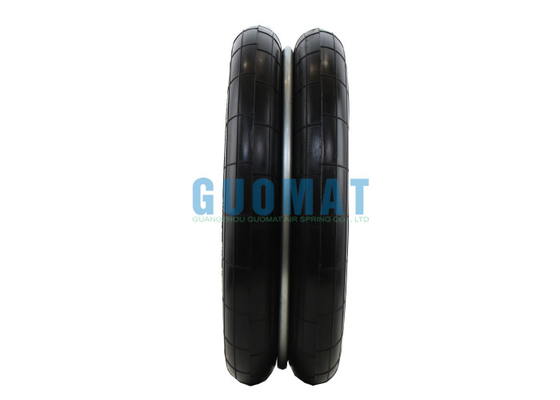

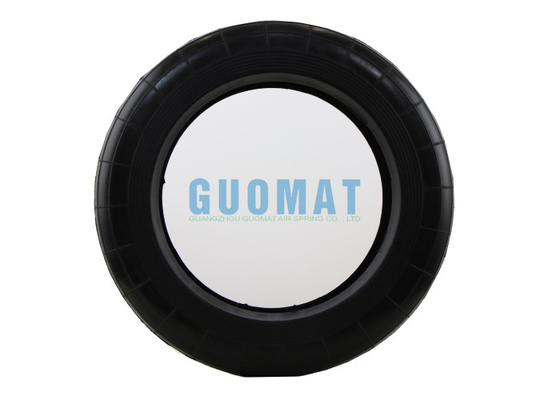

Product Details Pictures
S-300-2 Punching Press YOKOHAMA Air Spring F-300-2 Air Lift Suspension Replaceable 0
