PM/31062 Norgren Industrial Air Spring 6''X2 Rubber Bellows Suitable For Mechanical Equipment

Product Details:

Place of Origin:	UK
Brand Name:	Norgren
Certification:	ISO/TS16949:2009
Model Number:	PM/31062

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD159.9-299.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model:	Convoluted Air Bags	N.W.:	2.7 Kg
Pressure Ability:	0.2-0.8 M PA	Type:	Gas-Filled
Medium:	Compressed Air	Port Size:	G1/2
Stroke Length:	115mm	Series:	Air Bellows
Highlight:	Norgren industrial air spring , 6x2 rubber bellows air spring , mechanical equipment air spring

PM/31062 Norgren Industrial Air Spring 6"×2 Rubber Bellows

Product Specifications

Operating Pressure	0...8 bar, 0...116 psi
Port Size	G1/2
Nominal Diameter	6"
Number Of Convolutions	2
Stroke Length	115 mm
Operation	Single acting
Theoretical Force	10600 N
Height	175 mm
Length	115 mm
Width	175 mm
Weight	2.7 kg
Range	PM/31000
Series	Air bellows
Brand	IMI Norgren

Compatible Part Numbers

Norgren: PM/31062 / PM 31062 / PM31062

Nominal 0 (inch) x convolutions: 6"x2 / 6x2 / 6x2

Replacement Air Springs

Continental ContiTech: FD 76-14 1/2 M8
Continental ContiTech: FD 76-14 Dl G1/2
Continental ContiTech: FD 76-14 Dl G1/2 M8
Continental ContiTech: FD 76-14 D1 G1/2 CR
Continental ContiTech: FD 76-14 DI CR G1/2
Continental ContiTech Bellow: FD 76-14 / FD76-14 / FD7614
Firestone No.: WO1-R58-4070 / W01R58 4070 / W01R584070
Firestone Style: 6"x2
Dunlop FR: 6"x2 SP1646 (COMPOSITE)
Dunlop FR: 6"x2 SP2917 (ALUMINIUM)
Dunlop UK (Pneuride): A3 1330 02 01 / A313300201
Parker: 6"x2 9109001A
YS-AIR: YS-160-2VS / YS 160 2VS / YS1602VS

Norgren Air Spring Series

Model No.	Bellows No.	Max. Height (mm)	Port Size
PW31021	2¾" × 1	20	G1/4
PW31022	2¾" × 2	45	G1/4
PW31023	2¾" × 3	65	G1/4
PW31041	4½" × 1	40	G3/8
PW31042	4½" × 2	80	G3/8
PW31061	6" × 1	55	G1/2
PW31062	6" × 2	115	G1/2
PW31081	8" × 1	95	G3/4
PW31082	8" × 2	185	G3/4
PW31091	9¼" × 1	105	G3/4
PW31092	9¼" × 2	230	G3/4
PW31121	12" × 1	105	G3/4
PW31122	12" × 2	215	G3/4
PW31123	12" × 3	315	G3/4

Industrial Applications

Industrial air springs are primarily used in lifting and conveying platforms for load-bearing support, shock absorption, and height adjustment. By inflating or deflating the air springs, the platform achieves smooth lifting and automatic leveling, effectively absorbing the impact force of goods during loading and unloading, avoiding rigid collisions, and protecting the conveying structure and the safety of the goods.

Compared to traditional steel spring structures, air springs can automatically adjust stiffness and height according to load changes, maintaining stable operation even under heavy loads and frequent lifting conditions. This significantly reduces equipment vibration and noise, improves conveying accuracy, and extends the overall service life of the machine. They are widely used in automated logistics, warehouse sorting, and production line docking platforms.

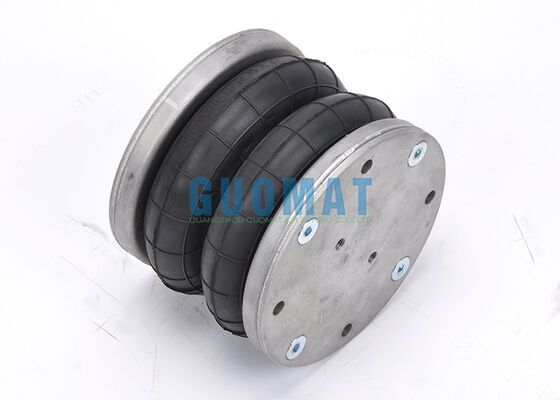

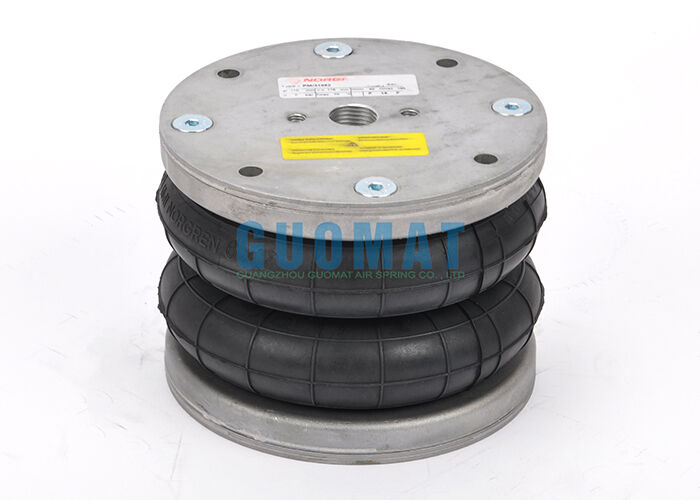

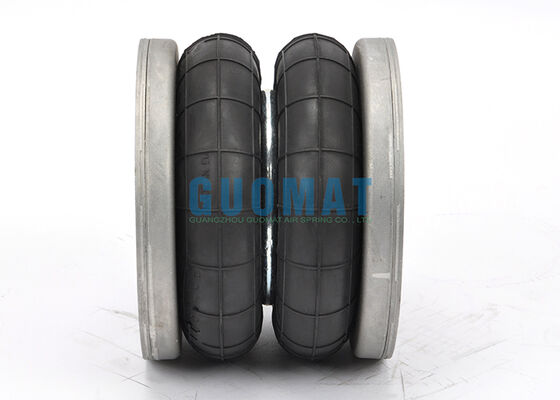

Product Images
