Natural Rubber W01-358-6897 Firestone Double Convoluted Air Spring AS-0058 Watson & Chalin

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B6897

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$59.9-69.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Model Name:	Rubber Air Spring	Material:	Rubber Bellow And Steel Cover
Warranty:	1 Year Warranty	MOQ:	10 Pieces
Spring Type:	Air Filled	Firestone:	W01-358-6897
Contitech:	FD 200-19 505	Goodyear:	2B9-229
Highlight:	Natural Rubber Firestone air spring , Double Convoluted air spring AS-0058 , Watson & Chalin suspension air spring

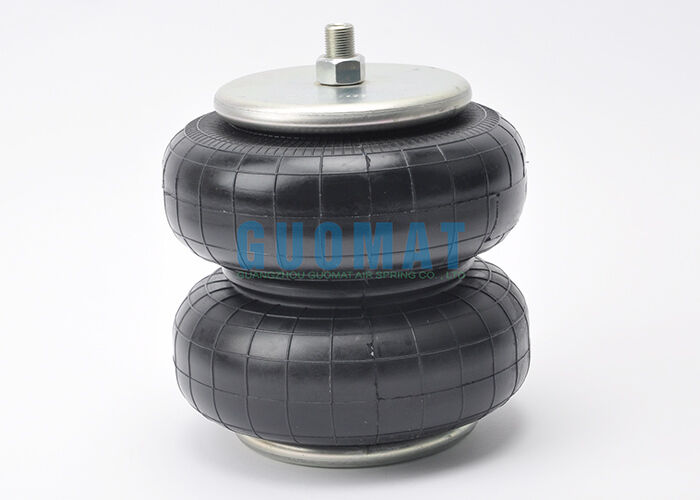

Natural Rubber W01-358-6897 Firestone Double Convoluted Air Spring AS-0058 Watson & Chalin

Product Overview

The GUOMAT 2B6897 Double Convoluted Air Spring is engineered as a durable replacement for Firestone Industrial Products W01-358-6897 suspension systems.

Manufactured with high-grade natural rubber compounds, this air spring is designed to deliver reliable load support and long-term elasticity under heavy-duty truck and trailer suspension conditions.

Unlike standard synthetic blends, the optimized natural rubber structure enhances flexibility and fatigue resistance, ensuring consistent suspension response even under repeated compression cycles.

Product Specifications

Brand: GUOMAT
Model Number: 2B6897
Warranty: 1 Year
Material: Natural Rubber

Cross-Reference Part Numbers

Firestone W01-358-6897 / W01 358 6897 / W013586897
Firestone WO1-358-6897 / WO1 358 6897 / WO13586897
Contitech FD 200-19 505 / FD200-19 505 / FD200-19505
Contitech 161300
Goodyear 2B9-229 / 2B 9-229
Goodyear 2B9-228 / 2B 9-228
Goodyear 578923202 / 578 92 3 202 / 578-92-3-202
Goodyear 556238325 / 556 23 8 325 / 556-23-8-325
Triangle 6325 / 4505
Waston&Chalin AS-0058
Brake&Wheel: M3528
Ridewell: 1003586897C

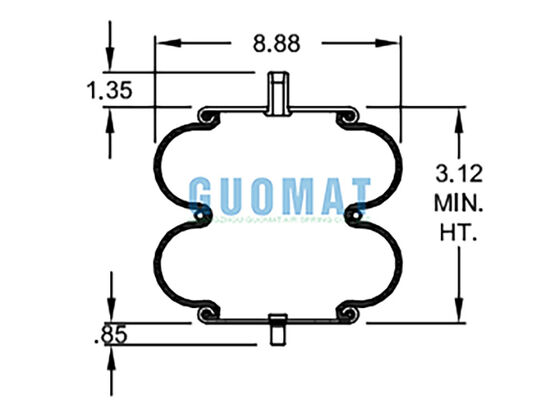

Technical Data

Top Cover Plate Screw (Nut) Tooth	1/4NPT, 3/4-16UNF
Bottom Cover Plate Screw (Nut) Tooth	1/2-13UNC

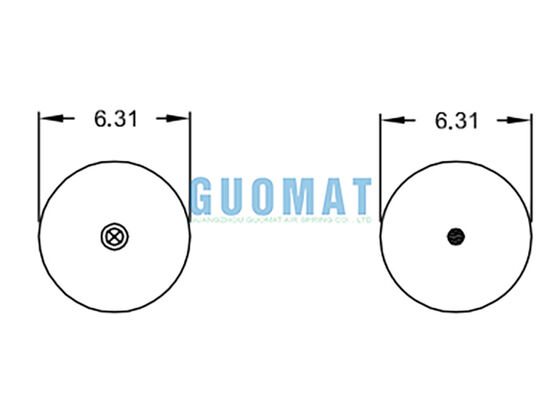

Top Cover Plate Diameter	160mm
Bottom Cover Plate Diameter	160mm
Rubber Bellows MAX Diameter	251mm
The Working Stroke	MAX 274mm to MIN 95mm
Maximum Height	274mm
Minimum Height	95mm
Compression Height	179mm

Key Features & Benefits

Premium Natural Rubber Construction: Reinforced natural rubber offers excellent rebound performance, crack resistance, and superior adaptability to temperature variation
Double Convoluted Stability: Dual convoluted structure improves vertical load distribution while maintaining compact installation height
Heavy-Duty Suspension Design: Suitable for trucks, trailers, and commercial vehicle suspension systems
Balanced Comfort & Durability: Supports heavy loads while reducing road shock transmission for smoother vehicle operation
