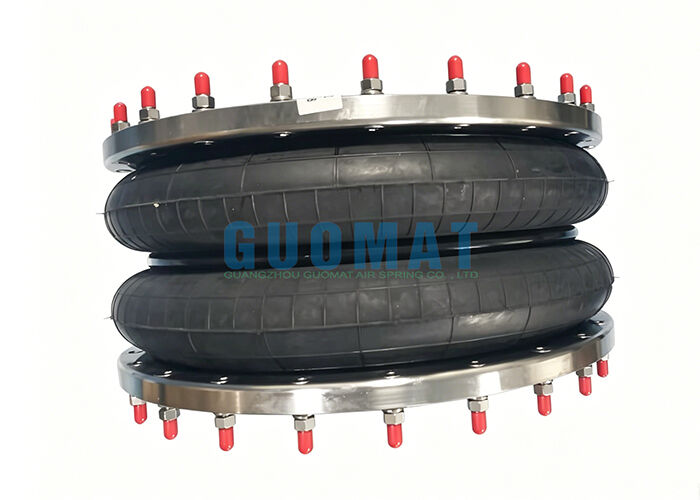

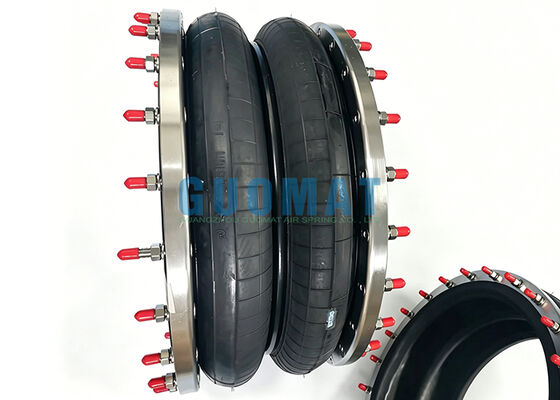

W01-M58-7532 Firestone Rubber Air Spring Style 29 Air Bellow With Bead Ring

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2H520217

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$159.9/pc-$199.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	T/T,Western Union,L/C
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Spring Material:	Natural Rubber	Warranty:	12 Months Warranty
Color:	Black	Package:	Brown Carton Box
Model Name:	Rubber Air Spring	Connection Method:	Bolt
Cross No.:	Firestone W01-M58-7532	Convolutions:	2
Highlight:	Firestone rubber air spring , air bellow with bead ring , style 29 air spring

W01-M58-7532 Firestone Rubber Air Spring Style 29 Air Bellow With Bead Ring

Product Overview

W01-M58-7532 Firestone Rubber Air Spring Style 29 Air Bellow With Bead Ring

Product Specifications

Brand: GUOMAT
Model: 2H520217
Item: Rubber Air Spring
Convolutions: 2
Warranty: 12 Months
Material: Rubber and Steel

Replacement Part Numbers

Firestone Style 29
Firestone W01-M58-7532 / WO1-M58-7532
Firestone W01 M58 7532 / WO1 M58 7532
Firestone W01M587532 / WO1M587532

Component Variations

W01-M58-7532 / W01 M58 7532 / W01M587532: Ribbed neck aluminum bead rings (equal spacing), 45 mm bolts, nuts, washers
W01-358-7275 / W01 358 7275 / W013587275: Rolled Plate Assembly, 1/2 blind nuts, 3/4BSP
W01-358-7902 / W01 358 7902 / W013587902: Rubber bellows only

Technical Specifications

Flange diameter: 517mm
Bolts: 24 (M-10X1.5)
Center distance between bolts: 482mm
Rubber bellow maximum outer diameter: 575mm
Maximum height: 330mm
Minimum height: 84mm
Design height: 240mm

Performance Data

Assembly Height (mm)	Volume @7BAR (cu cm)	EFF Area @7BAR (cm sq)	kN Force
			@3BAR	@4BAR	@5BAR	@6BAR	@7BAR
280	53863	1317	37.03	50.72	64.11	78.82	92.17
240	47704	1618	47.12	63.62	80.06	97.40	113.25
200	40443	1814	53.26	72.74	90.77	109.45	127.00
160	32306	1962	57.95	78.61	98.18	118.39	137.31
120	23824	2110	62.84	84.51	105.81	127.52	147.69
80	15280	2255	67.74	90.95	113.48	136.38	157.84
