WBZ 400-E1 Weforma Double Convoluted Type Air Bags G3/4 Air Fitting Rubber Air Spring

Product Details:

Place of Origin:	China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B6910

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	US$59.9-69.9/PC
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	3-7 Working Days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Product Name:	Rubber Air Bellows	Purpose:	For Replace / Repair
Warranty Period:	12 Months	Convolutions:	2
Structure:	Double Convolution	Package:	Brown Carton Box
Bumpers:	W/O Bumpers	Type:	Pneumatic Suspension Component
Highlight:	Weforma double convoluted air spring , G3/4 air fitting rubber spring , WBZ 400-E1 air bags

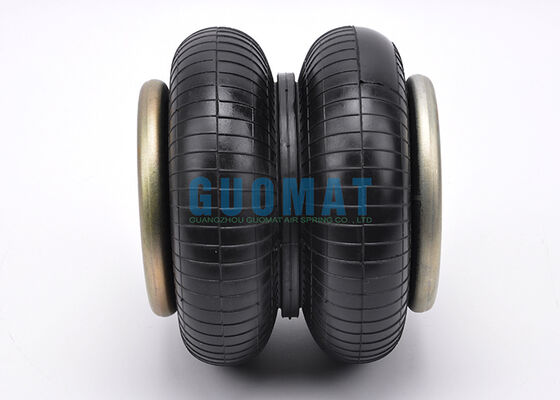

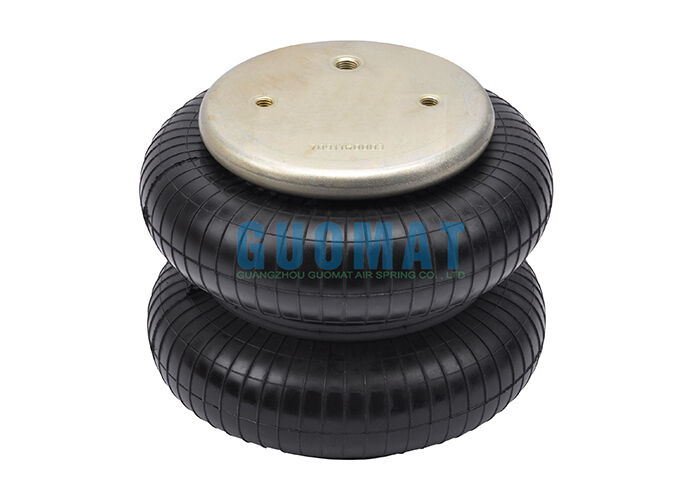

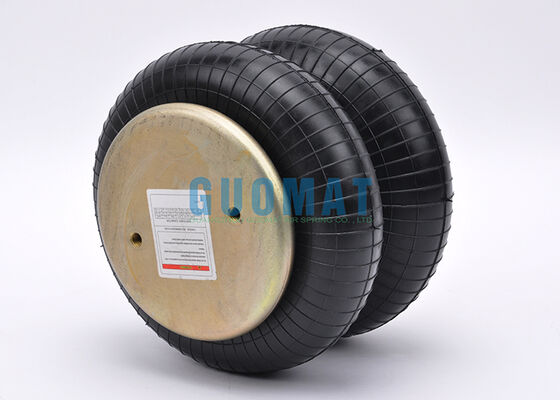

WBZ 400-E1 Weforma Double Convoluted Type Air Bags G3/4 Air Fitting Rubber Air Spring

High-performance rubber air spring designed for industrial machinery applications, featuring double convoluted construction and G3/4 air fitting.

Product Specifications

Type	Rubber Air Spring
Brand	GUOMAT
Model No.	2B6910
Warranty	12 Months
Material	Rubber and Steel
Color	Black
Application	For Industrial Machine
Other Name	Industrial Air Spring Bags

Compatible Part Numbers

WEFORMA WBZ400
WEFORMA WBZ 400
WEFORMA WBZ400-E1
WEFORMA WBZ 400-E1
WEFORMA WBZ400-E1 G3/4
WEFORMA WBZ 400-E1 G3/4

Technical Specifications

Cover plate diameter	161mm
Threaded hole	8M
Center distance between threaded holes	89mm
Air hole	G3/4
Center distance between air hole and threaded hole	44.5mm
Maximum height	275mm
Minimum height	75mm
Maximum outer diameter	250mm

Minimum pressure	0 bar
Return force to minimum height	≤200N
Overall weight with clamped plates	3.0KG

Pneumatic Application - Static Characteristic Values

Height H (mm)	Force F(kN) Pressure P (bar)							Volume (I)
Height H (mm)	3	4	5	6	7	8		Volume (I)
230	4.1	5.6	7.2	8.8	10.1	12.0	5.8
200	5.7	7.7	9.6	11.6	13.5	15.6	5.3
170	7.2	9.4	11.7	14.2	16.5	18.9	4.6
140	8.4	10.9	13.7	16.4	19.0	21.5	3.9
110	9.4	12.4	15.4	18.3	21.3	24.1	3.0
80	10.3	13.4	16.9	19.7	23.0	25.8	2.1

Air Spring Installation Guide

Proper installation is essential to ensure the safety, performance, and service life of an air spring. Whether used for industrial vibration isolation, truck suspension, bus suspension, or machinery applications, correct installation helps the air spring operate smoothly and reliably.

Installation Steps

Check the Air Spring Before Installation: Before installation, inspect the air spring for any damage, cracks, or deformation. Confirm that the air spring model, size, and mounting specifications match the equipment requirements.
Remove the Old Air Spring: Release all air pressure from the system before removing the old air spring. Carefully disconnect air fittings and mounting bolts to avoid damage to surrounding components.
Install the New Air Spring: Place the new air spring into the correct position and secure all bolts, fittings, and mounting hardware. Make sure the air inlet and mounting holes are properly aligned.
Connect the Air Supply: Connect the air hose and check that all fittings are tight and leak-free. Slowly add air pressure and ensure the air spring expands evenly.
Test After Installation: After installation, check the air spring height, pressure, and overall operation. Make sure there is no air leakage or abnormal movement during operation.
