231mm Height Rubber Air Bellow 2B-225 Airkraft Shock Absorbing Air Spring

Product Details:

Place of Origin:	China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B200-25

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	US$59.9-69.9/PC
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	3-7 Working Days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Product Name:	Rubber Air Spring	Position:	Front And Rear
Natural Width:	225mm	Working Temperature:	-40℃+70℃
Transport Package:	Carton	Layer Number:	2 Convolutions
Color:	Black	Usage:	Industrial
Highlight:	231mm rubber air bellow shock absorber , 2B-225 air spring with warranty , Airkraft shock absorbing air spring

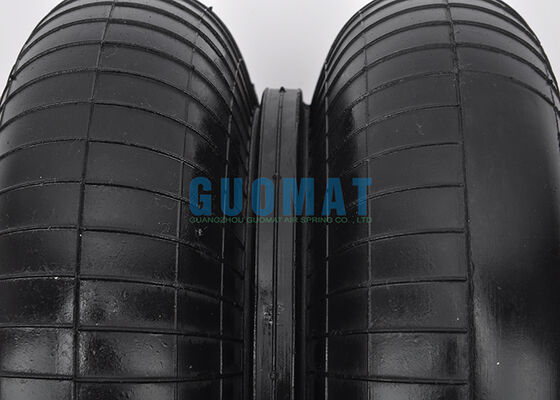

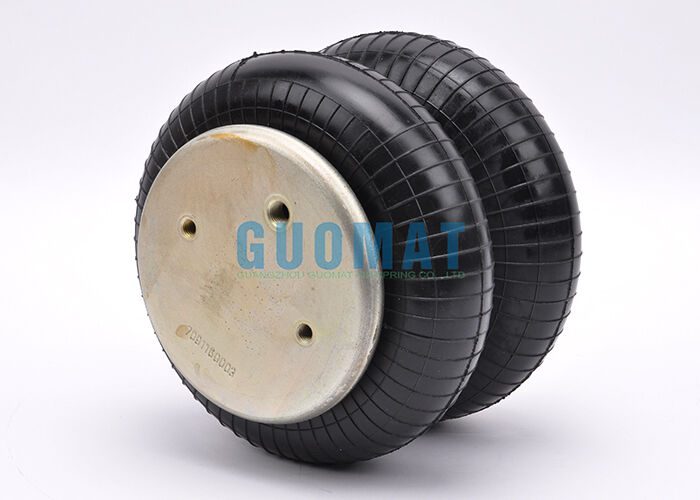

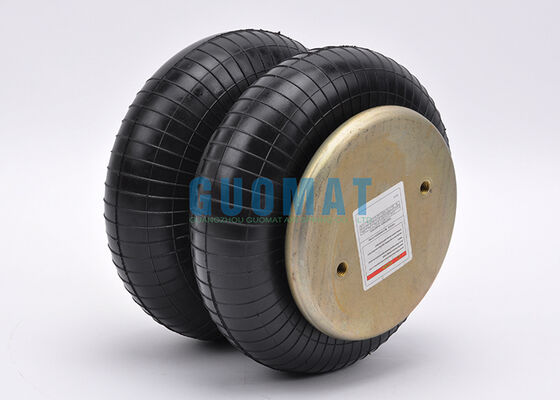

231mm Height Rubber Air Bellow 2B-225 Airkraft Shock Absorbing Air Spring

GUOMAT NO.2B200-25 Double Convoluted Rubber Air Bellow is a high-quality industrial air spring designed for shock absorption, vibration isolation, and air suspension applications. This model serves as a direct replacement for the Airkraft 2B-225 air spring, featuring durable rubber bellows construction and reliable load support performance.

With its 231mm height design, this air bellow delivers excellent flexibility and stability for industrial equipment requiring effective vibration control and smooth movement. The double convoluted construction provides greater vertical travel, improved vibration isolation, and enhanced durability compared to traditional mechanical springs.

Compatible Part Numbers

Manufacturer	Part Number	Manufacturer	Part Number
AIRKRAFT	2B-225	GOODYEAR	556 2 2 8656
FIRESTONE	W01-M58-7679	CONTITECH	FD 200-25 / 60382
FIRESTONE	W01-M58-7394	WEFORMA	WBZ 430-E1
CF GOMMA	20L/207776	FIRESTONE	W01-M58-6183
DUNLOP(FR)	S0 9280	CONTITECH	FD 200-25 /60555
GOODYEAR	2B9-269	WEFORMA	WBZ 430-E2
GART	T291/2B(291.2.260)	FIRESTONE	W01-358-6951
VIBRACOUSTIC	VSP2B12RA-10	GOODYEAR	2B9-257
PHOENIX	SP2B12R-A-10	FIRESTONE	W01-358-6952
DUNLOP(FR)	9''1/4X2 S0 9280	FIRESTONE	095.0327
FIRESTONE	20-2 T3 095.0256	GOODYEAR	556 2 2 8657
FIRESTONE	W01-968-6771	GOODYEAR	556 2 2 8406
CONTITECH	FD200-25/1/4 M10(62892)	FIRESTONE	W01-358-6948
PHOENIX	SP2B12R-A-3	CONTITECH	FD 200-25 429/161335
GOODYEAR	2B9-701/578 9 2 3206	GOODYEAR	2B9-251/578 9 2 3206
CF GOMMA	20L	FIRESTONE	W01-358-6943
DUNLOP(FR)	S09204	CONTITECH	FD 200-25 426/161332
GART	T291/2B(291.2.263)	GOODYEAR	2B9-250/578 9 2 3206

Technical Specifications

Height: 231mm

Diameter: 225mm

Mounting Options

Description	Air Hole	A
Rubber bellow only
Top/bottom plate M10 (Blind nuts)	1/4NPT	44.4mm
Top/bottom plate M10 (Blind nuts)	G1/4	44.4mm
Top/bottom plate M8 (Blind nuts) Bumper-96 mm	1/4NPT	44.4mm
Top/bottom plate M10 (Blind nuts)	M12X1,5	44.4mm
Top/bottom plate M8 (Blind nuts)	G3/4	38.1mm
Top/bottom plate M8 (Blind nuts)	G1/4	44.4mm
Top/bottom plate 3/8"-16 UNC (Blind nuts)	1/4NPT	44.4mm
Top/bottom plate 3/8"-16 UNC (Blind nuts)	G3/4	38.1mm
Top plate M12 (Bolts) Bottom Plate M8 (Blind nuts) Bumper 90 mm	1/4NPT	44.4mm
Top plate M12 (Bolts) Bottom Plate M8 (Blind nuts) Bumper 90 mm	M16X1,5	44.4mm
Top plate 1/2"-13 UNC (Bolts) Bottom Plate 3/8- 16 UNC Bumper 90 mm	1/4NPT	44.4mm
Top plate 1/2"-13 UNC (Bolts) Bottom Plate 3/8- 16 UNC	1/4NPT	44.4mm

Packaging & Delivery

Packaging Details:

Each air bellow is packed in a protective plastic bag
Individual export carton packaging
Product model and quantity marked on carton label
OEM logo and customized packaging available

Delivery Options:

Express delivery for urgent orders
Air freight for medium-size shipments
Sea freight for bulk orders

GUOMAT ensures safe packaging and reliable delivery worldwide.

Warranty

GUOMAT NO.2B200-25 comes with a 12-month warranty. The warranty covers manufacturing defects under normal working conditions. Correct installation and proper air pressure adjustment are recommended to achieve maximum service life.
