Double Convoluted Rubber Air Spring FD 614-26 DS Contitech Air Bellows Manufacturer 2B-370 Airkraft

Product Details:

Place of Origin:	China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B14.5X2T

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	US$159.9-199.9/PC
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	3-7 Working Days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Product Name:	Rubber Air Spring	OEM:	Acceptable
Spring Type:	Gas Filled	Color:	Black
Structure:	Double Convolution	Waist Ring:	With
Concoluted:	2	Warranty:	12 Months
Highlight:	Double Convoluted Rubber Air Spring , Contitech Air Bellows Manufacturer , 2B-370 Airkraft Air Spring

Double Convoluted Rubber Air Spring FD 614-26 DS Contitech Air Bellows Manufacturer 2B-370 Airkraft

Product Overview

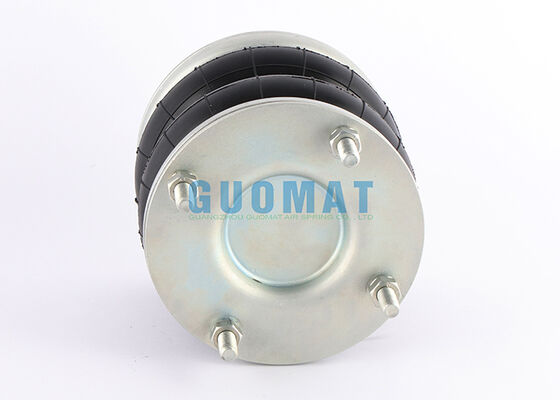

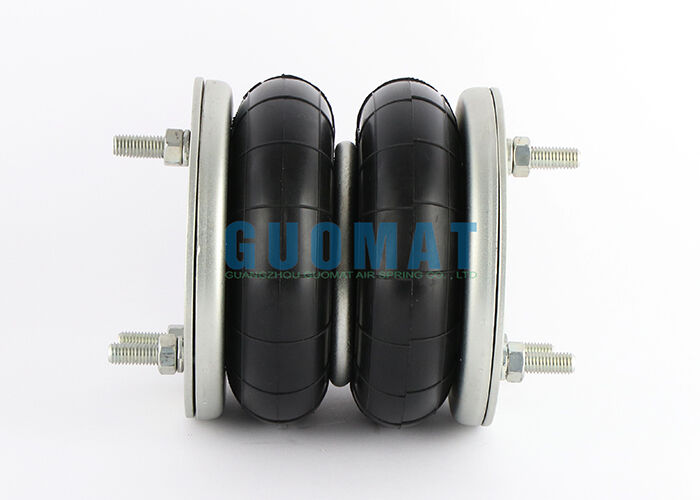

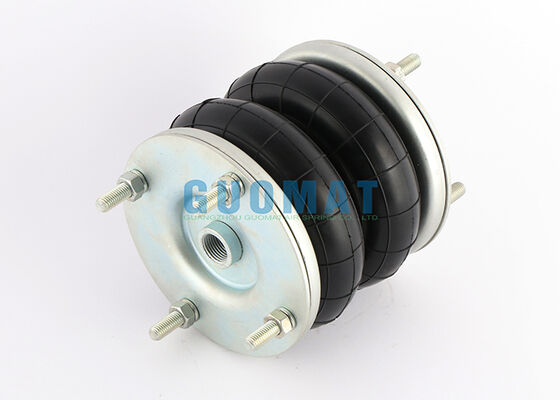

The GUOMAT 2B14.5X2T is a double convoluted rubber air spring engineered for industrial vibration isolation, shock absorption, lifting, and suspension applications. This high-performance air spring serves as a direct replacement for Contitech FD 614-26 DS and Airkraft 2B-370 type air springs.

Key Features

Durable rubber bellows construction with reinforced components
Double convoluted design for controlled vertical movement
Effective vibration isolation and shock absorption
Reliable performance under dynamic working conditions
Reduces mechanical vibration and impact transmission

Product Specifications

Product Type	Double Convoluted Air Spring
Brand	GUOMAT
Model	2B14.5X2T
Material	Rubber + Steel Components
Structure	Double Convoluted
Application	Industrial Vibration Isolation / Shock Absorption
Function	Suspension, Lifting, Isolation

Dimensions

Outer Diameter	368mm
Height	188mm
Center Distance Between Threaded Holes	282mm

Mounting & Connection Options

Description	Air Hole	Center Distance Between Threaded Hole and Air Hole
Rubber bellow only
Top/Bottom plate M10 (bolts)	M22x1.5	Center
Top/Bottom plate M10 (bolts)	M22x1.5	170mm
Top/Bottom side only clamp ring M10
Top/Bottom plate M10 (bolts)	RP1/2	Center
Top/Bottom plate M10 (bolts)	RP1/2	170mm

Compatible Part Numbers

AIRKRAFT 2B-370
CONTITECH FD614-26
FIRESTONE FLEX 14.5X2
DUNLOP(FR) SP1039(14''1/2X2)
CONTITECH FD 614-26
DUNLOP(FR) 14''1/2X2
DUNLOP(FR) 14''1/2X2,SP1988
CONTITECH FD614-26
DUNLOP(FR) SP1041/14''1/2X2
DUNLOP(FR) SP 1556
WEFORMA WBZ-G600
NORGREN M/31142(14''1/2X2)
FIRESTONE W01-R58-4064
CF GOMMA T21
DUNLOP(FR) SP 1988

Why Choose GUOMAT Air Springs?

GUOMAT specializes in manufacturing industrial air springs, rubber air bellows, air bags, and air suspension components. Our replacement air springs are engineered for applications requiring reliable vibration isolation and flexible pneumatic support.

We supply both standard replacement models and customized air springs based on drawings, dimensions, samples, or original part numbers, making GUOMAT air springs ideal for maintenance replacement and new equipment projects.
