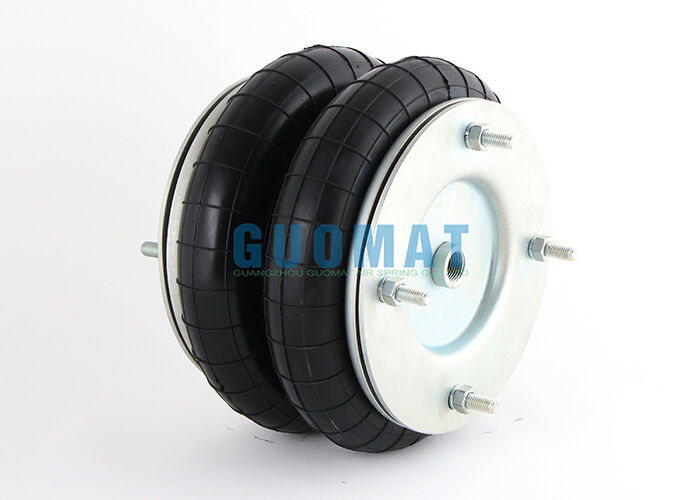

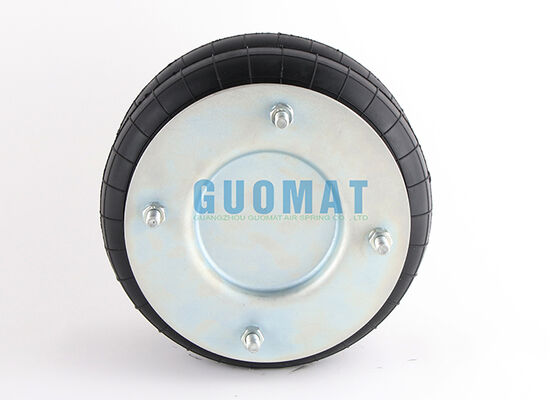

2B-400 Airkraft Rubber Air Spring 16''X2 Contitech FD 816-30 DS Air Spring For Plastic Machinery

Product Details:

Place of Origin:	China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B16X2T

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	US$159.9-199.9/PC
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	3-7 Working Days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Product Name:	Rubber Air Spring	Shock Absorber Type:	Gas-Filled
Bellow Number:	16X2	Design High:	190 Mm
Condition:	100% Brand-New	Main Material:	Rubber+Steel
Warranty:	1 Year	Other Name:	Suspension Air Bags
Highlight:	Rubber Air Spring for Plastic Machinery , 16x2 Contitech Air Spring , 2B-400 Airkraft Air Spring

2B-400 Airkraft Rubber Air Spring 16"X2 Contitech FD 816-30 DS Air Spring For Plastic Machinery

Product Overview

The GUOMAT 2B16X2T is a double convoluted rubber air spring engineered for industrial vibration isolation, shock absorption, lifting, and height adjustment applications. This model serves as a direct replacement for Airkraft 2B-400 and matches Contitech FD 816-30 DS air spring specifications.

Key Features

16-inch double-convoluted rubber bellows construction
Excellent flexibility and vibration isolation capabilities
Stable load-bearing performance under varying conditions
Adjustable spring characteristics via internal air pressure
Superior to conventional mechanical springs for industrial applications

Replacement Part Numbers

AIRKRAFT 2B-400
DUNLOP(FR) SP1194/1998
DUNLOP(FR) 16"X2 SP2340
DUNLOP(FR) 16X2
FIRESTONE W01-R58-4067
FIRESTONE W01 R58 4067
FIRESTONE W01R584067
DUNLOP(FR) SP 16"X2 SP1557
CONTITECH FD 816-30 DS
CONTITECH FD816-30 DS
NORGREN M/31162

Technical Specifications

Description	Air Hole	Center Distance
Rubber bellow only
Top/Bottom plate M10 (bolts)	M22X1,5	center
Top/Bottom plate M10 (bolts)	M22X1,5	170mm
Top/Bottom side only clamp ring M10
Top/Bottom plate M10 (bolts)	RP1/2	center
Top/Bottom plate M10 (bolts)	RP1/2	170mm
