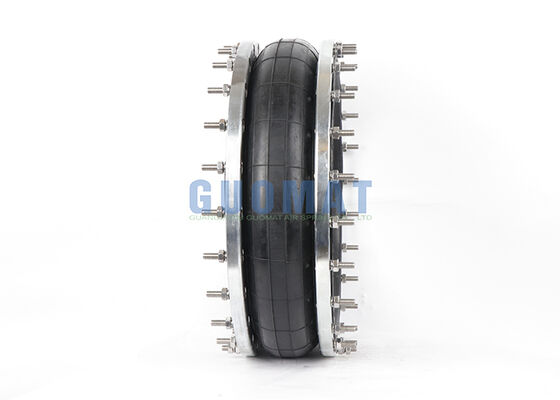

FS 960-12 RS Contitech Pneumatic Air Spring 1 7/8 bolts Industrial Air Spring Manufacturer

Product Details:

Place of Origin:	China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1H96012

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	US$399.9-499.9/PC
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	3-7 Working Days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Fitment Type:	Direct Replacement	Pressure Ability:	0.2-0.8 M PA
Flexibility:	Good	Color:	Black
Convolutions:	1	Shape:	Convoluted
Contitech:	FS960-12 RS	Bolts:	1 7/8
Highlight:	Contitech pneumatic air spring , industrial air spring with bolts , rubber air spring manufacturer

FS 960-12 RS Contitech Pneumatic Air Spring

Industrial air spring with 1 7/8" bolts designed for heavy-duty vibration isolation and pneumatic load support applications.

Product Specifications

Type	Flange Air Spring
Brand	GUOMAT
Model No.	1H96012
Warranty	1 Year
Material	Rubber and Steel
Color	Black
Air Spring Type	Double Convoluted
Application Type	Industrial Air Suspension

Cross-Reference Part Numbers

CONTITECH FS960-12
CONTITECH FS 960-12
CONTITECH FS960-12 RS
CONTITECH FS 960-12 RS

Technical Data

Flange diameter: 15.12 inches

Maximum outer diameter: 17.4 inches

Bolts: 18pcs x 3/8-24 UNF

Center distance between bolts: 13.78 inches

Maximum height: 6.9 inches

Minimum height: 2.0 inches

Minimum pressure: 0 psi

Return force to minimum height: ≤22 lbs

Overall weight with bead rings, bolts, nuts and washers: 11 lbs

Vibration Isolation Performance

Design height H: recommended 5in, minimum 4.3in

Pressure P (psi)	40	60	80	100	120	Vol. V (in³)
Force (Load) (lbs)	5780	8660	11550	14440	17330	754
Spring Rate (lbs/in)	3123	4529	5820	7176	8580	-
Natural Frequency (Hz)	2.2	2.2	2.2	2.2	2.2	-

Pneumatic Application Performance

Height H (in)	20 psi	40 psi	60 psi	80 psi	100 psi	120 psi	Vol. (in³)
6.0	2280	4570	6850	9130	11420	13700	892
5.5	2610	5210	7820	10430	13040	15640	822
5.0	2890	5780	8660	11550	14440	17330	754
4.5	3150	6300	9450	12600	15750	18900	675
4.0	3390	6780	10170	13570	16960	20350	591
3.5	3640	7270	10910	14550	18180	21820	500
3.0	3820	7640	11460	15280	19100	22920	412

GUOMAT Industrial Air Spring Advantages

GUOMAT specializes in manufacturing industrial air springs, rubber air bellows, air bags, and air suspension components for machinery and equipment applications.

Our industrial air springs are engineered for applications requiring:
