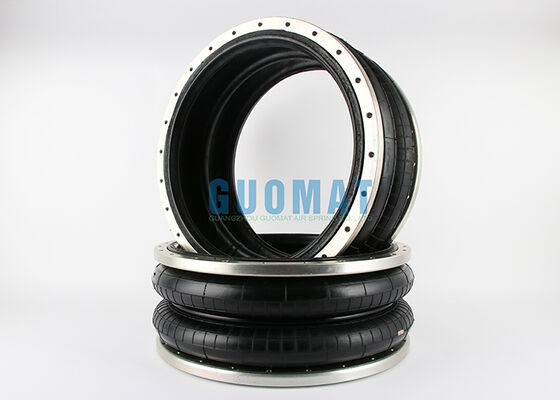

FD 960-22 RS Contitech Rubber Air Spring W01-358-7191 Firestone Industrial Air Bellows

Product Details:

Place of Origin:	China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B7191

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	US$399.9-499.9/PC
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	3-7 Working Days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Fitment Type:	Direct Replacement	Warranty Special:	12 Months
Application:	For Punching Machine	Convoluted:	Double
Material:	Natural Rubber	Contitech:	FD960-22 RS
Firestone:	W01-358-7191	Color:	Black
Highlight:	Contitech rubber air spring , Firestone industrial air bellows , W01-358-7191 air spring

FD 960-22 RS Contitech Rubber Air Spring W01-358-7191 Firestone Industrial Air Bellows

Product Overview

The FD 960-22 RS Contitech Rubber Air Spring is a high-performance industrial air bellow designed for demanding applications. This Firestone-compatible component offers reliable performance and durability in various industrial settings.

GUOMAT NO.: 2H7191

Cross-Reference Numbers

CONTITECH FD960-22
CONTITECH FD 960-22
CONTITECH FD960-22 RS
CONTITECH FD 960-22 RS
FIRESTONE W01-358-7191
FIRESTONE W01 358 7191
FIRESTONE W013587191
FIRESTONE STYLE 28

Configuration Options

Configuration	Part Number
Ribbed neck aluminum bead rings (equal spacing), 17/8 bolts, nuts, washers	W01-358-7191
Ribbed neck aluminum bead rings (unequal spacing) 17/8 b,n,w	W01-358-7194
Ribbed neck aluminum bead rings (equal spacing) 11/4 b,n,w	W01-358-7192
Rolled plate assembly*, 1/2 blind nut 3/4 NPT	W01-358-7271
Rubber bellows only	W01-358-7925

Technical Specifications

Minimum Pressure: 0 psi

Return Force to Minimum Height: ≤45 lbs

Overall Weight with Bead Rings, Bolts, Nuts and Washers: 19 lbs

Design Height H: Recommended 9.5 in, Minimum 8.7 in

Performance Data - Standard Configuration

Pressure p (psi)	40	60	80	100	120	Vol. V (in³)
Force (Load) (lbs)	5450	8180	10900	13630	16350	1655
Spring Rate (lbs/in)	1638	2303	3005	3633	4317	-
Natural Frequency (Hz)	1.7	1.7	1.6	1.6	1.6	-

Height vs Pressure Performance

Height H (in)	20 psi	40 psi	60 psi	80 psi	100 psi	120 psi	Vol. (in³)
10	2520	5040	7560	10080	12600	15130	1687
9	2890	5790	8680	11580	14470	17370	1566
8	3190	6380	9560	12750	15940	19130	1423
7	3420	6840	10260	13680	17100	20520	1265
6	3630	7260	10890	14510	18140	21770	1081
5	3800	7610	11410	15220	19020	22830	896
