F-600-5 Rubber Air Spring Bags Replacement S-600-5R YOKOHAMA Industrial Air Bellows

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	F-600-5

Payment & Shipping Terms:

Minimum Order Quantity:	6PCS
Price:	Negotiable
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Shock Absorber Type:	Gas-Filled	Spring Material:	Natural Rubber
Other Name:	Punch Air Spring	Country Of Origin:	China
Temperature:	-40℃+70℃	Warranty Special:	12 Months
Refer:	Yokohama S-600-5	Color:	Black
Highlight:	Rubber Air Spring Bags replacement , YOKOHAMA Industrial Air Bellows , F-600-5 Rubber Air Spring

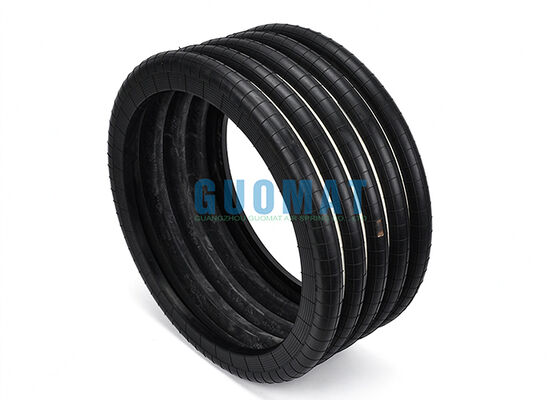

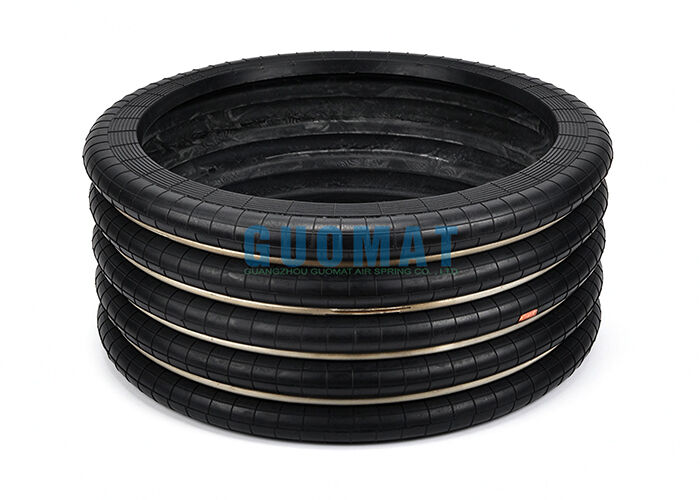

F-600-5 Rubber Air Spring Bags Replacement S-600-5R YOKOHAMA Industrial Air Bellows

GUOMAT F-600-5 is a rubber air spring designed as a replacement for YOKOHAMA S-600-5R. With a large nominal diameter of 600 mm, this industrial air bellows provides reliable vibration isolation, shock absorption, lifting and lowering support for heavy-duty machinery.

The air spring is made with reinforced rubber construction and durable metal components for demanding industrial applications. It can be used in press machines, stamping presses, lifting equipment, vibration isolation systems and other industrial machinery where controlled movement and load support are required.

The flexible rubber bellows work with compressed air to provide a smooth and adjustable spring force, helping reduce mechanical vibration and impact while supporting machine loads.

Product Identification

GUOMAT No.: F-600-5

Compatible Replacements

YOKOHAMA S-600-5
YOKOHAMA S-600-5R
YOKOHAMA S 600 5
YOKOHAMA S 600 5R
YOKOHAMA S6005
YOKOHAMA S6005R

Technical Specifications

Parameter	Value
Design Height (mm)	276
Max Height (mm)	456
Min Height (mm)	156
Common Maximum Travel (mm)	±113
Compression Max Outside Diameter (mm)	660
Effective Area (cm²)	2830
Volume (L)	76.6
Load (KN)	138.3
Dynamic Spring Constant (n/mm)	1010
Maximum Internal Frequency (Hz)	1.3
Maximum Internal Pressure (MPa)	0.69
Internal Pressure Failure (MPa)	3.9-4.9

Key Advantages

Replacement solution for YOKOHAMA S-600-5R
Large-diameter design for heavy-duty applications
Flexible rubber construction with strong load-support capability
Helps reduce vibration and mechanical shock
Suitable for lifting and lowering industrial equipment
GUOMAT replacement quality with customization available

Packaging & Delivery

Each air spring is packed in a protective poly bag and carton. Custom packaging and GUOMAT logo marking are available upon request. In-stock products can normally be shipped within 3-7 working days by DHL, FedEx, UPS, air freight or sea freight.

After-Sales Support

GUOMAT provides technical support, model confirmation and cross-reference assistance before and after purchase. 12-month warranty is available for our air spring products. Please contact us with the original part number, dimensions or application details for product confirmation.
