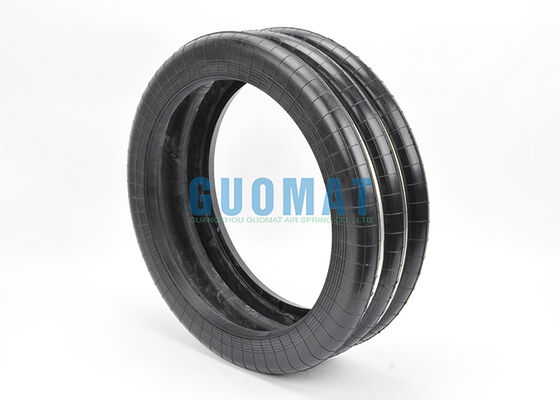

S-500-3R Triple Convoluted Air Spring YOKOHAMA Vibration Isolator With Steel Waist Ring

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	F-500-3

Payment & Shipping Terms:

Minimum Order Quantity:	6PCS
Price:	Negotiable
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Shock Absorber Type:	Gas-Filled	Oem:	Acceptable
Package:	Strong Cartons	Item:	Rubber Air Spring
Temperature Range:	-40℃+70℃	Bellows Type:	Triple Convoluted
Factory Warranty:	12 Months	Color:	Black
Highlight:	YOKOHAMA triple convoluted air spring , rubber air spring with steel ring , vibration isolator air spring

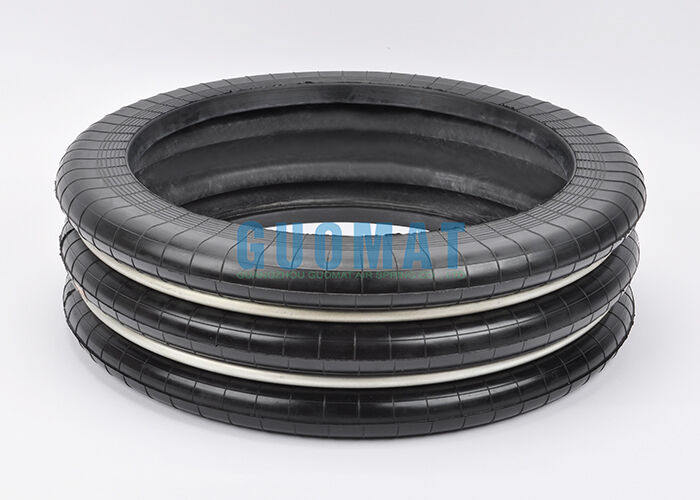

S-500-3R Triple Convoluted Air Spring YOKOHAMA Vibration Isolator With Steel Waist Ring

Product Overview

GUOMAT NO.: F-500-3
Replacement Reference: YOKOHAMA S-500-3R
Type: Triple Convoluted Air Spring
Nominal Diameter: 500 mm
Application: Punch Press & Stamping Equipment
Material: High-quality rubber with reinforced fabric
Structure: Rubber bellows with steel waist ring
Functions: Vibration isolation, shock absorption, lifting and lowering
Suitable for: Industrial machinery and heavy-duty applications

Technical Specifications

Parameter	Value
Design Height (mm)	160
Max Height (mm)	270
Min Height (mm)	90
Common Maximum Travel (mm)	±68
Compression Max Outside Diameter (mm)	560
Effective Area (cm²)	1965
Volume (L)	30.3
Load (KN)	96.3
Dynamic Spring Constant (n/mm)	1255
Maximum Internal Frequency (Hz)	1.8
Maximum Internal Pressure (MPa)	0.69
Internal Pressure Failure (MPa)	3.9-4.9

Installation Guide for Punch Press Air Bag

Prepare the installation area: Stop the punch press and completely release air pressure from the existing system. Ensure the machine is safely supported before removing the old air spring.
Remove the old air spring: Disconnect the air supply line and remove mounting bolts or fixing components. Check mounting surfaces for damage, dirt, or deformation.
Check the new air spring: Confirm that GUOMAT F-500-3 matches required dimensions and mounting configuration. Inspect rubber bellows, steel waist ring, air inlet, and mounting components for visible damage.
Position the air spring: Place the air spring vertically between designated mounting surfaces. Ensure bellows are centered and steel waist ring is correctly positioned.
Connect the air supply: Connect the air fitting and air line securely. Use recommended air pressure and ensure there are no leaks.
Inflate gradually: Supply compressed air slowly and allow the air spring to expand into its working position. Avoid sudden inflation or exceeding manufacturer's recommended pressure.
Check alignment and clearance: Operate the punch press at low speed through a controlled test cycle. Verify the air spring remains centered and doesn't rub against surrounding components.
Final inspection: Check air pressure, mounting bolts, air leakage, machine movement, and vibration isolation performance before returning to normal operation.

Installation Note: Confirm correct working height, air pressure, load capacity, and mounting dimensions according to specific punch press design and operating conditions.

Why Choose GUOMAT F-500-3?

GUOMAT air springs are manufactured using reinforced rubber materials and metal components to provide reliable performance in industrial applications. The F-500-3 offers a practical replacement solution for YOKOHAMA S-500-3R and can be supplied for standard replacement or customized industrial requirements.

We support OEM, replacement, and custom air spring requirements, including dimensional and connection specifications.
