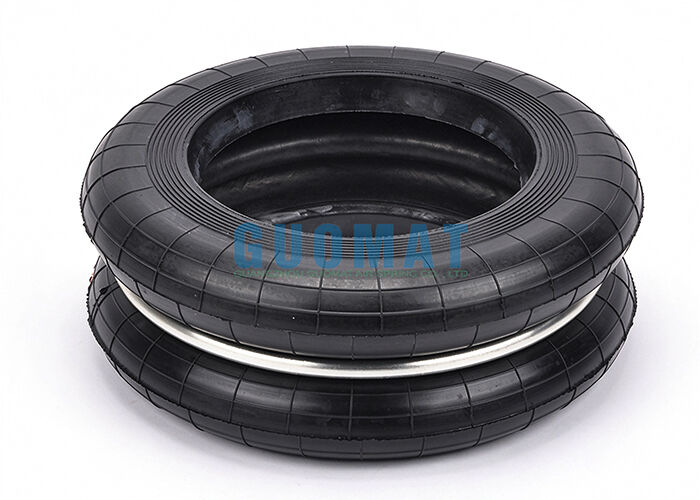

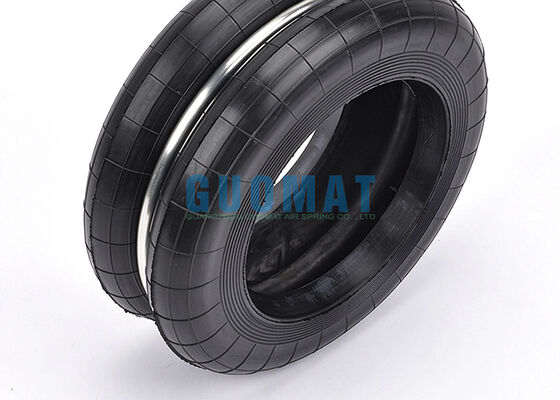

500mm Nominal Diameter S-500-2R YOKOHAMA Air Spring Replacement For Punch Press Equipment

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	F-500-2

Payment & Shipping Terms:

Minimum Order Quantity:	6PCS
Price:	Negotiable
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Shock Absorber Type:	Gas-Filled	Yokohama:	S-500-2/S-500-2R
Item Name:	Punch Press Air Spring	Number Of Convolutions:	Double
Spring Material:	Rubber And Steel	Stock:	In Stock
Supplier:	GUOMAT	Quality Assurance:	12 Months
Highlight:	YOKOHAMA air spring replacement , 500mm diameter air spring , punch press air spring

500mm Nominal Diameter S-500-2R YOKOHAMA Air Spring Replacement

The GUOMAT F-500-2 is a rubber industrial air spring designed as a direct replacement for YOKOHAMA S-500-2R air springs. With a 500mm nominal diameter, this heavy-duty component is specifically engineered for punch press machines and stamping equipment in demanding industrial environments.

Product Specifications

GUOMAT Part Number	F-500-2
Replacement For	YOKOHAMA S-500-2R / S-500-2 / S 500 2R / S 500 2 / S5002R / S5002

Technical Data

Parameter	Value
Design Height (mm)	102
Max Height (mm)	172
Min Height (mm)	57
Common Maximum Travel (mm)	±45
Compression Max Outside Diameter (mm)	560
Effective Area (cm²)	1965
Volume (L)	18.5
Load (KN)	96.3
Dynamic Spring Constant (n/mm)	2020
Maximum Internal Frequency (Hz)	2.3
Maximum Internal Pressure (MPa)	0.69
Internal Pressure Failure (MPa)	3.9-4.9

Applications

GUOMAT F-500-2 air springs are engineered for punch press equipment, stamping presses, and other industrial machinery requiring precise pneumatic lifting, lowering, cushioning, or vibration isolation. These components provide stable vertical movement and controlled force in applications where conventional mechanical springs are unsuitable.
