Single Convoluted Type Air Bellow Phoenix 1B04 Customize Rubber Air Spring With Flange Ring

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1H4060

Payment & Shipping Terms:

Minimum Order Quantity:	6PCS
Price:	US$49.9-59.9/PC
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	D/A,L/C,D/P,T/T
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Part:	Air Spring	Temperaturerange:	-40°C To 70°C
Port:	Huangpu, China	Buffer Block:	Without
Function:	Shock Absorption	Item:	Rubber Air Spring
Use:	For Equipment	Plates:	Crimped
Highlight:	Single Convoluted Rubber Air Spring , Phoenix 1B04 Air Bellow Flange Ring , Customize Rubber Air Spring

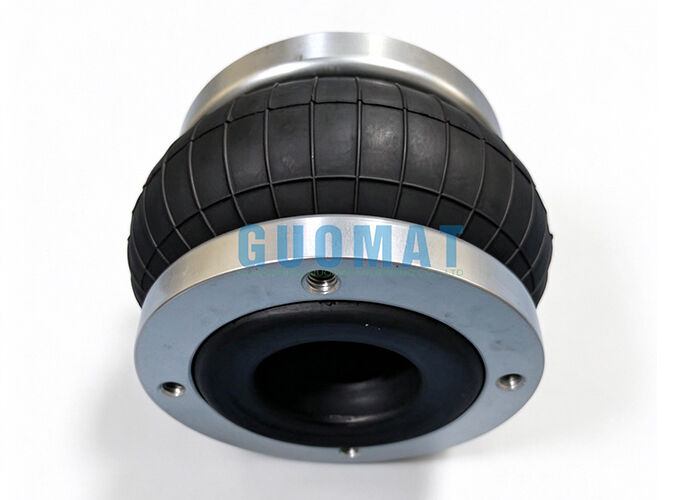

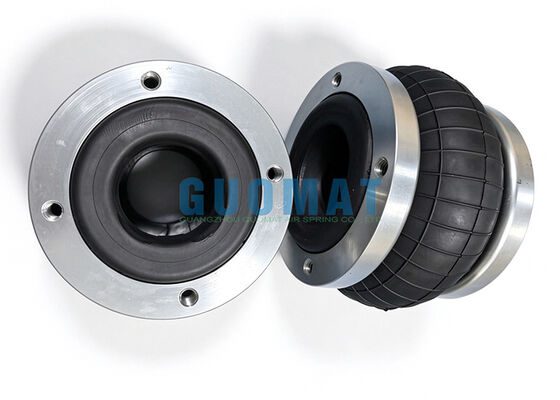

Single Convoluted Air Bellow Phoenix 1B04 — Custom Rubber Air Spring with Flange Ring

The GUOMAT 1H4060 is a single convoluted flange air spring engineered as a direct reference replacement for the Phoenix 1B04 rubber bellow. Featuring a durable rubber construction and an integrated flange ring, this air spring delivers reliable load support, vibration isolation, and long service life for industrial suspension and actuation applications.

Product Specifications

Type	Flange Air Spring
Brand	GUOMAT
Model No.	1H4060
Material	Rubber
Warranty	1 Year
Reference Rubber Code	Phoenix 1B04

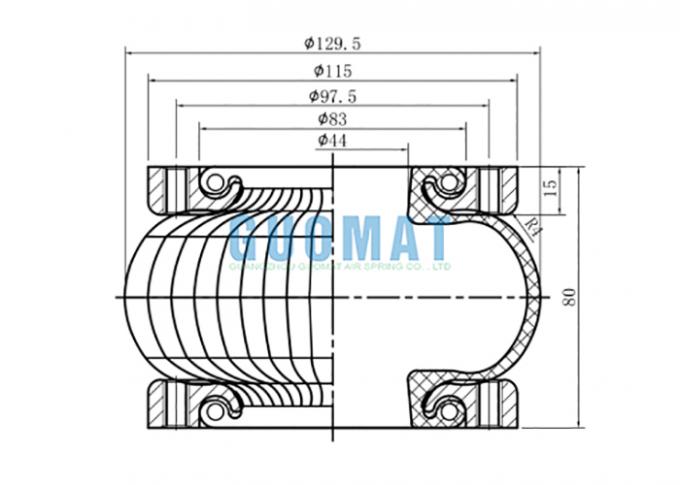

Technical Data

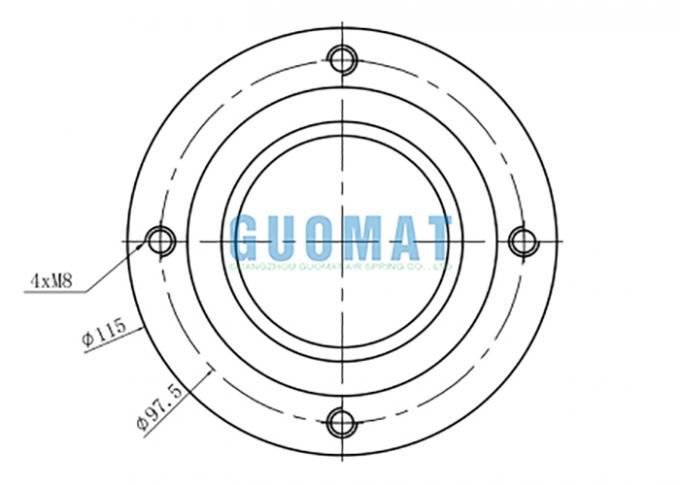

Threaded Holes	4 × M8
Center-to-Center Distance Between Threaded Holes	97.5 mm
Flange Diameter	115 mm
Natural Outer Diameter	129.5 mm
Flange Thickness	15 mm
Natural Height	80 mm

Performance Characteristics

Peel strength requirement: ≥ 25 kgf
Bench-test service life: exceeds 3 million cycles
Airtightness: pressure drop over 24 hours is less than 0.02 MPa
Internal burst pressure: no less than 2.0 MPa

Phoenix 1B04 Air Spring (Rubber Bellow)

Max. Loading Capacity	6.0 kN
Max. Lifting Pressure	8.0 bar
Max. Diameter	142 mm
Required Space	170 mm
Max. Height	110 mm
Min. Height	50 mm
Weight	0.24 kg

Static Height 75 mm — Load & Spring Rate Data

Pressure (bar)	Force (kN)	Spring Rate (N/cm)	Natural Frequency (Hz)
1	0.9	405	3.27
3	2.5	922	3.04
5	4	1377	2.93
7	6	1719	2.65

Phoenix SP1B04 Air Spring (With Cover Plate)

Threaded Holes	M8
Gas Hole	G1/4
Center-to-Center Distance Between Threaded Holes	22 mm
Cover Plate Diameter	92 mm
Outer Diameter	136 mm
Height	75 mm
Max. Outer Diameter	142 mm

Packaging & Delivery

Packaging: Individual protective packaging and export carton.
Shipping Methods: DHL, FedEx, UPS, air freight, or sea freight.
Availability: Stock and production lead time confirmed upon inquiry.
Custom Requirements: Customized packaging and product identification available upon request.
