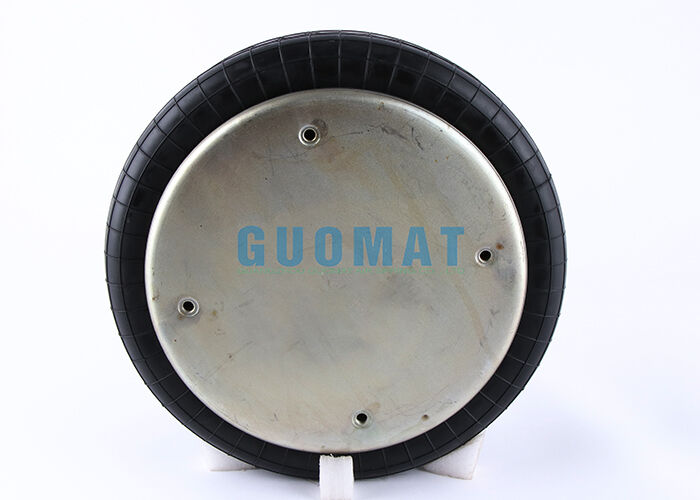

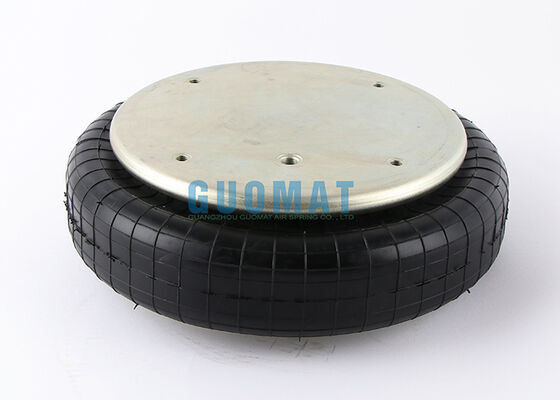

578-91-3-351 Goodyear Air Bellows 1B14-351 Air Spring Assembly Vibration Damping For Industrial Equipment

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1B7105

Payment & Shipping Terms:

Minimum Order Quantity:	6PCS
Price:	US$59.9-69.9/PC
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Contitech:	FS 530-14 447	Goodyear:	1B14-351/578-91-3-351
Manufacturer:	GUOMAT	Connection Method:	Blind Nuts
Type Of Goods:	Air Bellows	Delivery:	3~7 Days
Transport Package:	Cartons	Shock Absorption:	Excellent Vibration Damping
Highlight:	Goodyear 1B14-351 air spring assembly , 578-91-3-351 rubber air bellows , vibration damping air spring

The 578-91-3-351 Goodyear Air Bellows (1B14-351) is a single-convoluted rubber air spring assembly engineered for reliable vibration damping and load support in industrial equipment. Built with a four-layer reinforced rubber construction, it delivers dependable performance and long service life in demanding operating environments.

Product Specifications

Product Name	Rubber Air Spring
Description	Air Spring Shock Absorber Spring
GUOMAT NO.	1B7105
MOQ	1 PCS
Warranty	12 Months
Material	Rubber
Package	Carton
Port of Shipment	NINGBO, SHANGHAI, TIANJIN, GUANGZHOU, SHENZHEN
Shipment	By sea, by air, by DHL / FedEx

Compatible Part Numbers

GOODYEAR 1B14-351
GOODYEAR 578-91-3-351
AMERICAN CARRIER 8003007
AUTOMANN ABSP1B34A-7104
CONTITECH 64525
CONTITECH FS 530-14 447
FIRESTONE 7104
FIRESTONE W01-358-7104
FIRESTONE 7105
FIRESTONE W01-358-7105
TRIANGLE 4447
TRP AS71050

Technical Data

Top Plate Hole / Stud Qty	4
Top Plate Diameter	11.3
Top Plate C to C Diameter	6.25
Bottom Plate Hole / Stud Qty	4
Bottom Plate Diameter	11.3
Bottom Plate C to C Diameter	6.25
Bottom Plate Alignment	Parallel
Min Height	4.2
Max Height	7.2

Four-Layer Air Spring Construction

Every standard air spring consists of four layers:

The inner layer, which actually contains the air.
The first layer of fabric-reinforced rubber, applied at a specific angle.
The second layer of fabric-reinforced rubber, laid at a specific angle to the first layer.
The cover, which protects the bias fabric plies.

Single Convoluted Type Goodyear Air Spring — Model Reference

Bellows Number	Model Number	Upper Mounting Number	Lower Mounting Number
578-91-3-301	1B12-301	ASA-92-8-002	ASA-92-6-002
578-91-3-301	1B12-305	ASA-92-8-006	ASA-92-6-002
578-91-3-301	1B12-306	ASA-92-8-002	ASA-92-6-002
578-91-3-301	1B12-313	ASA-92-8-002	ASA-92-6-002
578-91-3-301	1B12-322	ASB-92-8-164	ASA-92-6-002
578-91-3-351	1B14-350	ASA-92-8-208	ASA-92-6-013
578-91-3-351	1B14-351	ASA-92-8-208	ASA-92-6-013
578-91-3-351	1B14-373	ASA-92-8-174	ASA-92-6-056
578-91-3-352	1B14-358	ASA-92-8-031	ASA-92-6-015
