Industry S-600-5 Rubber Air Spring for Gasbag Press Equipment

China Industry S-600-5 Rubber Air Spring for Gasbag Press Equipment supplier
Industry S-600-5 Rubber Air Spring for Gasbag Press Equipment supplier Industry S-600-5 Rubber Air Spring for Gasbag Press Equipment supplier Industry S-600-5 Rubber Air Spring for Gasbag Press Equipment supplier Industry S-600-5 Rubber Air Spring for Gasbag Press Equipment supplier

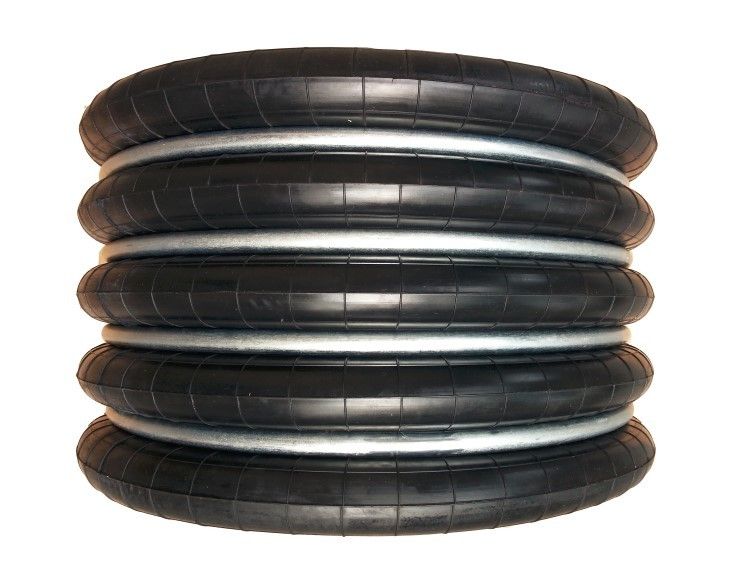

Large Image :  Industry S-600-5 Rubber Air Spring for Gasbag Press Equipment

Product Details:

Place of Origin: China
Brand Name: GUOMAT
Certification: ISO.TS16949
Model Number: S-600-5

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: $499-799/pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,paypal or others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Rubber And Stainless Steel Yokoham: S-600-5
GUOMAT: F-600-5 Layer Number: 5 Convolution
Using Maximum Internal Pressure: 0.69 Mpa Vibration Frequency: 1.3 Hz
Net Weight: 21.75 KG Gross Weight: 23 KG

Air Spring Industry S-600-5 Rubber Air Spring for Gasbag Press Equipment





This  GUOMAT F-600-5 Punch air spring are five Convolutions Reference to Yokohama No. S-600-5 . Punch air spring air cushion made of natural rubber through a series of processes made of rubber bladder, used in the punch on the air spring manufacturing process than ordinary industrial air springs to be much more complex, so the cost will be Higher, the price is naturally much higher than the other. In the middle with stainless steel rims, with four rims.



Net Weight:21.75 KG



Gross Weight:23 KG



Package Size:650mm*360mm*360mm





Details:

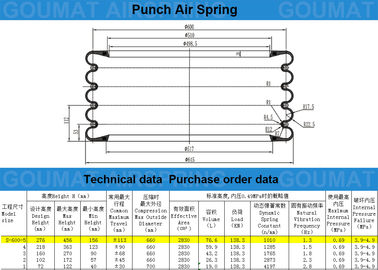

GUOMAT NO. Reference No. Hight H(mm) Commonly Maximum Stroke(mm) The Largest Diameter When Compressed(mm)
Design High(mm) Maximum High(mm) Minimum Height(mm)
F-600-5 S-600-5 276 456 156 ±113 660



Standard Height,Internal Pressure 0.49 M pa When The General Value Using Maximum Internal Pressure (M pa) Internal Pressure (M pa)
Effective Area (Cm2) Volume(L) Load (K n) Dynamic Spring Parameters (N/Min) Vibration Frequency (Hz)
2830 76.6 138.3 1010 1.3 0.69 3.9-4.9





Features





  • By changing the internal pressure by compressing the air, the air spring withstands a wide range of pressure changes, so it is used in punching machines where the pressure range is very different.
  • It can be used with height adjustment valve, which can always maintain a constant height to prevent load fluctuations.
  • It can be used together with auxiliary tank and throttle valve to obtain excellent damping effect. And it can reduce the resonance amplitude.
  • This air spring is simple in structure and easy to install and disassemble.
  •
  • The bellows type has less deformation of the rubber film during operation (expansion and contraction), so that excellent durability can be obtained.
  • The main component is rubber, without any sliding parts, so it can be easily maintained without refueling.
  • this air spring compared with other types of air springs, large stroke installation height can be kept low.
  • Because the air is used as an elastic body, it can be flexibly subjected to a large load by damping the compressed air. Such air springs do not allow other springs to use together.

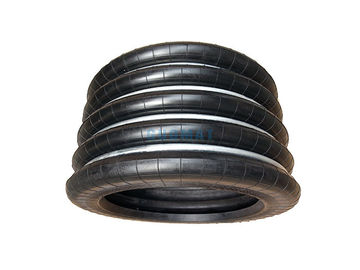

Industry S-600-5 Rubber Air Spring for Gasbag Press Equipment

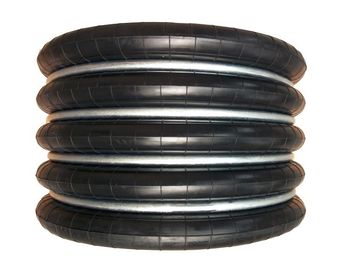

Industry S-600-5 Rubber Air Spring for Gasbag Press Equipment

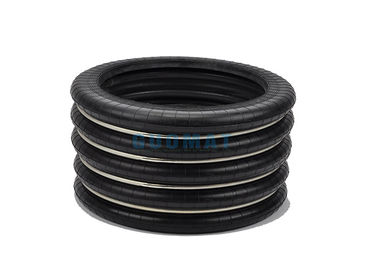

Industry S-600-5 Rubber Air Spring for Gasbag Press Equipment
