Place of Origin: | Guangdong,China |
Brand Name: | GUOMAT |
Certification: | ISO/TS16949:2009 |
Model Number: | S-400-3R |
Minimum Order Quantity: | 1 pc |
---|---|
Price: | Negotiable |
Packaging Details: | strong carton box or as customers need |
Delivery Time: | 2-8 work days |
Payment Terms: | T/T, Western Union,paypal or others |
Supply Ability: | 1000pcs/week |
Material: | Rubber And Stainless Steel | Yokohama: | S-400-3R |
---|---|---|---|
GUOMAT: | F-400-3 | Layer Number: | 3 Convolution |
Using Maximum Internal Pressure: | 0.69 Mpa | Vibration Frequency: | 1.8 Hz |
Warranty: | 12 Months | ||
Highlight: | triple convoluted air spring,double convoluted air spring |

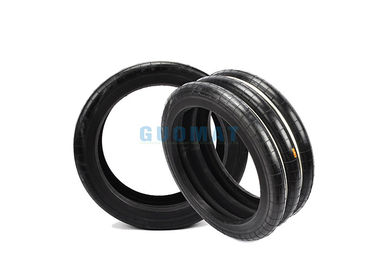

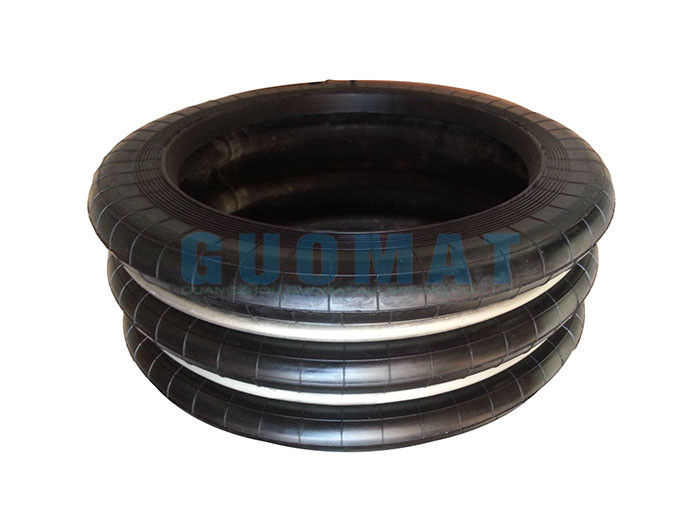

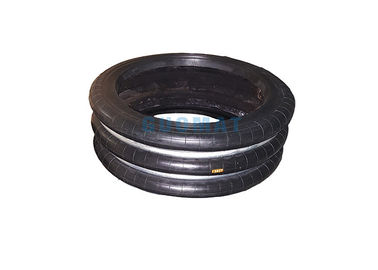

Triple Convoluted Punch Press Rubber Air Bag GUOMAT F-400-3 Cross YOKOHAMA S-400-3

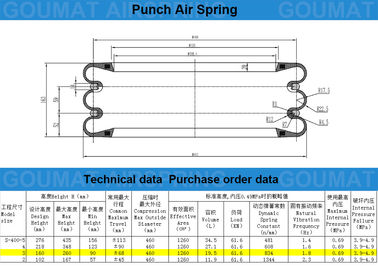

This item Detailed Parameter Table 1:
GUOMAT NO. | Reference No. | Hight H(mm) | Commonly Maximum Stroke(mm) | The Largest Diameter When Compressed(mm) | ||
Design High(mm) | Maximum High(mm) | Minimum Height(mm) | ||||
F-400-3 | S-400-3 | 160 | 260 | 90 | ±68 | 460 |
This item Detailed Parameter Table 2:
Standard Height,Internal Pressure 0.49 M pa When The General Value | Using Maximum Internal Pressure (M pa) | Internal Pressure (M pa) | ||||
Effective Area (Cm2) | Volume(L) | Load (K n) | Dynamic Spring Parameters (N/Min) | Vibration Frequency (Hz) | ||
1260 | 19.5 | 61.6 | 834 | 1.8 | 0.69 | 3.9-4.9 |
Description of This F-400-3 air spring
This F-400-3 punch air spring is produced by the GUOMAT factory. The model of the YOKOHAMA punch air spring is S-400-3, the size is the same, they can be common. This GUOMAT NO.F-400-3 punch air spring warranty time for one year. Our product quality is guaranteed. We are exported to all over the world, the customer response is very good. Made in China air springs can be used with confidence, we are also very competitive in terms of price.
Payment & Shipping Terms:
You can pay for the item by T/T, Western Union,Paypal and Others.We always deliver the air spring by DHL, UPS,FEDEX and TNT.They are all can very quickly to deliver the package to you.The best hot sale air spring has good in stock then we can send it to you as soon as possible.
GUOMAT Has Punch Press Air Spring Cushion /Air Shock Absorber Part NO. Below:
GUOMAT Part NO. | Japan YOKOHAMA Reference No. | Japan YOKOHAMA Reference No. | GUOMAT Part NO. | Japan YOKOHAMA Reference No. | Japan YOKOHAMA Reference No. |
F-600-1 | S-600-1R | S 600 1R | F-240-4 | S-240-4R | S 240 4R |
F-600-2 | S-600-2R | S 600 2R | F-240-3 | S-240-3R | S 240 3R |
F-600-3 | S-600-3R | S 600 3R | F-240-2 | S-240-2R | S 240 2R |
F-600-4 | S-600-4R | S 600 4R | F-240-1 | S-240-1R | S 240 1R |
F-600-5 | S-600-5R | S 600 5R | F-220-4 | S-220-4R | S 220 4R |
F-550-2 | S-550-2R | S 550 2R | F-220-3 | S-220-3R | S 220 3R |
F-550-3 | S-550-3R | S 550 3R | F-220-2 | S-220-2R | S 220 2R |
F-500-2 | S-500-2R | S 500 2R | F-200-2 | S-200-2R | S 200 2R |
F-500-3 | S-500-3R | S 500 3R | F-200-3 | S-200-3R | S 200 3R |
F-500-4 | S-500-4R | S 500 4R | F-200-4 | S-200-4R | S 200 4R |
F-500-5 | S-500-5R | S 500 5R | F-160-1 | S-160-1R | S 160 1R |
F-450-1 | S-450-1R | S 450 1R | F-160-2 | S-160-2R | S 160 2R |
F-450-2 | S-450-2R | S 450 2R | F-160-3 | S-160-3R | S 160 3R |
F-450-3 | S-450-3R | S 450 3R | F-160-4 | S-160-4R | S 160 4R |
F-450-4 | S-450-4R | S 450 4R | F-120-4 | S-120-4R | S 120 4R |
F-450-5 | S-450-5R | S 450 5R | F-120-3 | S-120-3R | S 120 3R |
F-400-2 | S-400-2R | S 400 2R | F-120-2 | S-120-2R | S 120 2R |
F-400-3 | S-400-3R | S 400 3R | F-100-4 | S-100-4R | S 100 4R |
F-400-4 | S-400-4R | S 400 4R | F-90-3 | S-90-3R | S 90 3R |
F-400-5 | S-400-5R | S 400 5R | F-90-2 | S-90-2R | S 90 2R |
F-350-1 | S-350-1R | S 350 1R | F-90-1 | S-90-1R | S 90 1R |
F-350-2 | S-350-2R | S 350 2R | F-300-1 | S-300-1R | S 300 1R |
F-350-3 | S-350-3R | S 350 3R | F-300-2 | S-300-2R | S 300 2R |
F-350-4 | S-350-4R | S 350 4R | F-300-3 | S-300-3R | S 300 3R |
F-300-4 | S-300-4R |
S 300 4R |
this air spring can use for the Product Attributes of the press machine:
Type:
Punch Shape:
Slider Movement:
Slider Drive Mechanism:
Controlling Mode:
Automatic Grade:
Power Source:
Precision:
Certification: ISO 9001
Condition: New
Transport Package: Cartons
Trademark: GUOMAT
Origin: Guangzhou China
Color Black
3 Storey
