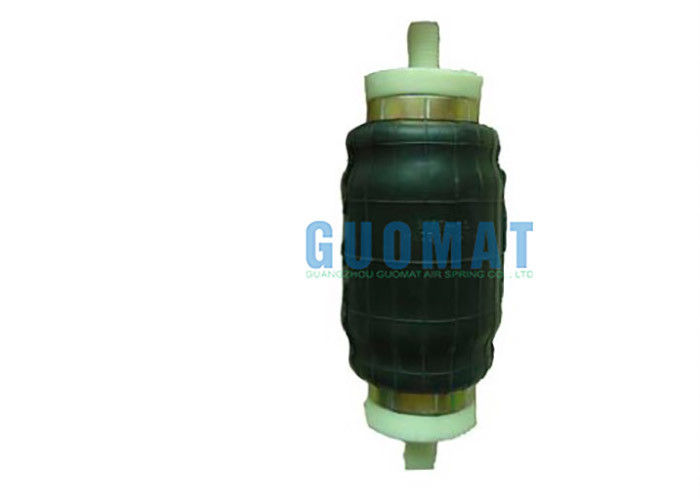

CONTI Sleeve Type Suspension Air Spring SK 37-10 P02 For Small Machine

CONTI Sleeve Type Suspension Air Spring SK 37-10 P02 For Small Machine

  • CONTI Sleeve Type Suspension Air Spring SK 37-10 P02 For Small Machine
  • CONTI Sleeve Type Suspension Air Spring SK 37-10 P02 For Small Machine
  • CONTI Sleeve Type Suspension Air Spring SK 37-10 P02 For Small Machine
CONTI Sleeve Type Suspension Air Spring SK 37-10 P02 For Small Machine
Product Details:
Place of Origin: Guangdong , China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: SK 37-10 P02
Payment & Shipping Terms:
Price: Negotiable
Packaging Details: Strong Carton Box or as Customer's Require
Delivery Time: 2 - 8 Work Days
Payment Terms: T/T, Western Union,Paypal and Others
Supply Ability: 10000 pcs / week
Contact Now
Detailed Product Description
Main Material: Steel Rubber Position: Seat Or Other
Net Weight: 0.41 Kg Other Name: Harley Motorcycle AIR Spring
Make: Small Machine OEM 1: SK 37-10 P02
Status: Brand New Spring Type: Gas Filled
High Light:

rear air suspension

,

rear air springs

CONTI Sleeve Type Air Spring SK 37-10 P02 Suspension Air Spring For Small Machine


Cross OEM Of this item:

GUOMAT:G
3089

CONTITECH SK37-10 P02

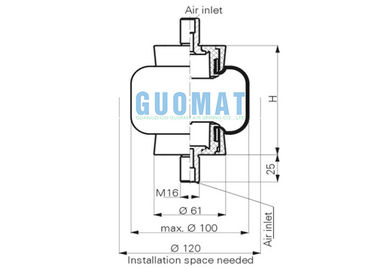

Min. pressure:0,3 bar

Return force to min. height:≤ 150 N.

Overall weight with clamped plates:0.41 kg

Max Hight=160mm

Min Highn=65mm

Vibration isolation - dynamic characteristic values

Design height H: recommended 60mm.

Pneumatic application - static characteristic values Force F [kN]

With brass stud on both ends, G 1/8 air inlet



Service instructions M16 = 11-14 Nm
G 1/8 = Handtight plus one turn




Descripition and Specifications Of SK37-6 P02:



Package Size: 3.6*3.6*5(in.) Package Size: 92mm*92mm*127mm
Net Weight: 0.41KG Lower Plate OD: 61 MM
Gross Weight: 0.8 KG Extended Height : 160 MM
Stud M16 Upper Plate OD : 61MM
air inlet G 1/8 Rubber Bellows Max OD 100MM
Installation space needed 120mm Stroke 95mm





Packing List of SK37-6 P02 Air Spring :



Description PCS Net Weight Package Weight Gross Weight Length
(cm)
Width
(cm)
Height
(cm)
Measurememt
(cbm)
Air Suspension 1 0.41 kg 0.4 kg 0.81kg 12 9.2 9.2 0.00102
Shipping Terms By DHL/UPS/FEDEX/TNT/AIRWAY/LCL/FCL or By Sea. It will take about 1 to 4 working days to reach By Express.
Payment Terms T/T, Western Union,Paypal and Others



CONTI Sleeve Type Suspension Air Spring SK 37-10 P02 For Small Machine 0CONTI Sleeve Type Suspension Air Spring SK 37-10 P02 For Small Machine 1
