Home ProductsSuspension Air Spring

Firestone Industrial Actuator Bellows NO. 1M1A-0 With Brass Blind Stud W023583001

Certification
Good quality Industrial Air Spring for sales
Good quality Industrial Air Spring for sales
GUOMAT has many types of air spring and can accurately meet our requirements. You have advantage price and professional service team.

—— Vlad from Russia

The air suspension spring have passed the test and they are fitting for our car model. Through the cooperation we are familiar with each other.

—— Eric from Southeast Asia

Thank you very much for your patience and prompt reply.GUOMAT gives me big help,delivery time is very fast.

—— Peter from European

You have been very professional in your sale,I am trying to expand my work in Italy if you are personally interested in making a profit.

—— Ivan from Italy

I'm Online Chat Now

Firestone Industrial Actuator Bellows NO. 1M1A-0 With Brass Blind Stud W023583001

China Firestone Industrial Actuator Bellows NO. 1M1A-0 With Brass Blind Stud W023583001 supplier
Firestone Industrial Actuator Bellows NO. 1M1A-0 With Brass Blind Stud W023583001 supplier Firestone Industrial Actuator Bellows NO. 1M1A-0 With Brass Blind Stud W023583001 supplier Firestone Industrial Actuator Bellows NO. 1M1A-0 With Brass Blind Stud W023583001 supplier Firestone Industrial Actuator Bellows NO. 1M1A-0 With Brass Blind Stud W023583001 supplier Firestone Industrial Actuator Bellows NO. 1M1A-0 With Brass Blind Stud W023583001 supplier Firestone Industrial Actuator Bellows NO. 1M1A-0 With Brass Blind Stud W023583001 supplier

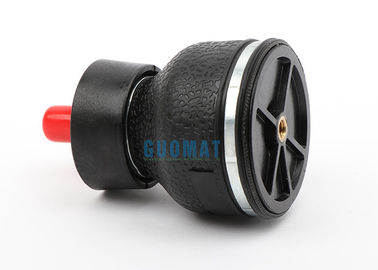

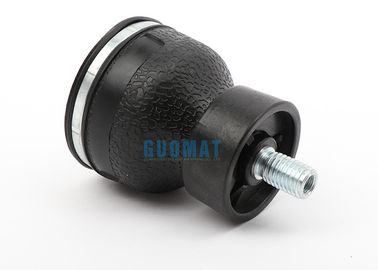

Large Image :  Firestone Industrial Actuator Bellows NO. 1M1A-0 With Brass Blind Stud W023583001

Product Details:

Place of Origin: Guangdong , China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: G3001

Payment & Shipping Terms:

Price: Negotiable
Packaging Details: Strong Carton Box or as Customer's Require
Delivery Time: 2 - 8 Work Days
Payment Terms: T/T, Western Union,Paypal and Others
Supply Ability: 10000 pcs / week
Contact Now
Detailed Product Description
Main Material: Steel Rubber Position: Machine
Net Weight: 0.26 Kg Other Name: Seat AIR Spring
Car Make: Motorcycle Seat Firestone: W02-358-3001
Status: Brand New Spring Type: Gas Filled
Material: 2-Ply Standard Cord Blind Nut: 1/8 NPT, Brass

W023583001 Firestone Industrial Bellows Actuator Bellows NO. 1M1A-0 With Brass Blind Stud



This small air spring can be used on the motorcycle seat, next to the carriage wheel, small machinery, precision instruments, and speakers / audio to reduce vibration and give more comfort.





Cross OEM Of this item:

GUOMAT:G3001
Firestone Rubber bellows NO.:1M1A-0
Firestone NO.:W02-358-3001
Firestone NO.:W023583001
Firestone NO.: W02 358 3001
W02-358-3001, W023583001, W02-358-3001, W023583001


Style 1M1A-0
Two Ply Rubber Bellows
Description Assembly Order No.
Blind nut, 1/8 NPT,
brass stud W02-358-3001
Blind nut, 1/8 NPT,
plastic stud W02-358-3000
Blind nut, 1/8 NPT, brass
stud, stainless steel ring W02-358-3005


Descripition and Specifications Of G3001:


Maximum Diameter @ 100 PSIG (MM) 86.36
Maximum Height (MM) 73.66
Maximum Stroke (MM) 35.56
Minimum Usable Height (MM) 38.1
1 Inch (pounds) 450
Maximum Stroke (pounds) 400
Material 2-Ply Standard Cord
Design Height 63.5
40 psig (pounds) 210
60 psig (pounds) 330
80 psig (pounds) 450
Natural Frequency (@80 psig) (cpm) 220
800 CPM % 91.8
1500 CPM % 97.8



Packing List of G3001 Air Spring :


Description PCS Net Weight Package Weight Gross Weight Length
(cm)
Width
(cm)
Height
(cm)
Measurememt
(cbm)
Air Suspension 1 0.6 kg 0.4 kg 1.0 kg 12 9.2 9.2 0.00102
Shipping Terms By DHL/UPS/FEDEX/TNT/AIRWAY/LCL/FCL or By Sea. It will take about 1 to 4 working days to reach By Express.
Payment Terms T/T, Western Union,Paypal and Others



The function of the air spring suspension system is mainly to eliminate the vibration of the car, improve the ride comfort and ride comfort, which is unmatched by the leaf spring, which is one of the reasons why the air spring can replace the leaf spring. With the progress of the times and the development of the country, the development of China's grade highways and the increase of transportation volume and the improvement of people's living standards all contribute to the stability, smoothness, safety and comfort of the car during driving. The requirements are even higher. Whether in passenger and cargo transportation or in the technical development of commercial vehicles, air spring suspension will represent China's development technology in the future of vehicles. This undoubtedly means that the demand for air spring suspension in China will be explosive growth.


Firestone Industrial Actuator Bellows NO. 1M1A-0 With Brass Blind Stud W023583001
Firestone Industrial Actuator Bellows NO. 1M1A-0 With Brass Blind Stud W023583001Firestone Industrial Actuator Bellows NO. 1M1A-0 With Brass Blind Stud W023583001Firestone Industrial Actuator Bellows NO. 1M1A-0 With Brass Blind Stud W023583001Firestone Industrial Actuator Bellows NO. 1M1A-0 With Brass Blind Stud W023583001Firestone Industrial Actuator Bellows NO. 1M1A-0 With Brass Blind Stud W023583001Firestone Industrial Actuator Bellows NO. 1M1A-0 With Brass Blind Stud W023583001
