Rear Left / Right BMW Air Bag Suspension Parts BMW X5 E70 37126790081

Certification
Good quality Industrial Air Spring for sales
Good quality Industrial Air Spring for sales
GUOMAT has many types of air spring and can accurately meet our requirements. You have advantage price and professional service team.

—— Vlad from Russia

The air suspension spring have passed the test and they are fitting for our car model. Through the cooperation we are familiar with each other.

—— Eric from Southeast Asia

Thank you very much for your patience and prompt reply.GUOMAT gives me big help,delivery time is very fast.

—— Peter from European

You have been very professional in your sale,I am trying to expand my work in Italy if you are personally interested in making a profit.

—— Ivan from Italy

I'm Online Chat Now

Rear Left / Right BMW Air Bag Suspension Parts BMW X5 E70 37126790081

China Rear Left / Right BMW Air Bag Suspension Parts BMW X5 E70 37126790081 supplier
Rear Left / Right BMW Air Bag Suspension Parts BMW X5 E70 37126790081 supplier Rear Left / Right BMW Air Bag Suspension Parts BMW X5 E70 37126790081 supplier Rear Left / Right BMW Air Bag Suspension Parts BMW X5 E70 37126790081 supplier Rear Left / Right BMW Air Bag Suspension Parts BMW X5 E70 37126790081 supplier

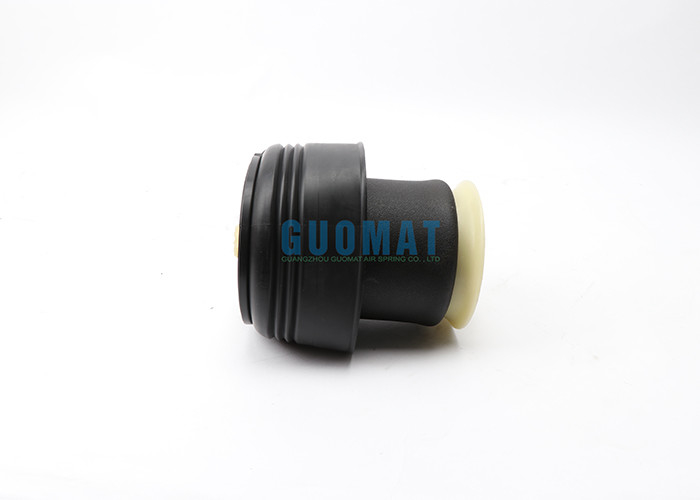

Large Image :  Rear Left / Right BMW Air Bag Suspension Parts BMW X5 E70 37126790081

Product Details:

Place of Origin: Guangdong , China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 37126790081

Payment & Shipping Terms:

Price: Negotiable

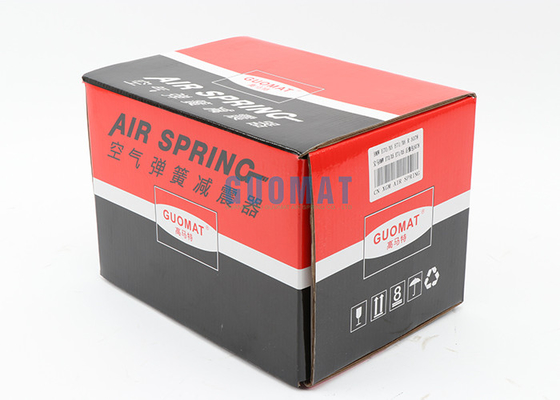

Packaging Details: Strong Carton Box or as Customer's Require
Delivery Time: 2 - 8 Work Days
Payment Terms: T/T, Western Union,Paypal and Others
Supply Ability: 10000 pcs / week
Contact Now
Detailed Product Description
Main Material: Natural Rubber Position: Rear Left / Right
Other Names: Air Suspension Parts Gross Weight: 1.5 Kg
Car Make: BMW OEM: 37126790083 37126774041 37126783419
Model: X5 X6 Platform: E70 E71
Net Weight: 1.15 KG

BMW X5 E70 Air Suspension 37126790081 Rear Left / Right BMW Air Suspension Bags




Specifications



Type Air suspension spring Model NO. 502003
Car make BMW Package Carton/Cartons
Position

Rear Left / Right

Warranty One year
Rubber type Natural rubber Place of origin Guangzhou China(main land)
Manufacturer part NO. 37126790078 ,37126790081 37126790082 , 37126790083 37126774041 ,37126783419 37126783420 ,37126773664 37126776995 Year

2007, 2008, 2009, 2010, 2011, 2012, 2013







Fit for BMW 2007-2013 X5 E70 08-14 X6 E71





Other Interchange OEM:


3712 6790 078 , 37126773664 , 37126774041 , 37126776995 , 37126783419 , 37126783420 , 37126790078 , 37126790079 , 37126790080 , 37126790081 , 37126790082 , 37126790083



37 12 6 790 078 ,37 12 6 790 081 37 12 6 790 082 , 37 12 6 790 083 ,37 12 6 774 041 ,37 12 6 783 419 ,37 12 6 783 420 ,37 12 6 773 664 ,37 12 6 776 995.





Package size and weight:



Net Weight Gross Weight Length
(cm)
Width
(cm)
Height
(cm)
Measurememt
(cbm)
1.15 KG 1.5 KG 40 20 20 0.016





Picking between the two air spring types



Bellow type: A bellow type air spring can be inflated or deflated to suit your desired firmness. Between the two types of air spring, this one offers better load handling capacity because of its larger size. This type is a good choice if you're looking for an air spring which can provide you with an improved lifting capability at lower air pressures. A bellow type air spring is usually used for heavy-duty applications such as trucks and trailers. However, this type may not be suitable for use on car's which can only accommodate smaller-sized suspension mechanisms.

Sleeve type: A sleeve type air spring is designed to have smaller size compared to its bellow counterpart. If you have a vehicle which can't fit something as large as the bellow air spring, then you should go for the sleeve type instead. This doesn't perform well when it comes to heavy loads, though.





Air Suspension



The purpose of air suspension is to provide a smooth, constant quality of ride, but in some cases is used for sports suspension. Modern electronically controlled systems in automobiles and light trucks almost always feature self-level along with raising and lowering functions. Although traditionally called air bags or air bellows, the correct term is air spring (although these terms are also used to describe just the rubber bellows element with its end plates).

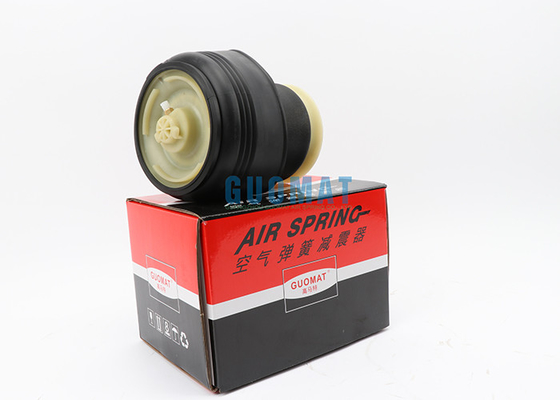

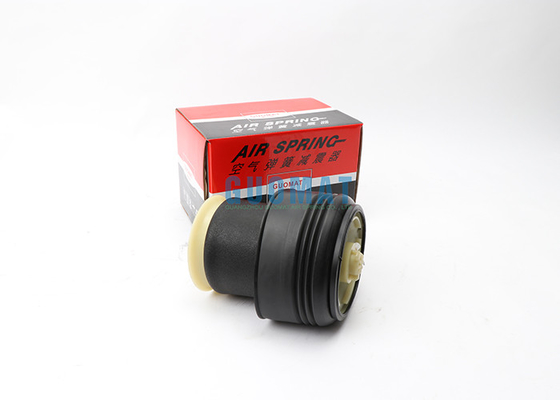

Rear Left / Right BMW Air Bag Suspension Parts BMW X5 E70 37126790081Rear Left / Right BMW Air Bag Suspension Parts BMW X5 E70 37126790081Rear Left / Right BMW Air Bag Suspension Parts BMW X5 E70 37126790081







BMW BMW X5 (E70 / F15) X6 (E71 / F16) 37126790081 rear air bag installation instructions (graphic tutorial)



Proper installation is critical to the experience and enjoyment of the benefits of this system. Please take some time to read these installation instructions before you start installing these components on your vehicle. The disassembly and installation of air suspension products can only be carried out by qualified professionals.


It is also important to note all necessary safety measures when installing a new air suspension system. This includes properly lifting and securing the vehicle and isolating all stored energy to prevent personal injury or property damage.



Rear Left / Right BMW Air Bag Suspension Parts BMW X5 E70 37126790081



WARNING: The air suspension system is under pressure (up to 10 bar, or 150 lbf / in). Before disassembly, verify that the pressure has been released and disconnect the power to the air suspension system. Do not allow dust or grease to enter the system. Always wear standard hand, ear and eye protection when servicing the air suspension system.

General information:


Do not store in an environment below 5°F (-15°C) or above 122°F (50°C).

Avoid damage to air lines and cables.

Disassembly and installation should only be performed by fully qualified personnel.

Use the car manufacturer's diagnostic software.



CAUTION: Failure to work in the manner specified in the instructions or in other order may result in damage to the vehicle and air suspension system.



WARNING: To avoid short circuits when operating electronic components, refer to the user manual to learn how to disconnect the battery.

WARNING: For the correct apex and other maintenance, safety and maintenance instructions on the vehicle, please consult the owner's manual, service manual or car dealer. If there is not enough support, under no circumstances should you do any work under the vehicle, otherwise it may cause serious personal injury or death.



Air spring disassembly


1. Set the steering to straight forward.

2. Raise the vehicle.

3. Remove the rear wheel. (Figure A)

Rear Left / Right BMW Air Bag Suspension Parts BMW X5 E70 37126790081Figure A

4. Remove the fasteners and panels below the right side of the vehicle to expose the vehicle's air suspension valve block. (Figure B)

                                                  Rear Left / Right BMW Air Bag Suspension Parts BMW X5 E70 37126790081

Rear Left / Right BMW Air Bag Suspension Parts BMW X5 E70 37126790081

Rear Left / Right BMW Air Bag Suspension Parts BMW X5 E70 37126790081Figure B



5. Locate the valve block and slowly remove the air line to deflate the air spring. When viewing the valve block, the air hose on the right will deflate the air spring on the right, while the air hose on the left will deflate the air spring on the left. (Figure C)

Rear Left / Right BMW Air Bag Suspension Parts BMW X5 E70 37126790081Figure C



6. Press the two locking tabs and push the bottom piston up and remove the bottom piston from the lower air spring seat. (Figure D, E)

Rear Left / Right BMW Air Bag Suspension Parts BMW X5 E70 37126790081Figure D

Rear Left / Right BMW Air Bag Suspension Parts BMW X5 E70 37126790081Figure E



7. Rotate counterclockwise approximately 90 degrees to remove the top of the air spring. Then pull out the air spring. (Figure F, G)

Rear Left / Right BMW Air Bag Suspension Parts BMW X5 E70 37126790081Figure F

Rear Left / Right BMW Air Bag Suspension Parts BMW X5 E70 37126790081Figure G



8. Remove the air line from the air spring. Remove the air line connector from the air hose and discard. (Figure H, I)

Rear Left / Right BMW Air Bag Suspension Parts BMW X5 E70 37126790081Figure H

Rear Left / Right BMW Air Bag Suspension Parts BMW X5 E70 37126790081Figure I



Air spring installation


WARNING: During installation, tighten all nuts and bolts to the manufacturer's specifications.

WARNING: Do not remove the air fitting from the air spring. Doing so may result in damage and/or invalid warranty. Remove the white shipping pin from the new air fitting and insert the air line until it is fully seated.

1. The installation sequence is the reverse of removing the air spring.

2. Remove the white shipping pin from the new air fitting and insert the air line. Gently pull the air line back to confirm that the air line is fully seated.
