Mercedes - Benz RVs Or Other RVs Have A Modified Air Lift Air Spring Instead Of Steel Springs

Mercedes - Benz RVs Or Other RVs Have A Modified Air Lift Air Spring Instead Of Steel Springs

  • Mercedes - Benz RVs Or Other RVs Have A Modified Air Lift Air Spring Instead Of Steel Springs
  • Mercedes - Benz RVs Or Other RVs Have A Modified Air Lift Air Spring Instead Of Steel Springs
Mercedes - Benz RVs Or Other RVs Have A Modified Air Lift Air Spring Instead Of Steel Springs
Product Details:
Place of Origin: Guangdong , China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 3B10X3
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: Strong Carton Box or as Customer's Require
Delivery Time: 2 - 8 Work Days
Payment Terms: T/T, Western Union,Paypal and Others
Supply Ability: 10000 pcs / week
Contact Now
Detailed Product Description
Main Material: Rubber And Plastic Position: Front And Rear
Assembly Weight: 20 KG OEM: 3B10X3
Rubber Bellows: 10X3 Gross Weight: 22 KG
Packing Size: 45*45*30 Cm
High Light:

rear air suspension

,

rear air springs

Mercedes-Benz RVs or Other RVs Have a Modified Air Lift Air Spring Instead of Steel Springs




Specification:


Product Specs for 3B10X3 Product Specs for GUOMAT 3B10X3
Extended Height:12.80 inches Extended Height:325mm
Compressed Height: 4.30 inches Compressed Height: 109mm
BCR:8.90 inches BCR:226mm
Cap Number:NO Cap Number:NO
Piston Number:NO Piston Number:NO
Extended Length (IN)9.25 inches Extended Length (IN)235mm
Ride Height:7.25 inches Ride Height:184mm
Maximum Diameter:5.70 inches Maximum Diameter:145mm






Project Status



new



Brand new, unused, unopened and undamaged items in original packaging (suitable packaging). The packaging should be the same as that of the retail store. If the item comes directly from the manufacturer, it may be delivered in a non-retail package, such as an unprinted box or plastic bag. See seller's list for details.





About GUOMAT Modified Air Spring :



Detailed instruction manual


GUOMAT products have 1 year warranty and excellent customer support.


As the spring is crushed to an unrecoverable height, the suspension performance of any pickup truck, van or mobile home that is heavy due to heavy objects, permanently fixed equipment or trailers will be affected. The driving quality is reduced, the center of gravity is out of balance, and the front of the vehicle is facing up. Since the lightweight rear end does reduce the weight of the front wheels, the steering grip and brake traction are reduced, so safety is compromised. After enough time, the weighed spring will sag permanently and the effect will be worse. Airlift offers a full range of air-supported springs, compressors, and related parts that reduce the extra weight that the springs cannot withstand, thus restoring proper driving height, stability and comfort while you are driving.



The GUOMAT Air Suspension Kit allows you to personalize all aspects of the air system on your vehicle, so you can choose the right accessories you need without paying for features you do n’t need. Choose a standard air compressor for intermittent use on weekends, or a heavy air compressor for daily / commercial use-both are configured to adjust the left and right springs in pairs or individually. Available air springs can increase the weight of each axle by 1,000 to 5,000 pounds. For ease of installation, all wiring connectors, air lines, and hardware for your make and model installation are included.



GUOMAT introduces air spring rubber airbags, which enables pickups and other transportation vehicles to have stronger load balancing and driving stability. These have been widely recognized and applied in commercial vehicles. After assisting many drivers to achieve victory, they were soon adopted by the entire RV, sedan and other professional racing series. Over the past ten years, GUOMAT has continuously developed innovative and innovative products, including air spring assists and independent air springs for mobile RVs, ambulances and heavy trucks. In the 21st century, the company is leading the way – developing high-performance air springs and complete air suspension systems to achieve extremely low drops in aggressive driving, stunts and higher levels of maneuvering and customer satisfaction, and Its high-quality product range is widely respected throughout the industry

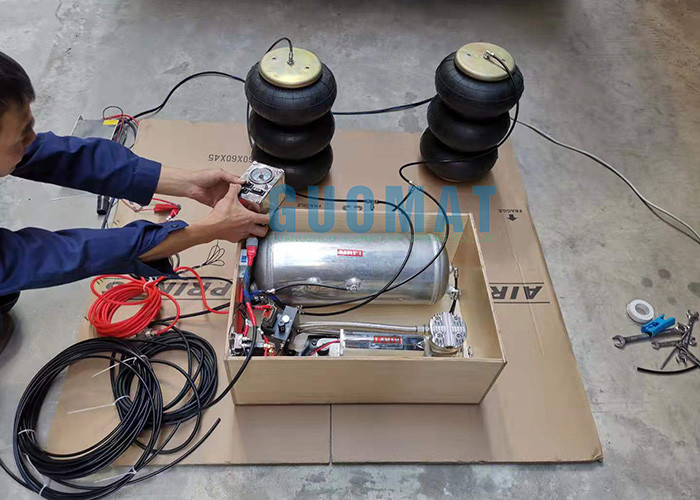

Mercedes - Benz RVs Or Other RVs Have A Modified Air Lift Air Spring Instead Of Steel Springs 0

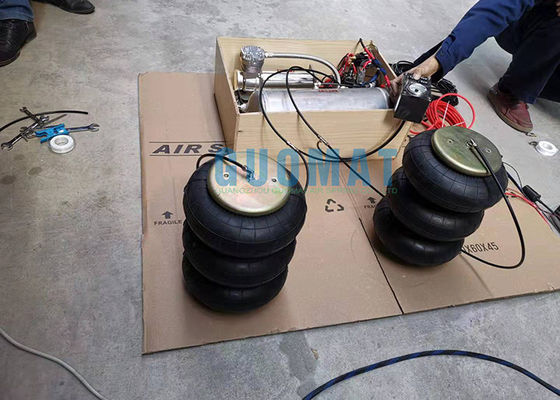

Mercedes - Benz RVs Or Other RVs Have A Modified Air Lift Air Spring Instead Of Steel Springs 1
