| Place of Origin: | Guangdong , China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | G4001 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Strong Carton Box or as Customer's Require |
| Delivery Time: | 2 - 8 Work Days |
| Payment Terms: | T/T, Western Union,Paypal and Others |
| Supply Ability: | 10000 pcs / week |
| Main Material: | Steel Rubber | Position: | Seat |
|---|---|---|---|
| Net Weight: | 0.48 Kg | Other Name: | AIR Spring Bags |
| Car Make: | Motorcycle Seat | OEM 2: | W02-358-4001 |
| Status: | Brand New | Spring Type: | Gas Filled |
| Material: | 2-Ply Standard Cord | ||
| High Light: | car air springs,rear air suspension |
||
Reversible Sleeve Air Spring W02-358-4001 Style 4001 Blind nuts, 1/8 NPT
Cross OEM Of this item:
GUOMAT:G4001
Firestone Rubber bellows NO.:4001
Firestone NO.:W02-358-4001
Firestone NO.:W02 358 4001
Firestone NO.: W023584001
Style: 4001
Two Ply Rubber Bellows

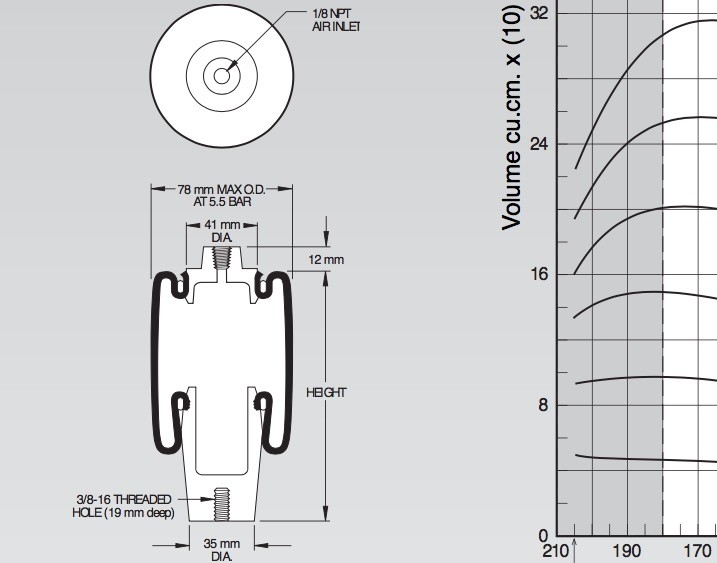

Descripition and Specifications Of G3000:
| G3000 Technical Parameters | |
| Top Cover Plate Diameter | 41 mm |
| Bottom Cover Plate Diameter | 35 mm |
| Screw Center Distance | 0 mm |
| Distance Gas Hole Between Nut | together |
| Gas Hole | 1/8 NPT |
| Screw (Nut) Tooth | 3/8-16 THREADED HOLE (19 mm deep) |
| Rubber Bellows MAX Diameter | 78 mm |
| The Stroke | 92-205 mm |
Style 4001
Air connection: 1/8 NPT
Assembly - threaded hole: 1 x M8
Pin internal thread: 3/8 - 16 (19 mm deep)
Pin diameter: 35 mm
Diameter holder: 41 mm
max diameter at 5.5 bar: 78 mm
min height: 92 mm
max height: 205 mm
max stroke: 113 mm
Max force: 1.55 kN at a height of 100 mm
GUOMAT air spring solemn commitment to the customer:
1, we don't spell at a low price, we only make quality products.
2, the same price on the market of air spring, we must be the best quality.
3, the same quality of air spring on the market, we must be the best price.
4, different regions, the same price of air spring there will be a slight difference, because of considering the freight after wait for a reason.
5, GUOMAT air spring not profiteering, only genuine, solid products.
6, all customers for the product quality problems need to be replaced, we have to change.
Packing List of G3000 Air Spring :
| Description | PCS | Net Weight | Package Weight | Gross Weight | Length (cm) | Width (cm) | Height (cm) | Measurememt (cbm) |
| Air Suspension | 1 | 0.6 kg | 0.4 kg | 1.0 kg | 12 | 9.2 | 9.2 | 0.00102 |
| Shipping Terms | By DHL/UPS/FEDEX/TNT/AIRWAY/LCL/FCL or By Sea. It will take about 1 to 4 working days to reach By Express. | |||||||
| Payment Terms | T/T, Western Union,Paypal and Others | |||||||
