| Place of Origin: | Guangdong , China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | G7002 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Strong Carton Box or as Customer's Require |
| Delivery Time: | 2 - 8 Work Days |
| Payment Terms: | T/T, Western Union,Paypal and Others |
| Supply Ability: | 10000 pcs / week |
| Main Material: | Plastic Rubber | Position: | Seat |
|---|---|---|---|
| Net Weight: | 0.8 Kg | Other Name: | AIR Spring Bags |
| Car Make: | Motorcycle Seat | OEM 2: | W02-358-7002 |
| Status: | Brand New | Spring Type: | Gas Filled |
| Material: | 2-Ply Standard Cord | ||
| High Light: | car air springs,rear air suspension |
||
Suspension Air Spring W02-358-7002 Firestone Adjustable Air Springs
Cross OEM Of this item:
GUOMAT:G7002
Firestone Rubber bellows NO.:7002
Firestone NO.:W02-358-7002
Firestone NO.:W02 358 7002
Firestone NO.: W023587002
Style: 4001
Two Ply Rubber Bellows

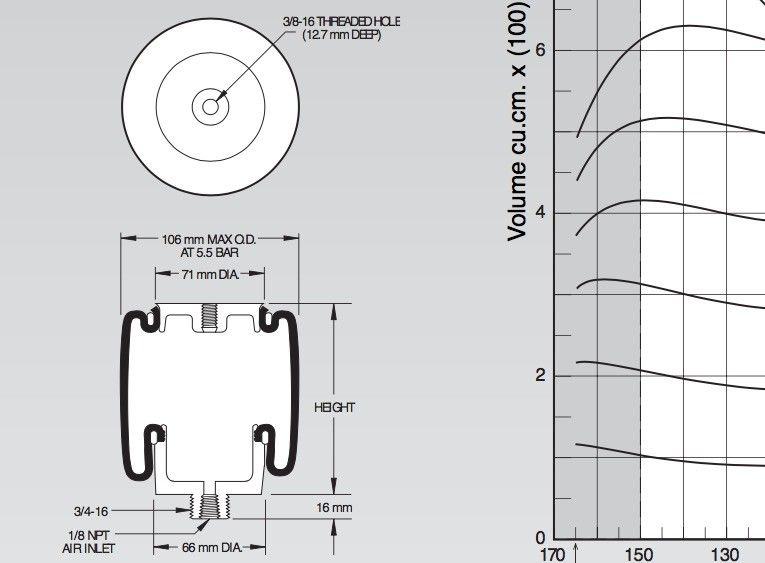

Descripition and Specifications Of G7002:
| Maximum Diameter @ 100 PSIG (inches) | 4.2 | Design Height | 4.5 |
| Maximum Height (inches) | 6 | Load (at Design Height) at: 40 psig (pounds) | 310 |
| Maximum Stroke (inches) | 2.5 | Load (at Design Height) at: 60 psig (pounds) | 480 |
| Minimum Usable Height (inches) | 3.5 | Load (at Design Height) at: 80 psig (pounds) | 650 |
| Force @ 80PSI at Stroke of 1 Inch (pounds) | 710 | Natural Frequency (@80 psig) (cpm) | 114 |
| Force @ 80PSI at Stroke of 3 Inch (pounds) | 660 | % of Isolation at Forced Frequency 400 CPM | 91.2 |
| Force @ 80PSI at Stroke of Maximum Stroke (pounds) | 660 | % of Isolation at Forced Frequency 800 CPM | 97.2 |
| Material | 2-Ply Standard Cord | % of Isolation at Forced Frequency 1500 CPM | 99.4 |
GUOMAT air spring solemn commitment to the customer:
1, we don't spell at a low price, we only make quality products.
2, the same price on the market of air spring, we must be the best quality.
3, the same quality of air spring on the market, we must be the best price.
4, different regions, the same price of air spring there will be a slight difference, because of considering the freight after wait for a reason.
5, GUOMAT air spring not profiteering, only genuine, solid products.
6, all customers for the product quality problems need to be replaced, we have to change.
Packing List of G3000 Air Spring :
| Description | PCS | Net Weight | Package Weight | Gross Weight | Length (cm) |
Width (cm) |
Height (cm) |
Measurememt (cbm) |
| Air Suspension | 1 | 0.82 kg | 0.4 kg | 1.22 kg | 12 | 9.2 | 9.2 | 0.00102 |
| Shipping Terms | By DHL/UPS/FEDEX/TNT/AIRWAY/LCL/FCL or By Sea. It will take about 1 to 4 working days to reach By Express. | |||||||
| Payment Terms | T/T, Western Union,Paypal and Others | |||||||
