|Material:||Steel Cover Plate , Rubber Bellows||Pressure Ability:||0.2-0.8 MPa|
|Package Size:||80*60*50 Cm||G.W.:||100KG|

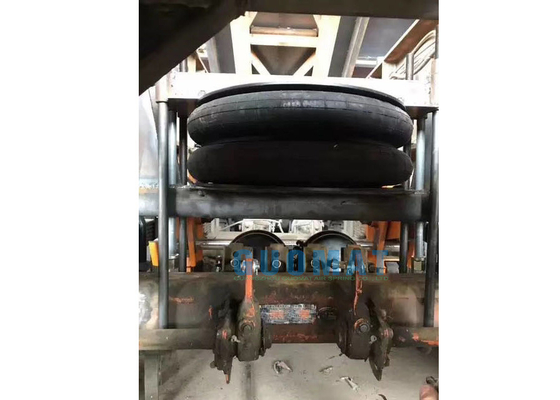

Center Air Suspension For trailer flatbed Can Life About 60-70MM Reduce tire wear

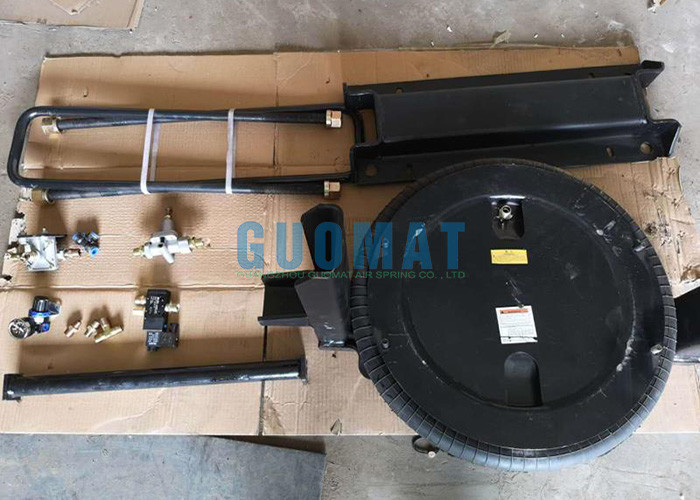

GUOMAT G-02 Specifications and Detail Technical Parameters

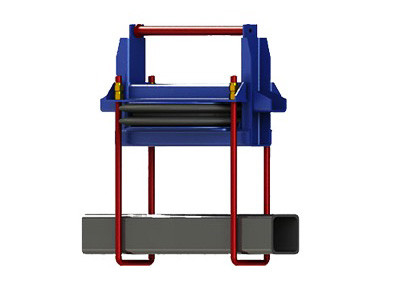

Center suspension G-02
Main customer group: trailer flatbed
1. Customers with very good road conditions, such as dock transfer container flatbed semi-trailers, are transported all day, and the road conditions are relatively good. Half way back and forth is empty cars. When returning, the unused axles can be raised by 5-7CM, saving fuel. To reduce the loss, you can also install two sets of front and rear axles at the same time, which does not affect the normal operation of the empty car. Sometimes a standard axle can be used to lift a rear axle to achieve the required effect.
2. For customers with many corners on the mountain road, many times the front axle is not used, but the tires are rubbed, which affects the tire life and fuel consumption. At this time, installing the center suspension can lift the front axle. Driving on mountain roads and bumps can greatly avoid tire friction , Reduce fuel consumption, according to our customers' long-term feedback on the use of this product, 4-6 months can save four tires on the front axle, fuel consumption than the five months before the conversion saved 2,000 yuan in fuel costs.
Because the installation of this product does not need to modify the original vehicle axle device, it is directly installed, which is not a modification. It can be reviewed regularly and meets national requirements.
The theoretical lift is 60-70MM; if the later installed vehicles need to be lifted higher, three of the ten leaf springs can be removed, and the height can be increased to 10MM

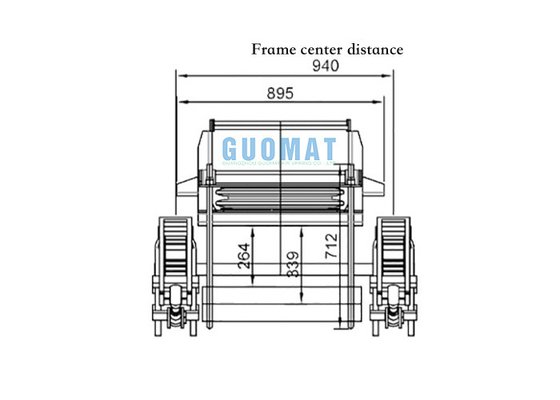

1. This picture shows the frame center question [940, ordinary American suspension, axle
1310 models with front axle mechanical suspension lift
2. This lifting device is only for no-load lifting in principle, 1 theoretical lifting
The height is 60 70 mM, if you need to re-educate or raise the height, there are other requirements
Requirements, corresponding changes should be made in the mechanical suspension and spring steel plate
3. Wood lifting device for steel plate problems caused by frequent use of L condition
4. Confirm the center of the axle 61 cm after the front of the pedestal bracket, and
The mounting plate is placed under the center lifting ears, and
The side is closely attached to the frame vertical plate, and the front and rear margins-caused
5. ▲ Special Tips ▲ Perform welding positioning as shown in the figure.
Welding and positioning of the frame stand plate, and lifting ears and positioning plate
For welding positioning, do not weld laterally under the frame
6. After the airbag is fixed and tightened the bolts, please tighten the limit drawing bolts, and
Install the bolt on the lifting beam as shown in the figure, and tighten the release cap
7.0-type bolt 'j axle has about 200 margins to ensure axle upturn
Does not cause crush damage to the lifting device during bumpy road conditions
