| Place of Origin: | Guangdong,China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | GFF050-GFF065 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Steel Cover Plate , Rubber Bellows | Pressure Ability: | 0.2-0.8 MPa |
|---|---|---|---|
| GUOMAT: | GFF050-GFF065 | GUOMAT NO.: | 2B6160 |
| Package Size: | 80*60*50 Cm | G.W.: | 200KG |
| N.W.: | 180KG | ||
| High Light: | car air springs,rear air suspension |
||

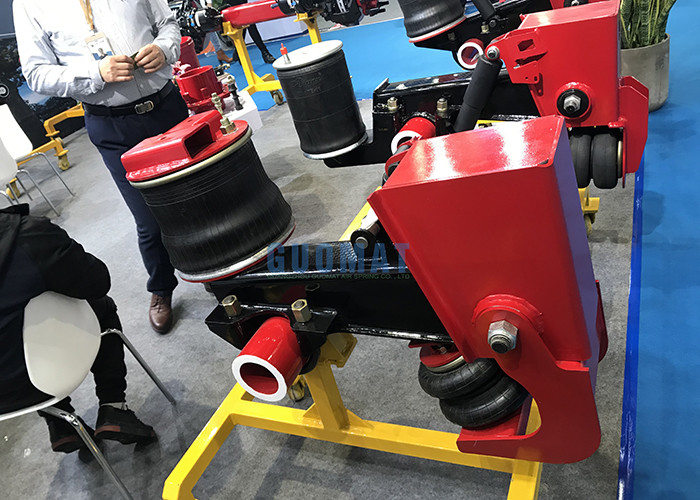

Highway Bus Suspension GFF050-GFF065 Matched with the North Ben Bridge Bridge Steyr
GUOMAT GFF050-GFF065 Specifications and Detail Technical Parameters
1,suspension GFF050-GFF065
The four-link-oriented institutions, large span airbags, non-independent air suspension system, matched with the North Ben Bridge Bridge Steyr, Dongfeng Bridge and Xiang Bridge, Fang Sheng Bridge front axle.
2,suspension GFL050-GFL065
Single arm-oriented institutions, large span airbags, full air suspension system, and the North Pennines bridge, Steyr Bridge, Dongfeng Bridge and Xiang Bridge, Fang Sheng Bridge front axle match.
3,suspension GCU100-GCU130
The overall V-shaped thrust rod four-bar linkage-oriented institutions, large span four airbags, four shock absorbers, air suspension system can be Ben and Xiang Bridge, Fang Sheng Bridge, Meritor Bridge, North Bridge match.
4,suspension GCW100-GCW130
The four-link-oriented institutions, large span airbags, four shock absorbers, full air suspension system, applicable to a variety of axle, Meritor axles, Xiangfan axle, Liuzhou Fang Sheng axles and other.
Technical parameters
| Model | GFF050-GFF065/GFL050-GFL065 Front Air Suspension System |
GCU100-GCU130/GCW100-GCW130 Rear air suspension system |
| Type | Large-span two-airbag single-arm, non-independent front air suspension structure, equipped with two-way hydraulic shock absorber, stabilizer bar, high transmission | Four airbags, large-span flat-welded C-beams, wide-angle split V-thrust rod or integral V-thrust rod drive bridge air suspension structure of four-bar linkage structure |
| Rated shaft load | 5000-6500kg | 10000-13000kg |
| Frame width | 861.940mm | 861.940mm |
| Design axle load | 5000-7000kg | 10000-14000kg |
| Tread | 1980-2020mm | 1800-1860mm |
| Airbag installation height | 255-265mm | 255-265mm |
| Axle action process | 180mm(upwards:90mm,downwards:90mm) | 180mm(upwards:90mm,downwards:90mm) |
| Airbags span | 1200-1300mm | 1500mm |
| The system is biased | 1.15-1.3Hz | 1.15-1.3Hz |
