Place of Origin: | Guangdong,China |
Brand Name: | GUOMAT |
Certification: | ISO/TS16949:2009 |
Model Number: | GFL030-GFL045 |
Minimum Order Quantity: | Negotiable |
---|---|
Price: | Negotiable |
Packaging Details: | strong carton box or as customers need |
Delivery Time: | 2-8 work days |
Payment Terms: | T/T, Western Union,Paypal or Others |
Supply Ability: | 1000pcs/week |
Material: | Steel Cover Plate , Rubber Bellows | Pressure Ability: | 0.2-0.8 MPa |
---|---|---|---|
GUOMAT: | GFL030-GFL045 | GUOMAT NO.: | 2B6160 |
Package Size: | 120*100*100 Cm | G.W.: | 250KG |
N.W.: | 230KG | ||
High Light: | car air springs,rear air suspension |
GFL030-GFL045 Highway Bus Suspension Matched the Public Security, Lake Bridge, Dongfeng bridge, Xiang Bridge Front Axle
GUOMAT GFF050-GFF065 Specifications and Detail Technical Parameters

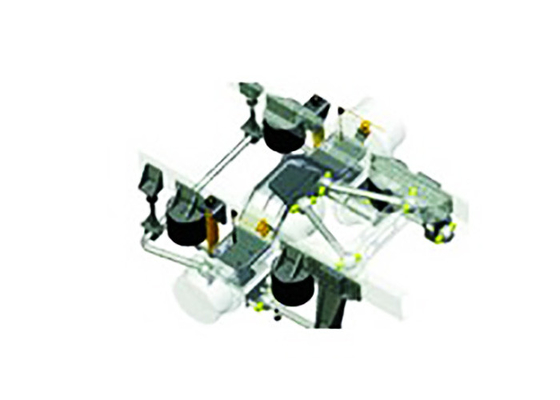

1,suspension GFL030-GFL045
Span two air spring bags single-arm independent front air suspension system; match with the public security, Lake Bridge, Dongfeng bridge, Xiang Bridge front axle.

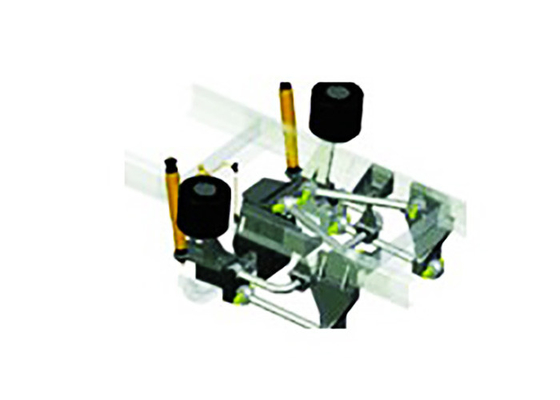

2,suspension GFW030-GFW045
(V-shaped arm) four-bar linkage-oriented institutions, large span air spring bags, air suspension system; and public security, Bridge Lake, Dongfeng Bridge and Xiang Bridge Bridge match.

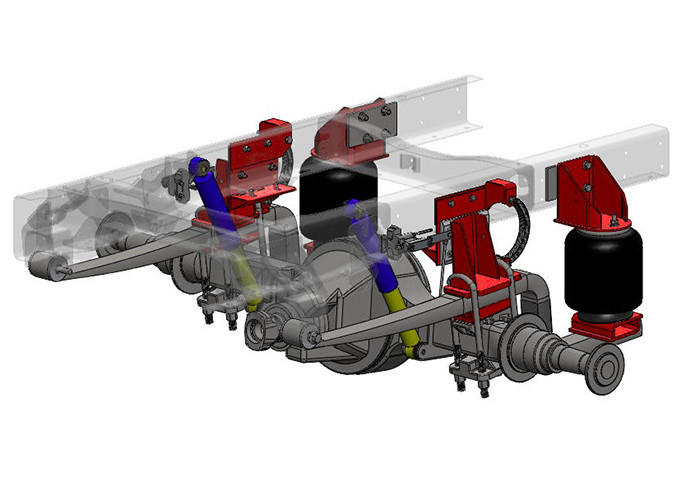

3,suspension GBW050-GBW090
4 Air Spring non-independent H-arm 4-link rear axle air suspension system; match with public security, Lake Bridge, Dongfeng bridge, Xiang bridges, red welding or casting rear axle.

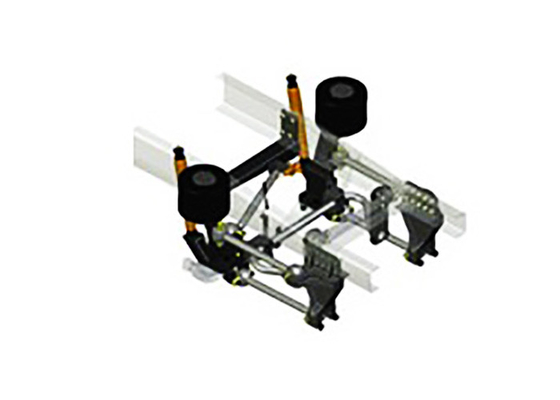

4,suspension GRL050-GRL090
2 air spring bags, single-arm oriented institutions, composite air suspension system; match with the public security, Lake Bridge, Dongfeng bridge, the Xiang bridges, red welding or casting after the bridge.
Technical parameters
Model |
GFL030-GFL045/ GFW030-GFW045 Front Air Suspension System |
GBW050-GBW090/ GRL050-GRL090 Rear air suspension system |
Rated shaft load | 3000-4500kg | 5000-9000kg |
Frame width | 820,840,861mm | 820,840,861mm |
Design axle load | 3000-5000kg | 5000-10000kg |
Tread | 1835-2020mm | 1670-1800mm |
Airbag installation height | 255-265mm | 255-265mm |
Axle action process | 180mm(upwards:90mm,downwards:90mm) | 180mm(upwards:90mm,downwards:90mm) |
Airbags span | 1160-1300mm | 880-930mm |
The system is biased | 1.15-1.3Hz | 1.15-1.3Hz |
