Gantry Front Suspension System Hungarian RABA Gantry Bridge GFN075

China Gantry Front Suspension System Hungarian RABA Gantry Bridge GFN075 supplier
Gantry Front Suspension System Hungarian RABA Gantry Bridge GFN075 supplier Gantry Front Suspension System Hungarian RABA Gantry Bridge GFN075 supplier Gantry Front Suspension System Hungarian RABA Gantry Bridge GFN075 supplier Gantry Front Suspension System Hungarian RABA Gantry Bridge GFN075 supplier Gantry Front Suspension System Hungarian RABA Gantry Bridge GFN075 supplier

Large Image :  Gantry Front Suspension System Hungarian RABA Gantry Bridge GFN075

Product Details:

Place of Origin: Guangdong,China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: GFN075

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Steel Cover Plate , Rubber Bellows Pressure Ability: 0.2-0.8 MPa
GUOMAT: GFN075 GUOMAT NO.: 1T6364
Package Size: 120*100*100 Cm G.W.: 250KG
N.W.: 230KG

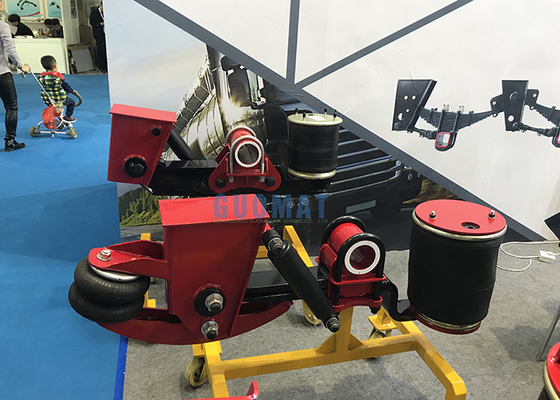

Gantry Front Suspension System Hungarian RABA Gantry Bridge GFN075





GUOMATGFN075 Specifications and Detail Technical Parameters

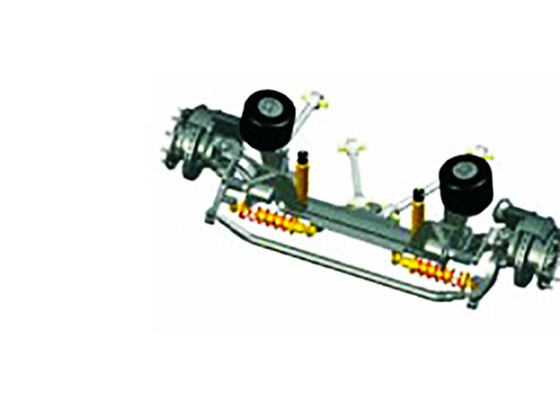

1,suspension GFN075

Gantry Front Suspension System
Model:GFN075
Four-link brake bridge in front of air suspension system; introduction of Hungarian RABA gantry bridge to introduce disc brakes. The price is 30% -40% lower than imported similar products, which not only saves costs, but also brings you comfort.

Gantry Front Suspension System Hungarian RABA Gantry Bridge GFN075

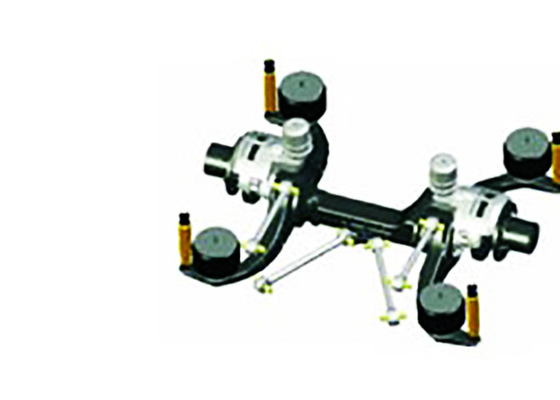

2,suspension GCN130

Air suspension system in the gantry bridge
Model:GCN130
Four-bar linkage, large span four air springs, four shock absorbers, low floor, all-air suspension system, the introduction of Hungarian ABA technology, imported disc brakes, imported main reduction and differential, lower prices have advantages Save 30% -40% than imported similar products

Gantry Front Suspension System Hungarian RABA Gantry Bridge GFN075

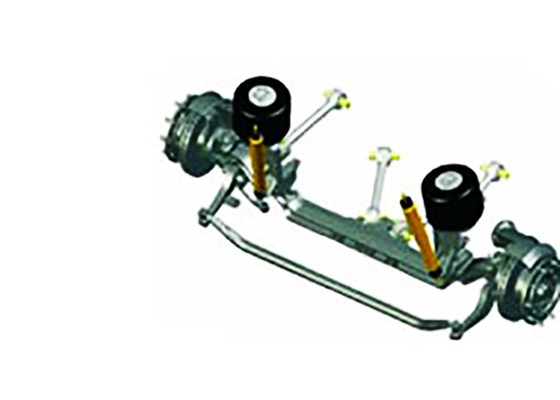

3,suspension GRN075

With the moving bridge air suspension system
Model:GRN075
Four-link mechanism, large-span airbag air spring, air suspension system driving the axle, steering booster, automatic reversing lock, high-speed automatic lock function



Gantry Front Suspension System Hungarian RABA Gantry Bridge GFN075







Technical parameters





Model AFN075 Gantry bridge before the air suspension system ACN130 Air suspension system in the gantry bridge ARN075 With the moving bridge air suspension system
Rated shaft load 7500kg 13000kg 7500kg
Frame width 940mm(Channel width can be achieved 720-780mm) 940mm 940mm(Channel width can be achieved 780mm)
Tread 1980-2020mm 1800-1860mm 1980-2020mm
Axle dynamic travel 160mm(upwards:80mm,downwards:80mm) 190mm(upwards:90mm,downwards:100mm) 160mm(upwards:80mm,downwards:80mm)
Airbags span 1200-1300mm 1500mm 1200-1300mm
The system is biased 1.15-1.3Hz 1.15-1.3Hz 1.15-1.3Hz

Gantry Front Suspension System Hungarian RABA Gantry Bridge GFN075

Gantry Front Suspension System Hungarian RABA Gantry Bridge GFN075
