| Place of Origin: | Guangdong,China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | GRL115-GRL130 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Steel Cover Plate , Rubber Bellows | Pressure Ability: | 0.2-0.8 MPa |
|---|---|---|---|
| GUOMAT: | GRL115-GRL130 | GUOMAT NO.: | 1T881 |
| Package Size: | 150*120*120 Cm | G.W.: | 300KG |
| N.W.: | 270KG | ||
| High Light: | car air springs,rear air suspension |
||
Light Weight Structure Suspension System Fits for HOWO Bridge, 485 Bridge, 457 Bridgematch
Specifications and Detail Technical Parameters
1,suspension GRL115-GRL130
| GRL115-GRL130 |
| Lightweight structure, small piece of fourth oval leaf spring, two air springs, composite air suspension: 6x4 double drive bridge 4x2 double drive bridge, trial use with HOWO bridge, 485 bridge, 457 Bridge |

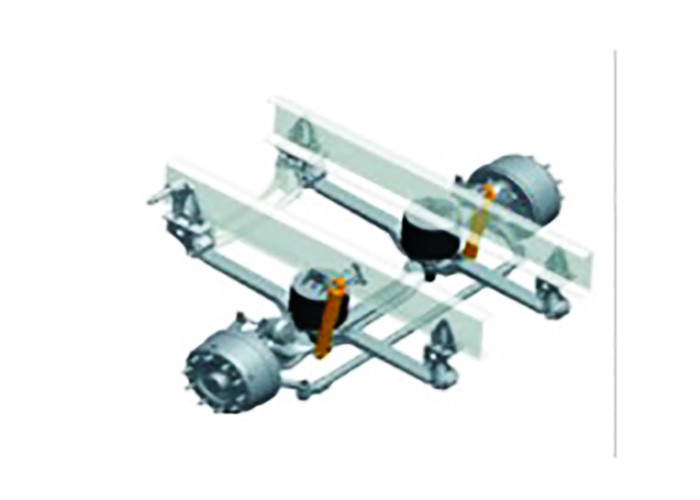

2,suspension GFH065
| GFH065 |
| Semi-ellipsoidal asymmetrical minus leaf spring, two air springs, single tire, suitable for composite air suspension systems and axles |

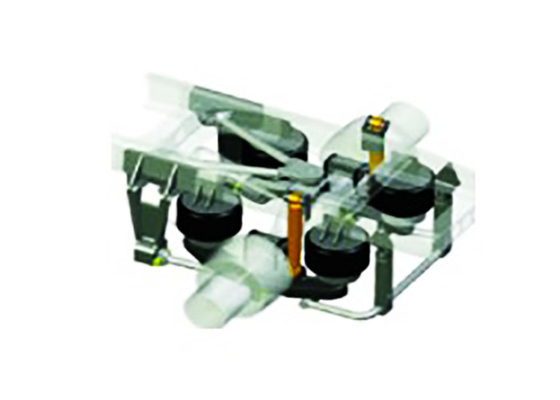

3,suspension GBU115-GBU130
Four-link mechanism, four air springs, full air suspension system; 4x2 single drive bridge; matches Steyr bridge, HOWO bridge, 485 bridge, 457 bridge.

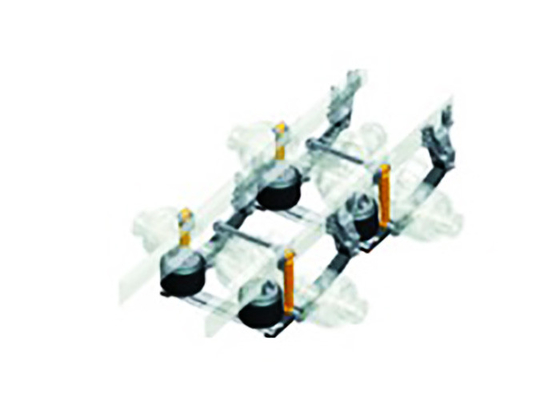

4,suspension GBU230-GBU260
| GBU230-GBU260 |
| Four-link mechanism, eight air springs, full air suspension system; 6x4 double drive bridge; suitable for Steyr bridge, HOWO bridge, 485 bridge, 457 bridge. |
Technical parameters
| Model | GRL115-GRL130 | GFH065 | GBU115-GBU130 | GBU230-GBU260 |
| Frame width(mm) | 760-850 | 850 | 760-850 | 760-850 |
| Rear axle models |
HOWO Bridge, 485 Bridge, 457 bridge |
GUOMAT dedicated |
Steyr bridge, HOWO Bridge 485 Bridge, 457 Bridge |
Steyr bridge, HOWO Bridge 485 Bridge, 457 Bridge |
| Bracket distance(mm) | 1010 | 850 | 960 | 960 |
| Wheelbase(mm) | 1860 | 2025 | 1850 | 1850 |
|
Plane distance of the wheel center to the frame under (mm) |
200-270 | 270 | 200-260 | 200-260 |
| Airbag installed length(mm) | 320-360 | 290 | 250-290 | 250-290 |
| Shock absorber length(mm) | 550 | 570 | 560 | 560 |
| Design axial load masskg) | 20000-30000 | 5000-7000 | 10000-15000 | 20000-30000 |
| Axle stroke(mm) | 160 | 225 | 210 | 210 |
| Tire specifications | 12.00R20 | 12.00R20 | 12.00R20 | 12.00R20 |
| Airbag specifications |
3011K2461205 (GUOMAT dedicated) |
769N | 715N/762N | 715N/762N |
