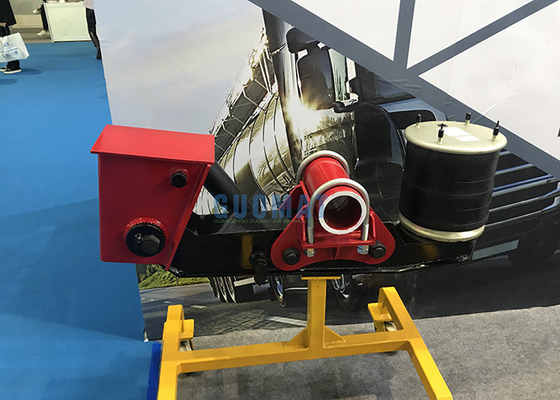

Independent Suspension Double A-arm Structure with High Rigidity, Wide Air Spring Span Applicable Axle Load 3-4.5t Models
Specifications and Detail Technical Parameters

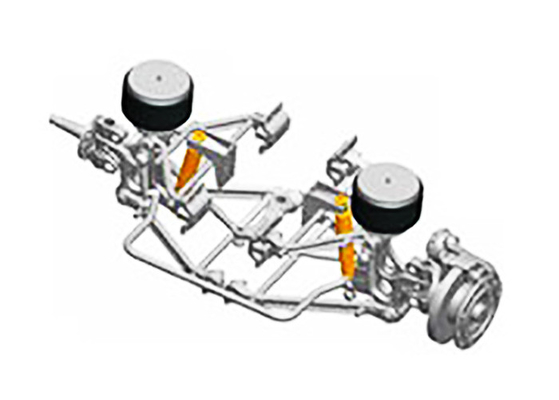

1,suspension Model:GFD045
Independent Suspension Double A-arm Structure with High Rigidity, Wide Air Spring Span Applicable Axle Load 3-4.5t Models
Double A-arm structure with high rigidity, wide air spring span, low unsprung mass, precision motion mechanism, three-stage steering mechanism, corner of big wheel disc brake ABS auxiliary braking system;
Anti-roll, anti-braking nod, stronger, more comfortable;
Modularity: The bridge, brake, steering system and air suspension are highly integrated, without customer packaging, adjustment, applicable axle load is 3-4.5t models;
Can be universally used to match buses and station wagons. The suspension is suitable for aisle width 650-820mm. 2500mm floor aisle is 820mm
Equivalent: The price of a non-independent suspension of trading, enjoyed by seniors.

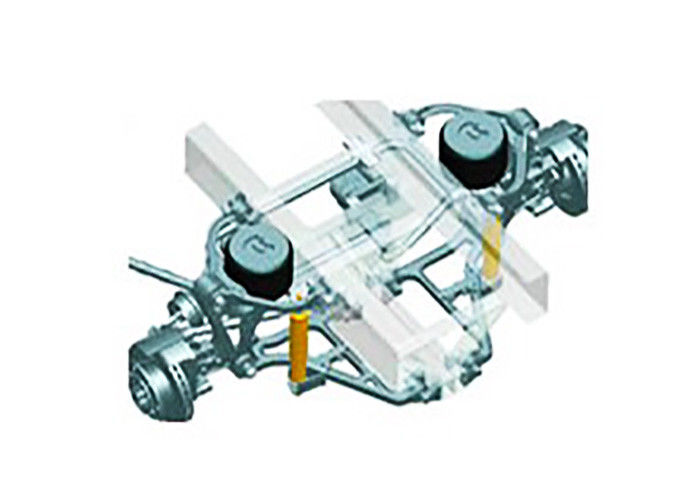

2,suspension Model: GFD065
Double A-arm structure, high strength, large air spring span, low unsprung mass, design precision motion mechanism, two-stage steering mechanism, large wheel disc angle brake ABS auxiliary braking system;
Anti-roll, anti-braking nod, stronger, more comfortable;
Bridges, brakes, steering systems and highly integrated air suspensions, without the need for customer assembly and adjustment, are suitable for models with an axle weight of 6.5t;
Equivalent: price of non-independent suspension of trading
Technical parameters
| Model |
GFD045 |
GFD065 |
| Type |
Double A-arm structure, high rigidity, large air spring span, low suspension spring weight, precision motion mechanism, three-stage steering mechanism, wheel angle, disc brake ABS auxiliary braking system |
High-strength double A-arm structure, ultra-wide air spring span, light total suspension weight, precision motion mechanism, two-stage steering mechanism, corner of large wheel disc brake ABS auxiliary braking system |
| Suspension height |
250mm |
265mm |
| Allow maximum axle load mass |
4500kg |
6500kg |
| Axle dynamic travel |
180mm(Up90mm,Down90mm) |
190mm(Up90mm,Down100mm) |
| Shock absorber height |
496mm |
484mm |
| Airbag specifications |
WO10950204 |
WO10950087 |
| Airbags span |
1094mm |
1266mm |
| The rim mounting surface distance |
2276mm |
2385mm |
| Tire specifications |
265/70R19.5等 |
295/80R22.5 |
| Inside and outside the rotation angle |
48°/40° |
52°/48° |
| Positional parameters of the front axle |
Kingpin:Backward 2.5 ° ± 0.3 °
Introversion 8 ° ± 0.3 °
Wheel toe 0-2mm Wheel camber of 1 ° ± 0.5 ° |
Kingpin:Backward 2.5 ° ± 0.3 °
Introverted 6 ° ± 0.3 °
Wheel toe 0-2mm wheel camber0.5 ° ± 1 ° |
| the total weight of Suspension |
410kg |
940kg |
